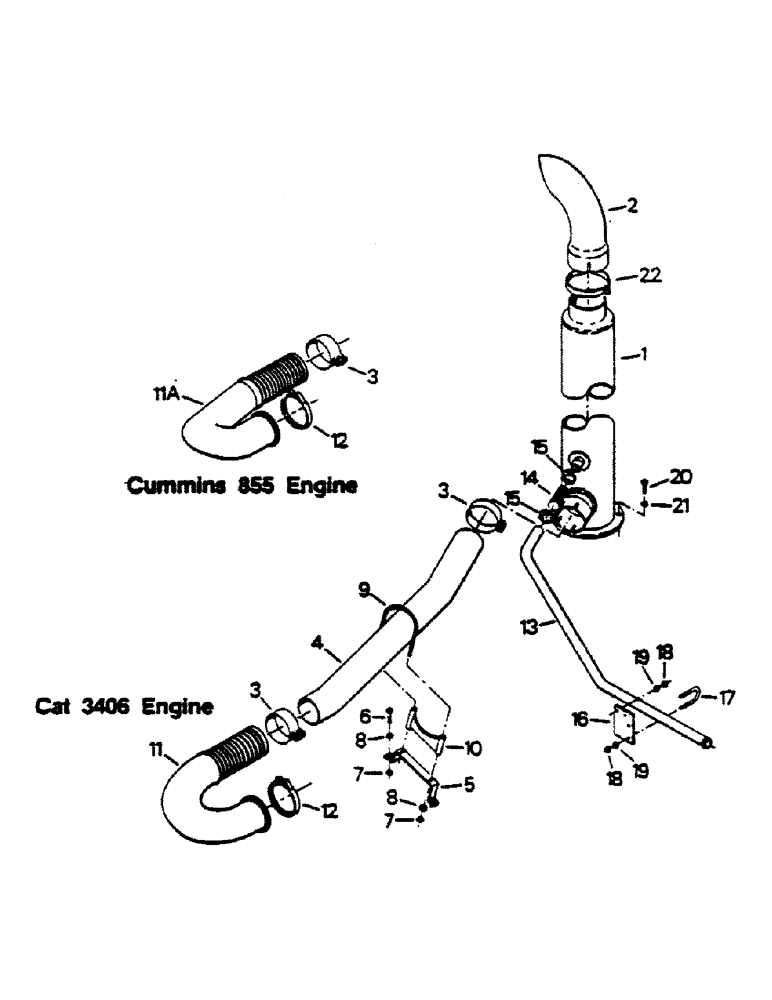

Запчасти Case IH 9170 (04-12) - EXHAUST SYSTEM (04) - Drive Train

1

90-2914T2

MUFFLER

1шт.

2

45-255

MUFFLER

EXHAUST STACK

1шт.

3

31-1061

MOUNTING CLIP

CLAMP

2шт.

4

90-2909T1

TUBE,5 mm OD x 46.44, 11.81 mm L

1шт.

5

90-352T1

SUPPORT

1шт.

6

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

2шт.

7

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

4шт.

8

19-224

WASHER,3/8", SAE

3/8

4шт.

9

32-322

U-BOLT,3/8" - 16 x 6.62"

1шт.

10

32-323

STIRRUP

SADDLE

1шт.

11

90-5775T1

EXHAUST SYSTEM PIPE

EXHAUST TUBE (Cat 3406 engine)

1шт.

11a

90-2912T1

TUBE,12.75, 6.62 mm L

EXHAUST TUBE (Cummins 855 engine)

1шт.

Ref. #11a 90-2912T1. See parts info notes on this part.

1шт.

12

31-1316

MOUNTING CLIP

CLAMP

1шт.

13

90-2921T1

TUBE,2 mm OD

ASPIRATOR TUBE

1шт.

14

31-2410

HOSE,4.00"

; Order 01-4568T1, and Cut to Required Length 4.00"

1шт.

15

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

2шт.

16

90-2943T1

SUPPORT

1шт.

17

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

18

19-508

LOCK NUT

LOCK NUT, 5/16 UNC G-B

4шт.

19

19-106

WASHER,5/16", SAE

5/16

4шт.

20

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

3шт.

21

19-117

LOCK WASHER,3/8"

3/8"

3шт.

22

32-341

CLAMP

1шт.
