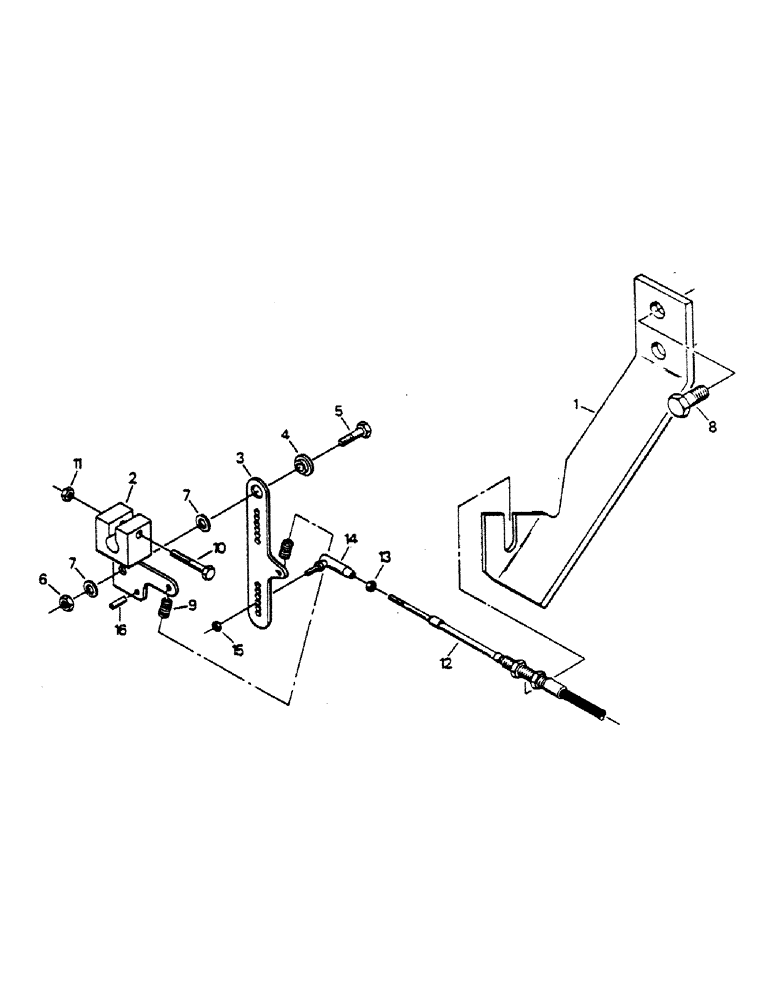

Запчасти Case IH 9170 (04-09) - ENGINE THROTTLE CONTROLS, CUMMINS 855 ENGINE (04) - Drive Train

1

90-5920T1

BRACKET

1шт.

2

2-3096T1

LARGE PLATE

PIVOT

1шт.

3

90-3955T1

LEVER

THROTTLE LEVER

1шт.

4

2-2386T2

BUSHING

1шт.

5

19-723

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 7/8 G-5

1шт.

6

231-1445

NUT,5/16"-18, GB

5/16 UNC G-A

1шт.

7

19-106

WASHER,5/16", SAE

5/16

2шт.

8

19-683

BOLT,Hex, 9/16" - 18 x 1", Gr 5, Full Thd

CAPSCREW, 9/16 UNF x G-5

2шт.

9

11-16

SPRING

1шт.

10

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 UNC x 1/2 G-5

1шт.

11

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC G-A

1шт.

12

60-2840T1

CABLE

THROTTLE CABLE

1шт.

13

19-308

NUT,#10 - 32

#10 UNF G-B

1шт.

14

6-1431

BALL JOINT

1шт.

15

9411893

LOCK NUT,#10-32, GB

#10 UNF G-A

1шт.

16

19-5368

PIN,1/4" x 1/2", Coiled

1шт.
