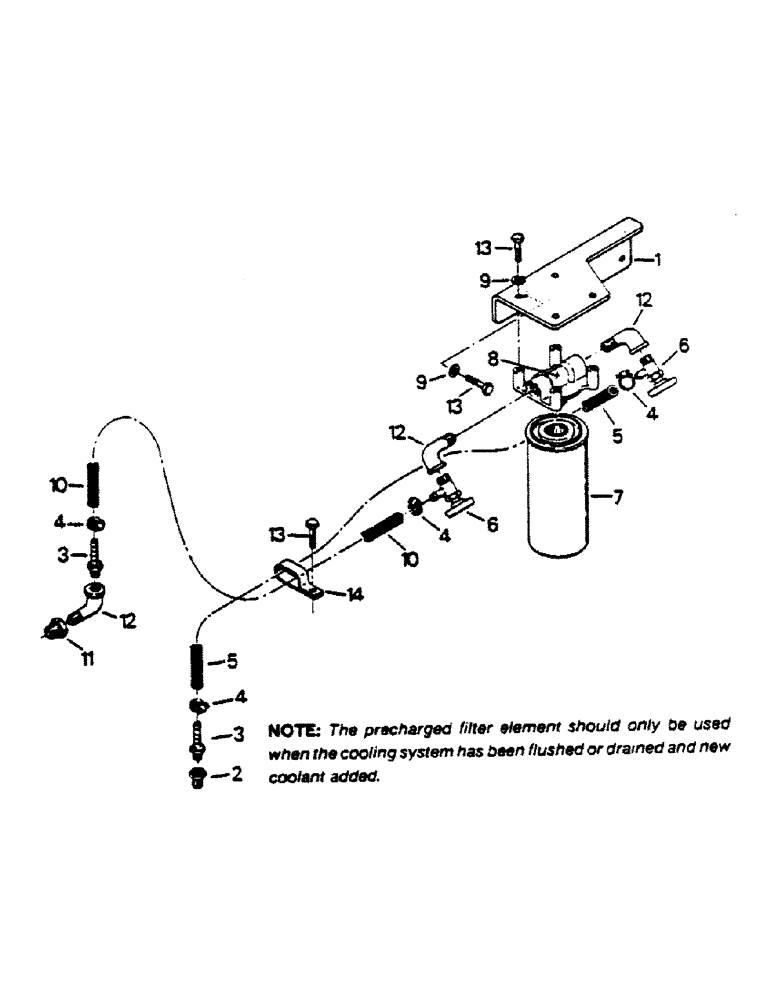

Запчасти Case IH 9170 (04-07) - WATER FILTER AND MOUNTING, CAT 3406 ENGINE (04) - Drive Train

1

90-3857T1

BRACKET

FILTER BASE BRACKET

1шт.

2

31-178

BUSHING

REDUCER, 1/2 NPT male x 3/8 NPT female

1шт.

3

31-218

CONNECTING ROD

BARBED FITTING, 3/8 NPT male x 3/8 hose

2шт.

4

32-29

HOSE CLAMP

CLAMP

4шт.

5

31-1691

FUEL HOSE

HOSE

1шт.

6

1-1610

VALVE

2шт.

7

28-31

FILTER

ELEMENT

1шт.

The precharged filter element should only be used when the cooling system has been flushed or drained and new coolant added.

1шт.

1-7834

FILTER

ELEMENT (Precharged)

1шт.

8

1-1612

HEAD

FILTER BASE

1шт.

9

19-117

LOCK WASHER,3/8"

3/8"

6шт.

10

31-2308

HOSE,0.38" ID x 48.00"

1шт.

11

31-351

BUSHING

REDUCER, 3/4 NPT male x 3/8 NPT female

1шт.

12

31-219

ELBOW

STREET ELBOW, 3/8 NPT male x 3/8 NPT female

3шт.

13

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

7шт.

14

31-1070

CLAMP,5/8", 3/8" Bolt, Double

1шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

TY RAP (Not shown)

2шт.
