Запчасти Case IH 9170 (04-06) - ENGINE BLOCK HEATER (04) - Drive Train

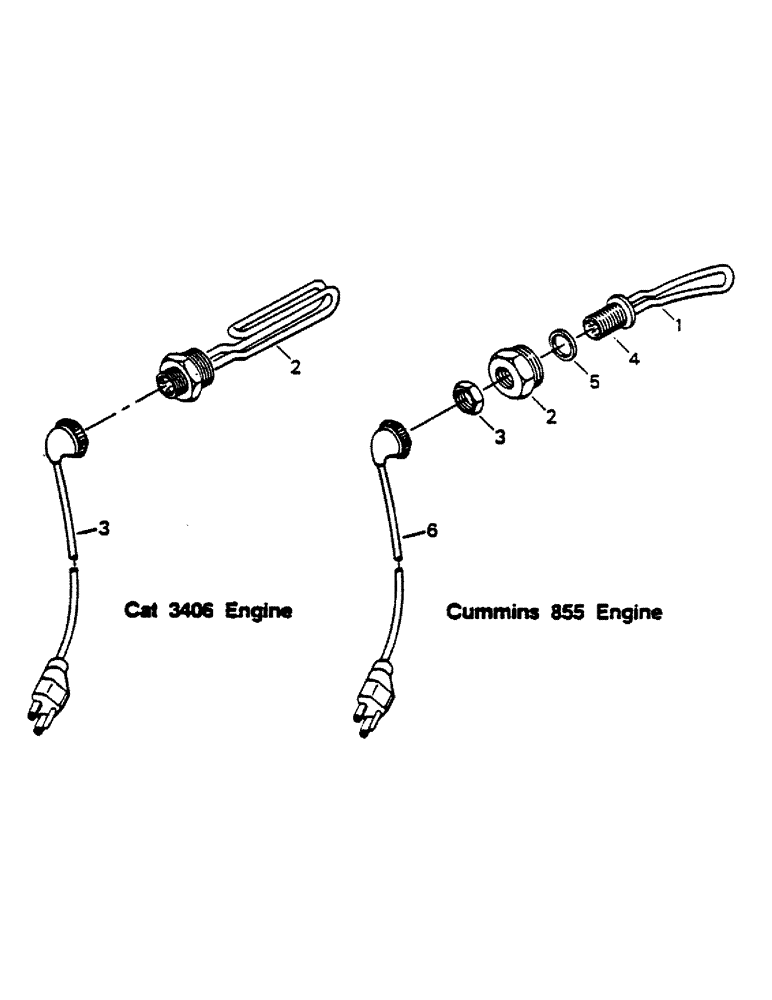

Схема запчастей Case IH 9170 - (04-06) - ENGINE BLOCK HEATER (04) - Drive Train
2
2
3
6
3
5
1
4

Артикул

Название

Примечание

Количество

35-1092

HEATER

ENGINE BLOCK HEATER KIT (Cat 3406 engine), Includes: Ref. 1 - 3

1шт.

1

1-5614

INSTRUCTION

INSTALLATION DRAWING

1шт.

1-5645

HEATER

ENGINE BLOCK HEATER, Includes: Ref. 2 and 3

1шт.

2

1-5613

ELEMENT

1шт.

3

1-5604

ROPE

HEATER CORD

1шт.

90-3490T91

HEATER

ENGINE BLOCK HEATER (Cummins 855 engine), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

2

NSS

NOT SOLD SEPARAT

REDUCER

1шт.

3

NSS

NOT SOLD SEPARAT

NUT

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET

1шт.

6

90-3491T1

CABLE

HEATER CORD

1шт.

7

19-135

CABLE TIE

TY RAP (Not shown)

1шт.

Выбрано товаров: 13
