(04-04) - ALTERNATOR AND MOUNTING, CUMMINS 855 ENGINE

Запчасти Case IH 9170 (04-04) - ALTERNATOR AND MOUNTING, CUMMINS 855 ENGINE (04) - Drive Train

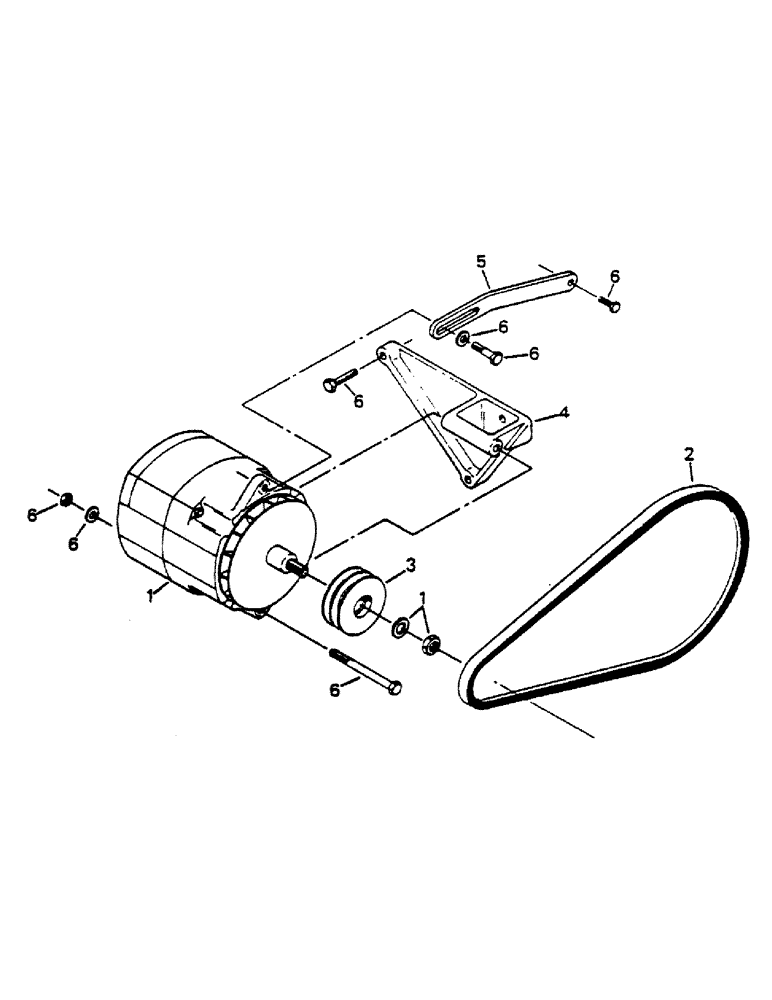

Схема запчастей Case IH 9170 - (04-04) - ALTERNATOR AND MOUNTING, CUMMINS 855 ENGINE (04) - Drive Train
6
6
6
3
6
6
5
1
1
6
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ALT ASSY (See Fig. 2-5)

1шт.

2

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator (Set of 2) 0.53" W x 45.92" L

1шт.

3

22-741

PULLEY

ALT PULLEY

1шт.

4

NAP

ALT MOUNT (Cummins part)

1шт.

5

NAP

ADJUSTING BRACKET (Cummins part)

1шт.

6

NAP

MISC MOUNTING HARDWARE (Cummins parts)

1шт.

Выбрано товаров: 6
