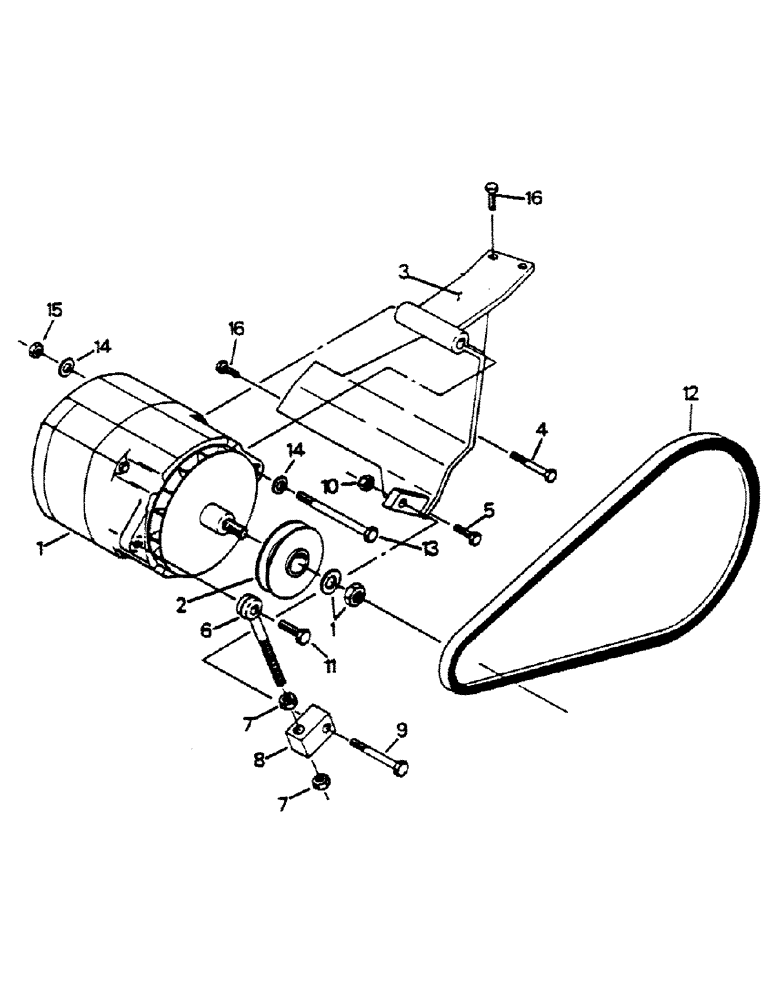

Запчасти Case IH 9170 (04-03) - ALTERNATOR AND MOUNTING, CAT 3406 ENGINE (04) - Drive Train

1

ALT ASSY (See Fig. 2-5)

1шт.

2

22-1085

PULLEY

ALT PULLEY

1шт.

3

90-3823T1

MOUNTING PARTS

ALT MOUNT

1шт.

4

9423067

CAPSCREW,3/8" - 16 x 4 3/4", Gr 8

3/8 UNC x 4-3/4 G-8

1шт.

5

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 UNC x 1-1/4 G-8

2шт.

6

22-1086T1

ROD

ADJUSTING ROD

1шт.

7

19-1060

JAM NUT,1/2" - 20, Gr 8

1/2 UNF G-C

2шт.

8

1-6899T1

BLOCK

ADJUSTING BLOCK

1шт.

9

19-680

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

CAPSCREW, 1/2 UNC x 2-1/4 G-8

1шт.

10

19-653

LOCK NUT

LOCK NUT, 1/2 UNC G-A

1шт.

11

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

CAPSCREW, 1/2 UNC x 1-3/4 G-8

1шт.

12

90-3807T1

V-BELT,0.69" W x 75.40" L

Alt 0.69" W x 75.40" L

1шт.

13

19-1258

BOLT,Hex, 1/2" - 13 x 7", Gr 8

CAPSCREW, 1/2 UNC x 7 G-8

1шт.

14

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

HARDENED WASHER (Special)

2шт.

15

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

1шт.

16

NAP

CAPSCREW (Existing engine hardware)

2шт.
