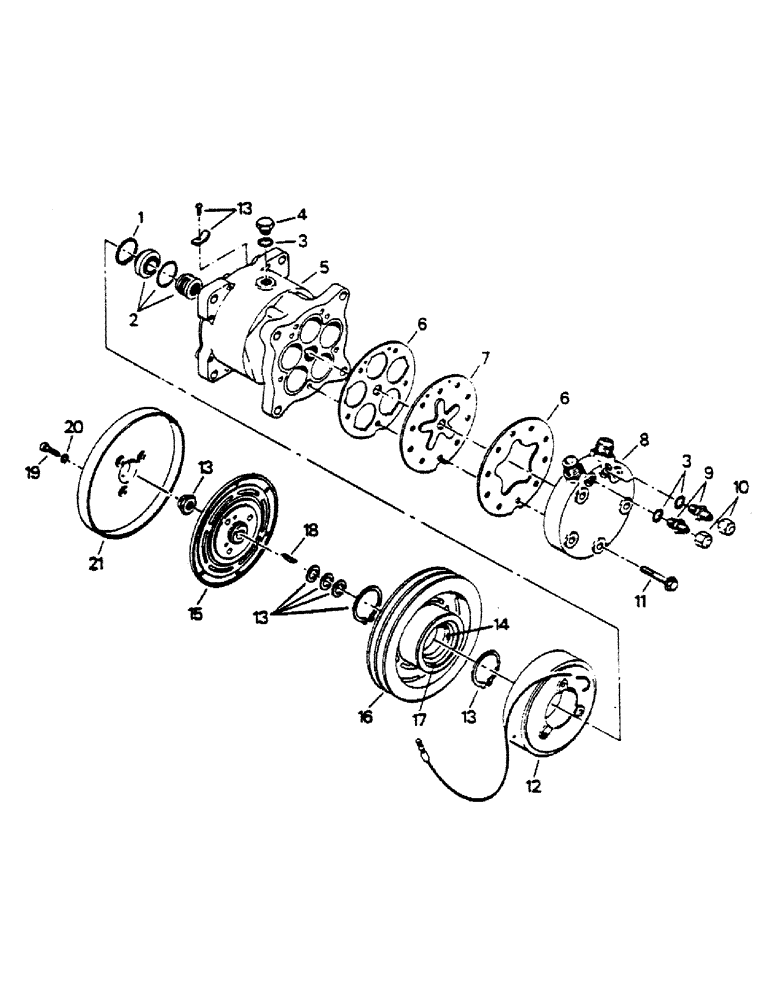

Запчасти Case IH 9170 (03-15) - AIR CONDITIONING COMPRESSOR ASSEMBLY (03) - Climate Control

60-2921T91

COMPRESSOR

A/C COMPRESSOR ASSY, Includes: Ref. 1 - 18

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

9170, 9180, BOTH CASE IH STEIGER 4WD TRACTOR (PRIOR TO S/N 17900650) (12/86-8/88), Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

A/C COMPRESSOR BODY ASSY, Includes: Ref. 1 - 11

1шт.

1

1-2435

RING, SNAP

SNAP RING

1шт.

2

60-3091T1

SEAL KIT

SEAL KIT

1шт.

3

1-2437

O-RING

3шт.

4

A49667

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

COMPRESSOR BODY

1шт.

6

25-231

GASKET KIT

KIT

1шт.

7

60-3092T91

PLATE

VALVE PLATE ASSY (Includes ref. 6)

1шт.

8

60-3093T1

HEAD (CYLINDER)

CYLINDER HEAD (Includes ref. 6)

1шт.

9

1-2440

FITTING

SERVICE PORT

2шт.

10

1-2441

CAP

SERVICE PORT CAP

2шт.

11

1-2438

SCREW,Hex Flg Hd

FLANGED CAPSCREW

5шт.

12

25-237

COIL

1шт.

13

60-3095T1

SET OF WASHERS

ACCESSORY KIT

1шт.

1-3759

CLUTCH HOUSING

PULLEY & FRONT PLATE ASSY, Includes: Ref. 14 - 17

1шт.

14

35-1064

BEARING ASSY

KIT (Includes ref. 17)

1шт.

15

NSS

NOT SOLD SEPARAT

CLUTCH

1шт.

16

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

17

1-3760

BEARING

DUST SEAL

1шт.

18

60-4839T1

BUCKET TOOTH KEY

KEY

1шт.

19

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

SOCKET HEAD CAPSCREW, 1/4 UNC x 1/2

3шт.

20

19-890

LOCK WASHER,Int Tooth, 1/4"

1/4

3шт.

21

25-194

DUST SHIELD 1/4"-28, G5, Thk

1шт.

22

26-304

DECAL

DUST SHIELD DECAL (Not shown)

1шт.
