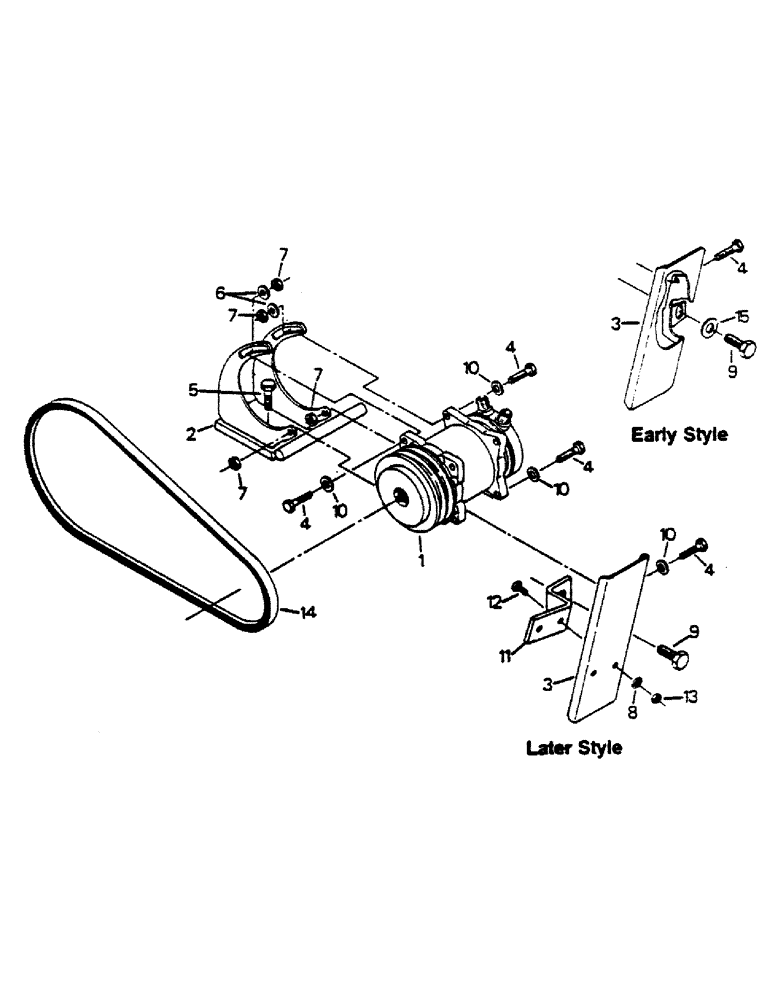

Запчасти Case IH 9170 (03-14) - AIR CONDITIONING COMPRESSOR AND MOUNTING, CUMMINS 855 ENGINE (03) - Climate Control

1

COMPRESSOR ASSY (See Fig. 3-15)

1шт.

2

55-209T1

SUPPORT

COMPRESSOR MOUNT

1шт.

3

90-6872T1

SHIELD

NIP POINT SHIELD (Later style)

1шт.

1-4614

SHIELD

NIP POINT SHIELD (Early style)

1шт.

4

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW (Metric)

4шт.

5

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 UNC x 1-1/4 G-8

2шт.

6

19-108

WASHER,7/16"

7/16

2шт.

7

19-455

NUT

(Metric)

4шт.

8

19-106

WASHER,5/16", SAE

5/16

2шт.

9

19-674

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

CAPSCREW, 5/8 UNC x 3/4 G-5

1шт.

10

19-680

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

HARDENED WASHER, 3/8

4шт.

11

90-6871T1

SUPPORT

BRACKET

1шт.

12

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

13

19-508

LOCK NUT

LOCK NUT, 5/16 UNC G-B

2шт.

14

1-6864

V-BELT,0.53" W x 39.25" L

A/C Compressor 0.53" W x 39.25" L

1шт.

15

19-711

WASHER,5/8", SAE

5/8 (Early style only)

1шт.
