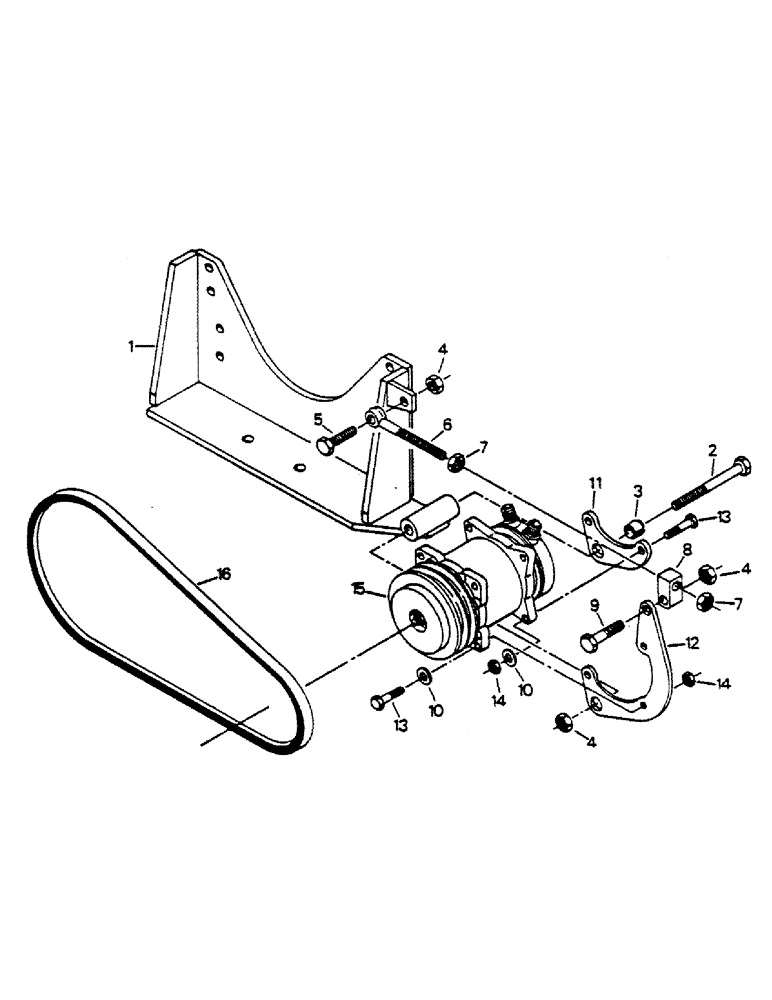

Запчасти Case IH 9170 (03-13) - AIR CONDITIONING COMPRESSOR AND MOUNTING, CAT 3406 ENGINE (03) - Climate Control

1

ENGINE MOUNT (See Fig. 4-1)

1шт.

2

9430514

BOLT,1/2" - 13 x 5", Gr 8

CAPSCREW, 1/2 UNC x 5 G-8

1шт.

3

2-1144T1

BUSHING

1шт.

4

19-653

LOCK NUT

LOCK NUT, 1/2 UNC G-A

3шт.

5

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

CAPSCREW, 1/2 UNC x 1-1/2 G-8

1шт.

6

22-1086T1

ROD

ADJUSTING ROD

1шт.

7

19-1060

JAM NUT,1/2" - 20, Gr 8

JAM NUT, 1/2 UNF G-C

2шт.

8

1-6899T1

BLOCK

1шт.

9

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 UNC x 2 G-5

1шт.

10

19-860

WASHER

HARDENED WASHER, 3/8

5шт.

11

2-5292T1

BRACKET

1шт.

12

2-7181T1

BRACKET

1шт.

13

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

CAPSCREW (Metric)

5шт.

14

19-455

NUT

LOCK NUT (Metric)

5шт.

15

A/C COMPRESSOR ASSY (See Fig. 3-15)

1шт.

16

90-3806T1

V-BELT,0.53" W x 44.60" L

A/C Compressor 0.53" W x 44.60" L

1шт.
