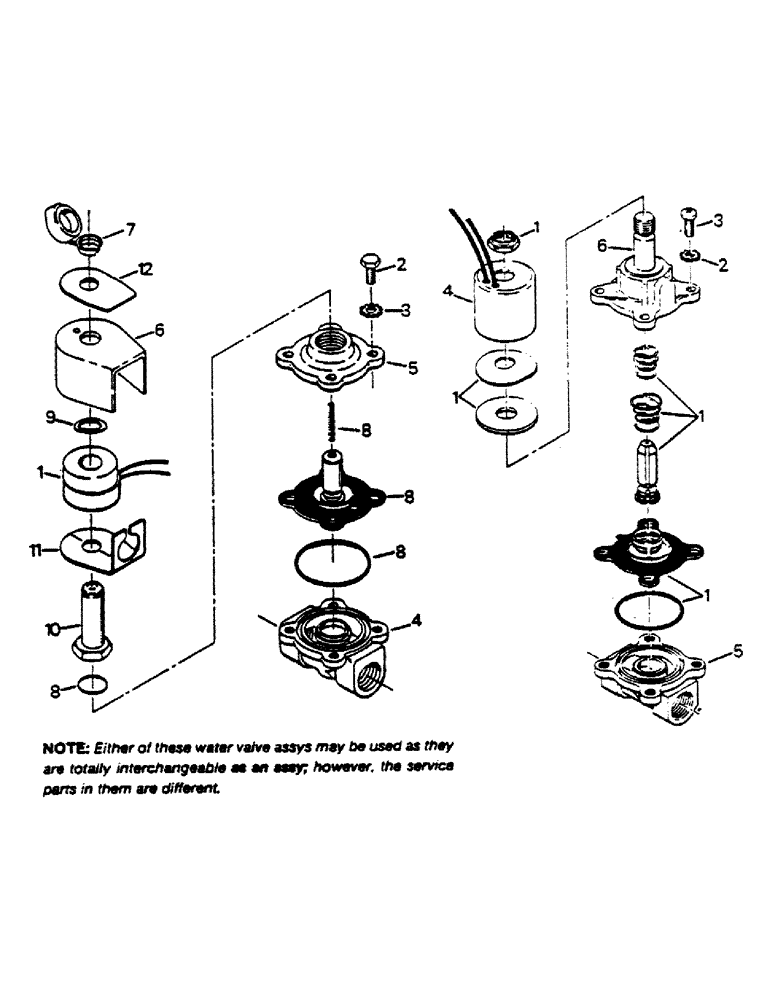

Запчасти Case IH 9170 (03-12) - WATER VALVE ASSEMBLY (03) - Climate Control

60-2129T91

HYDRAULIC VALVE

WATER VALVE ASSY, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

COIL

1шт.

2

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

4шт.

3

19-467

LOCK WASHER,Ext Tooth, 1/4"

1/4

4шт.

4

NSS

NOT SOLD SEPARAT

BASE HOUSING

1шт.

5

NSS

NOT SOLD SEPARAT

STUD HOUSING

1шт.

6

NSS

NOT SOLD SEPARAT

COVER

1шт.

7

60-3165T1

RETAINER CAP

1шт.

8

60-3163T1

KIT

REPAIR KIT

1шт.

9

19-6059

CURVED WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

SOLENOID BASE

1шт.

11

NSS

NOT SOLD SEPARAT

BASEPLATE

1шт.

12

NSS

NOT SOLD SEPARAT

NAMEPLATE

1шт.

60-2217T91

VALVE

WATER VALVE ASSY, Includes: Ref. 1 - 6

1шт.

1

60-3021T1

KIT

REPAIR KIT

1шт.

2

19-467

LOCK WASHER,Ext Tooth, 1/4"

1/4

4шт.

3

19-1062

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

MACHINE SCREW, 1/4 UNC x 3/4

2шт.

19-1114

SCREW,Phil Pan Hd, 1/4" - 20 x 0.88"

MACHINE SCREW, 1/4 UNC x 7/8

2шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

BASE HOUSING

1шт.

6

NSS

NOT SOLD SEPARAT

STUD HOUSING

1шт.
