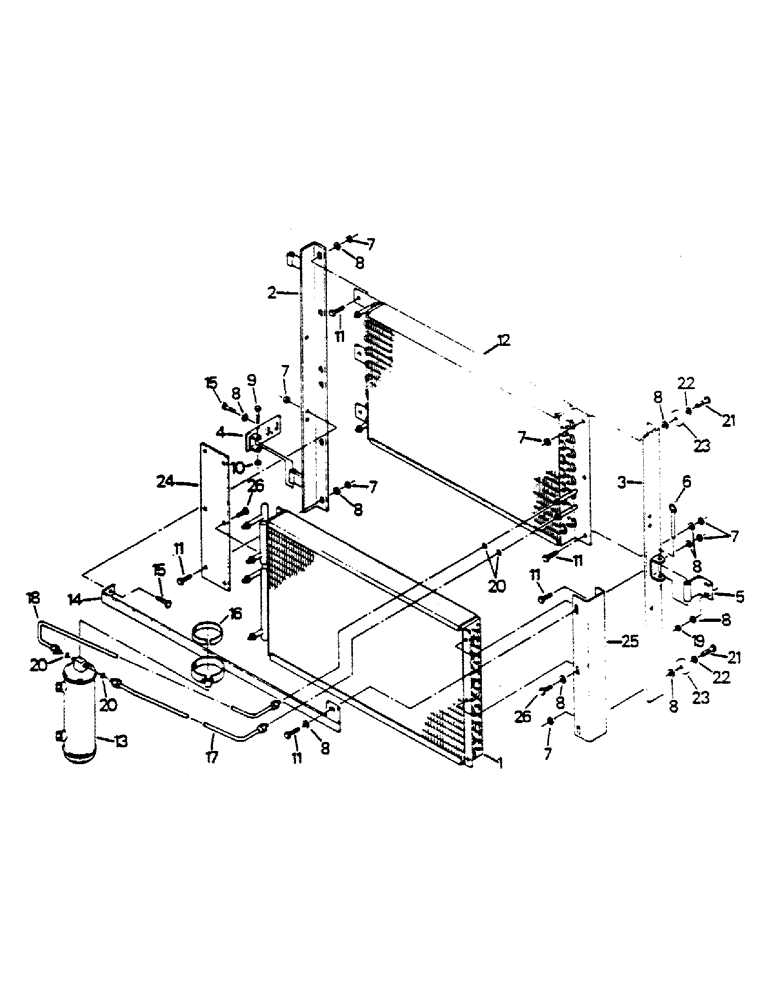

Запчасти Case IH 9170 (03-09) - OIL COOLER AND CONDENSER MOUNTING (03) - Climate Control

1

90-6708T1

OIL COOLER

1шт.

2

90-2380T2

SUPPORT

(Right)

1шт.

3

90-2379T2

SUPPORT

(Left)

1шт.

4

90-2377T1

PIVOT

2шт.

5

90-2374T1

LATCH

1шт.

6

19-5774

PIN

1шт.

7

19-508

LOCK NUT

LOCK NUT, 5/16 UNC G-B

13шт.

8

19-700

WASHER,5/16"

5/16

25шт.

9

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1-3/4 G-5

2шт.

10

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

2шт.

11

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 5/8 G-5

10шт.

12

2-4156T2

CONDENSER

1шт.

13

60-1987T91

AIR CONDITIONER

RECEIVER ASSY (Service breakdown below)

1шт.

60-4476T1

MICROFICHE

APERATURE ASSY

2шт.

60-4477T1

O-RING,0.989" ID x 0.07" Width

2шт.

60-4478T1

BALL

2шт.

14

90-6719T1

SUPPORT

1шт.

15

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

6шт.

16

2-5163T1

FOAM

STRIP

1шт.

17

60-2094T1

TUBE,0.375" OD, 14.69, 2" Length

1шт.

18

60-2095T1

TUBE

1шт.

19

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

20

31-1807

O-RING

O-RING

4шт.

21

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

22

19-106

WASHER,5/16", SAE

5/16

2шт.

23

31-2253

MOUNTING PARTS

VIBRATION MOUNT

2шт.

24

90-6685T1

BRACKET

1шт.

25

90-6686T1

BRACKET

1шт.

26

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

CAPSCREW, 5/16 UNC x 1/2 G-5

5шт.
