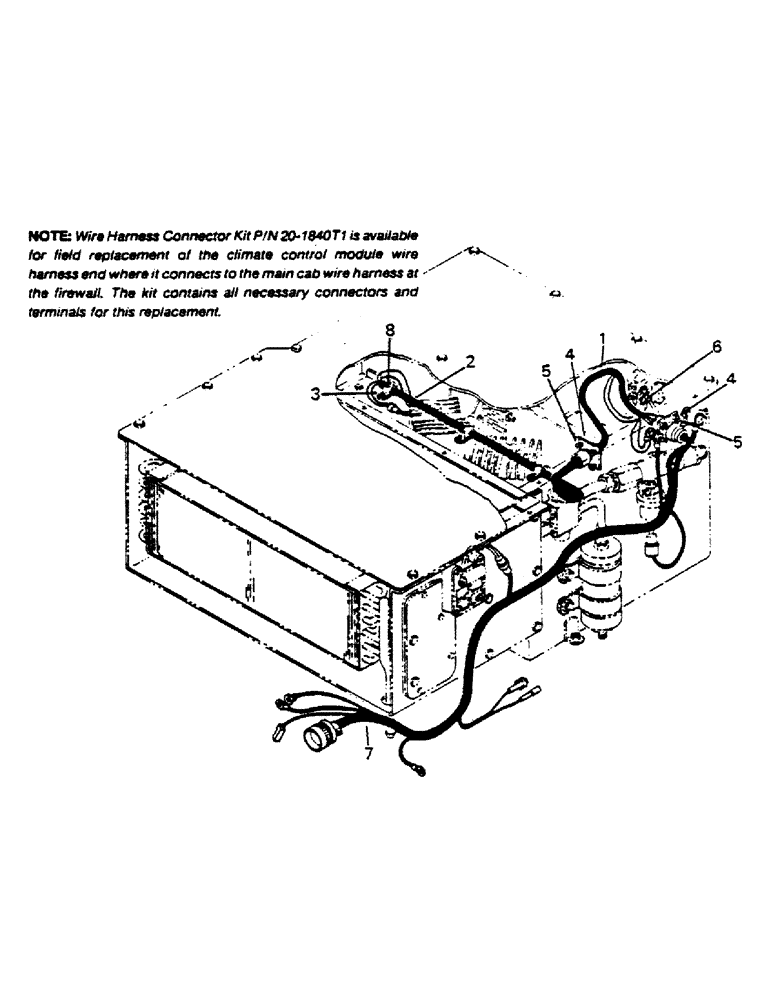

Запчасти Case IH 9170 (03-08) - MODULE ELECTRICAL (03) - Climate Control

1

20-1397T4

HARNESS

WIRE HARNESS

1шт.

2

20-1602T1

HARNESS

WIRE HARNESS

1шт.

3

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW, #10 UNC x 1/2

3шт.

4

19-5754

NUT,#4-40, GB

LOCK NUT, #4 UNC G-A

8шт.

5

363-3046

SCREW,Hex Wash Hd, #4-40 x 3/8"

MACHINE SCREW, #4 UNC x 3/8

8шт.

6

20-1947T1

ELECTRICAL WIRE

WIRE

2шт.

7

20-2072T1

HARNESS

WIRE HARNESS

1шт.

8

22-635

MOUNTING CLIP

CLIP

3шт.
