(03-07) - BLOWER ASSEMBLY

Запчасти Case IH 9170 (03-07) - BLOWER ASSEMBLY (03) - Climate Control

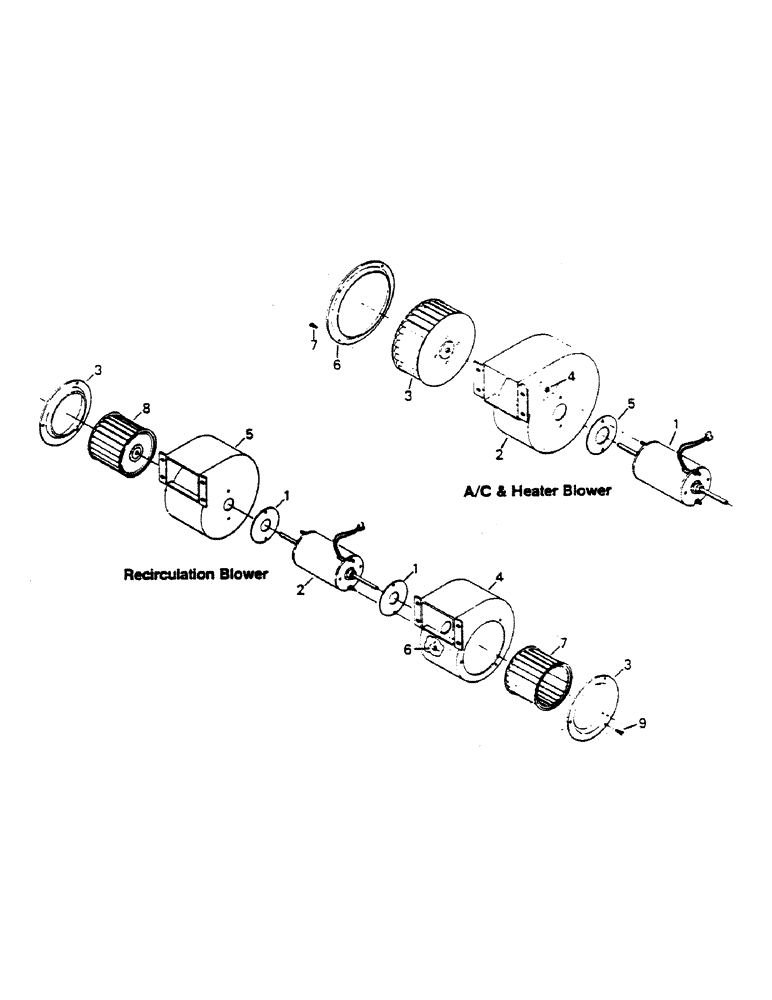

Схема запчастей Case IH 9170 - (03-07) - BLOWER ASSEMBLY (03) - Climate Control
2
5
7
6
4
6
3
3
1
2
8
1
3
7
9
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

60-2641T91

BLOWER

RECIRCULATION BLOWER ASSY, Includes: Ref. 1 - 9

1шт.

1

60-2565T1

GASKET

MOTOR GASKET

2шт.

2

60-2564T2

BLOWER

MOTOR

1шт.

3

60-2567T1

FLANGE

INLET FLANGE

2шт.

4

60-2568T1

HOUSING

BLOWER HOUSING

1шт.

5

60-2569T1

HOUSING

BLOWER HOUSING

1шт.

6

231-24109

LOCK NUT,#10-32, GB

#10 UNF G-A

4шт.

7

60-2566T2

BLOWER

WHEEL

1шт.

8

60-2629T2

BLOWER

WHEEL

1шт.

9

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

TAPPING SCREW, #6 UNS x 1/4

6шт.

60-3669T91

BLOWER

A/C & HEATER BLOWER ASSY, Includes: Ref. 1 - 7

1шт.

1

60-2564T2

BLOWER

MOTOR

1шт.

2

60-3670T1

HOUSING

BLOWER HOUSING

1шт.

3

60-2786T1

BLOWER

WHEEL

1шт.

4

231-24109

LOCK NUT,#10-32, GB

#10 UNF G-A

2шт.

5

60-2565T1

GASKET

MOTOR GASKET

1шт.

6

60-2640T1

FLANGE ASSY

INLET FLANGE

1шт.

7

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

TAPPING SCREW, #10 UNS x 3/8

4шт.
