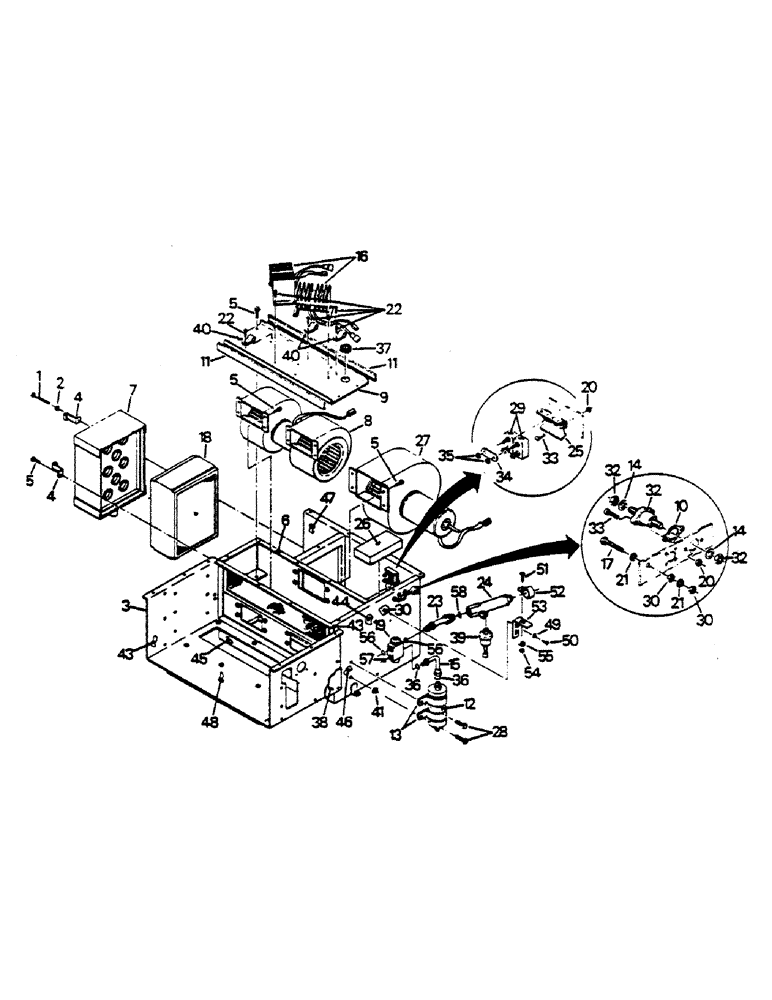

Запчасти Case IH 9170 (03-04) - MODULE ASSEMBLY (03) - Climate Control
№
Артикул
Название
Примечание
Количество
1
9419023
BOLT,Hex, 1/4" - 20 x 3 1/4", Gr 5
CAPSCREW, 1/4 UNC x 3-1/4 G-5
1шт.
2
19-5558
LOCK NUT,Flg, 1/4"-20
FLANGED LOCK NUT, 1/4 UNC G-B
1шт.
3
60-2852T3
HOUSING
MODULE HOUSING
1шт.
4
60-2875T2
BRACKET
2шт.
5
19-6016
SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5
FLANGED CAPSCREW, 1/4 UNC x 1-1/4 G-5
17шт.
6
60-2876T1
MOUNTING PARTS
MOUNT
1шт.
7
60-1980T1
PRECLEANER
1шт.
8
RECIRCULATION BLOWER ASSY (See Fig. 3-7)
1шт.
9
60-2874T1
PANEL
1шт.
10
1-7096
GASKET
JUNCTION BLOCK GASKET
1шт.
11
60-2903T1
SEAL
2шт.
12
2-1095T1
RECEIVER-DRYER,Air Conditioner
IN-LINE DRYER
1шт.
13
31-1411
CLAMP
2шт.
14
19-5577
LOCK WASHER
LOCK WASHER, 3/8 brass
2шт.
15
60-4467T1
TUBE,0.375" OD, 2.44, 2.23" Length
1шт.
16
CONTROL MODULE ASSY (See Fig. 1-13)
2шт.
17
363-32516
SCREW,Hex Wash Hd, 1/4"-20 x 1"
FLANGED MACHINE SCREW, 1/4 UNC x 1
1шт.
18
60-1981T1
FILTER
1шт.
19
60-4087T1
VALVE
TXV VALVE
1шт.
20
19-5563
LOCK NUT
LOCK NUT, #10 UNC G-A
4шт.
21
19-115
LOCK WASHER,1/4"
1/4"
2шт.
22
281-1358
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
TAPPING SCREW, #10 UNC x 1/2
9шт.
23
60-4536T1
ADAPTER
VALVE ADAPTER
1шт.
24
60-4088T1
VALVE
STV VALVE
1шт.
25
20-1171T1
SUPPORT
CIRCUIT BREAKER BRACKET
1шт.
26
60-1811T2
FOAM
1шт.
27
BLOWER ASSY (See Fig. 3-7)
1шт.
28
19-6091
CAPSCREW,Hex, M18 x 1.5 x 65mm
FLANGED CAPSCREW, 3/8 UNC x 1 G-5
2шт.
29
22-672
BREAKER
CIRCUIT BREAKER (20 amp)
2шт.
30
19-1081
LOCK NUT
LOCK NUT, 1/4 UNC G-A
4шт.
31
20-1150T1
BLOCK
JUNCTION BLOCK
1шт.
32
115772
NUT
3/8 UNC brass
2шт.
33
159943
SCREW,Cross Pan Hd, #10 - 24 x 5/8"
MACHINE SCREW, #10 UNC x 5/8
4шт.
34
22-677
BAR
BUSS BAR
1шт.
35
19-481
SERRATED NUT
KEPS NUT, #10 UNF
5шт.
36
31-1807
O-RING
O-RING
2шт.
37
22-421
GROMMET
1шт.
38
60-3434T1
FOAM
ACOUSTIC FOAM
1шт.
39
60-4223T1
SWITCH
1шт.
40
22-635
MOUNTING CLIP
CLIP
3шт.
41
60-3437T1
SPACER
2шт.
42
60-3428T1
FOAM
ACOUSTIC FOAM
1шт.
43
60-3433T1
FOAM
ACOUSTIC FOAM
1шт.
44
60-3436T2
FOAM
ACOUSTIC FOAM
1шт.
45
60-3430T1
FOAM
ACOUSTIC FOAM
1шт.
46
60-3432T1
FOAM
ACOUSTIC FOAM
1шт.
47
60-3435T1
FOAM
ACOUSTIC FOAM
1шт.
48
60-3431T1
FOAM
ACOUSTIC FOAM
1шт.
49
9419996
WASHER,1/4"
1/4 x 3/4 x 1/16 thk
2шт.
50
9419004
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
CAPSCREW, 1/4 UNC x 3/4 G-5
2шт.
51
9418822
BOLT,Hex, 3/8" x 1", Gr 5
CAPSCREW, 3/8 UNC x 1 G-5
1шт.
52
31-1348
CLAMP
1шт.
53
60-4697T1
BRACKET
1шт.
54
19-341
LOCK NUT,3/8" - 16, GB
3/8 UNC G-A
1шт.
55
33-85
SPECIAL WASHER
HARDENED WASHER, 3/8 x 13/16 x 3/16 thk
1шт.
56
31-1809
O-RING
2шт.
57
31-1808
O-RING
O-RING
1шт.
58
31-1810
O-RING,1.78mm Thk x 17mm ID
1шт.
Выбрано товаров: 58
