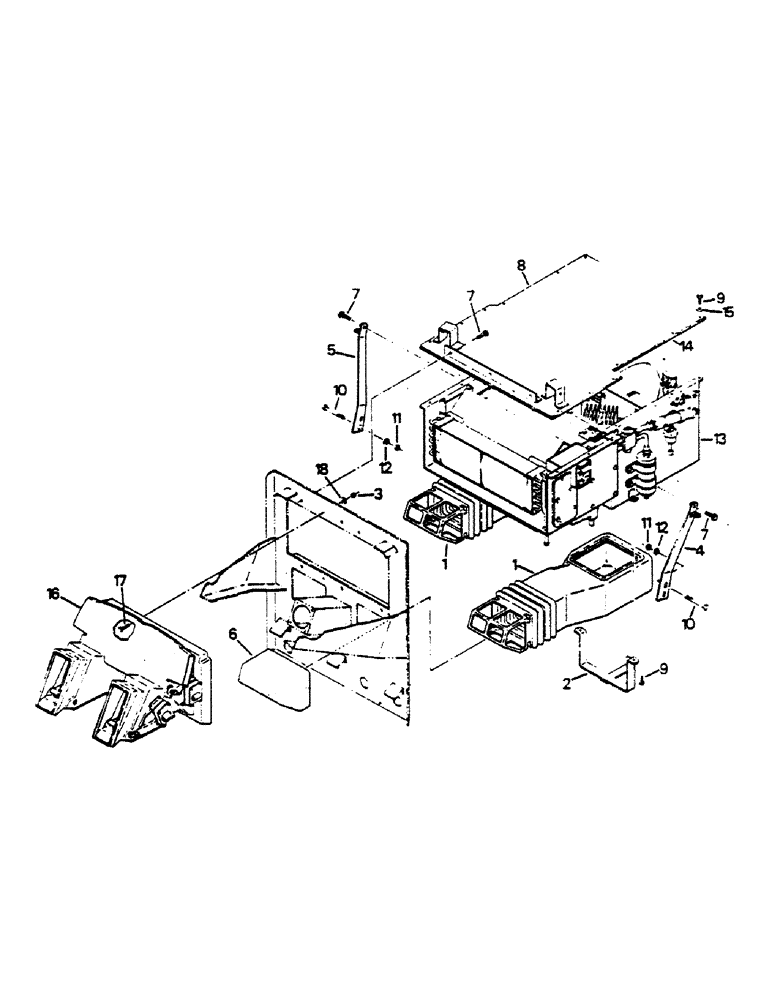

Запчасти Case IH 9170 (03-02) - DUCTING (03) - Climate Control

1

60-2825T2

DUCT

RECIRCULATION DUCT

2шт.

2

60-3543T1

BRACKET

2шт.

3

19-5563

LOCK NUT

LOCK NUT, #10 UNC G-A

8шт.

4

60-3017T1

SUPPORT (Right)

1шт.

5

60-3018T1

SUPPORT (Left)

1шт.

6

60-2156T1

FILTER

2шт.

7

19-6008

CAPSCREW,Hex, 3/8" - 16 x 3/4", Gr 5

FLANGED CAPSCREW, 3/8 UNC x 3/4 G-5

8шт.

8

60-3444T1

FOAM

ACOUSTIC FOAM

1шт.

9

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

FLANGED CAPSCREW, 1/4 UNC x 1-1/4 G-5

24шт.

10

19-940

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

CAPSCREW, 3/8 UNC x 2-1/2 G-8

4шт.

11

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

4шт.

12

9419393

WASHER,3/8"

3/8 x 1 x .08 thk

4шт.

13

60-2905T95

BOARD, PRINTED CIRCU

A/C & HEATER MODULE ASSY (Includes ref. 9, 14 & 15) (See Fig., Serial Range: 3-4-3-6)

1шт.

14

60-2866T1

COVER

A/C & HEATER MODULE COVER

1шт.

15

9419996

WASHER,1/4"

1/4 x 3/4 x 1/16 thk

20шт.

16

PLENUM (See Fig. 3-3)

1шт.

17

19-6067

SCREW,Hex, #10 - 24 x 1 3/4"

MACHINE SCREW, #10 UNC x 1-3/4

8шт.

18

19-195

WASHER,#10

8шт.
