(03-01) - MODULE HOOD

Запчасти Case IH 9170 (03-01) - MODULE HOOD (03) - Climate Control

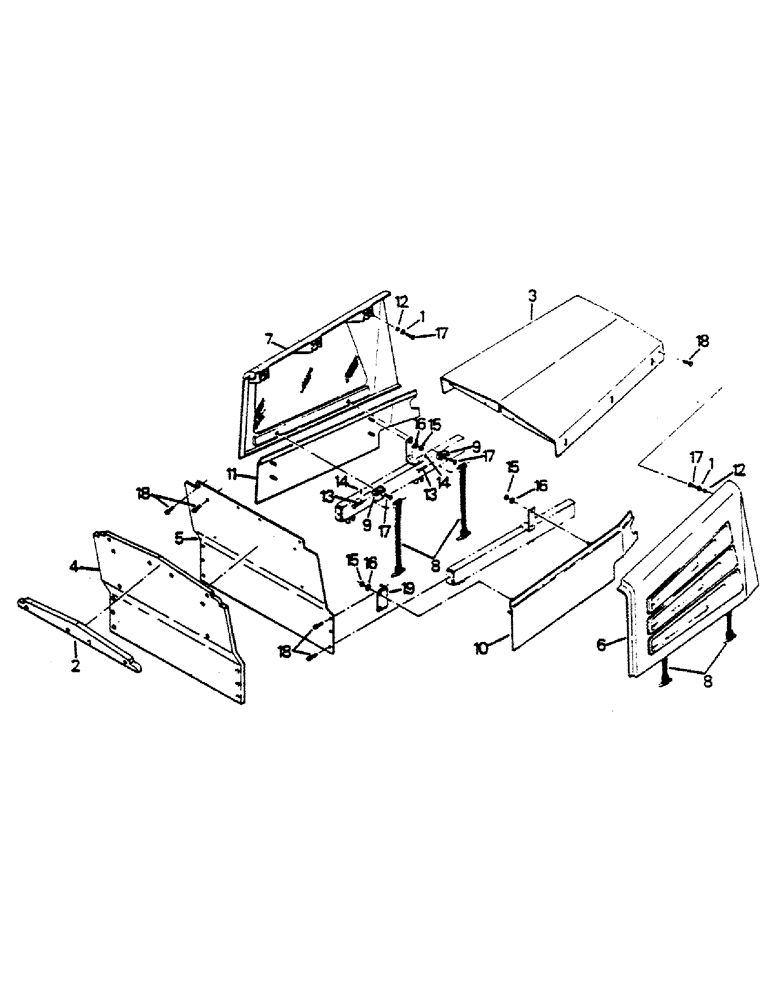

Схема запчастей Case IH 9170 - (03-01) - MODULE HOOD (03) - Climate Control
9
18
15
9
14
15
8
11
19
7
13
16
8
1
2
5
17
18
14
17
16
3
4
13
6
12
17
18
17
10
1
16
12
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19-106

WASHER,5/16", SAE

5/16

6шт.

2

60-3033T1

FOAM

1шт.

3

60-3030T1

PANEL

TOP PANEL

1шт.

4

60-3032T2

FOAM

1шт.

5

60-3031T2

PANEL

1шт.

6

60-5743T1

PANEL

(Left)

1шт.

7

60-5744T1

PANEL

(Right)

1шт.

8

60-3062T1

STRAP

4шт.

9

2-4683T2

BRACKET

ANCHOR BRACKET

4шт.

10

60-3064T3

PANEL (Left)

1шт.

11

60-3065T3

PANEL, SIDE

PANEL (Right)

1шт.

12

60-2148T1

TUBE,0.334" ID, 0.5" OD, 0.125" Length

6шт.

13

19-5664

CLEVIS PIN,5/16" x 2"

5/16 x 1-7/8

4шт.

14

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

15

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

8шт.

16

9419393

WASHER,3/8"

3/8 x 1 x 3/32

8шт.

17

19-5846

LOCK SCREW,Lock, 5/16" - 18 x 0.625", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 5/8 G-5

10шт.

18

19-6008

CAPSCREW,Hex, 3/8" - 16 x 3/4", Gr 5

3/8 UNC x 3/4 G-5

16шт.

19

60-3074T1

BRACKET

2шт.
