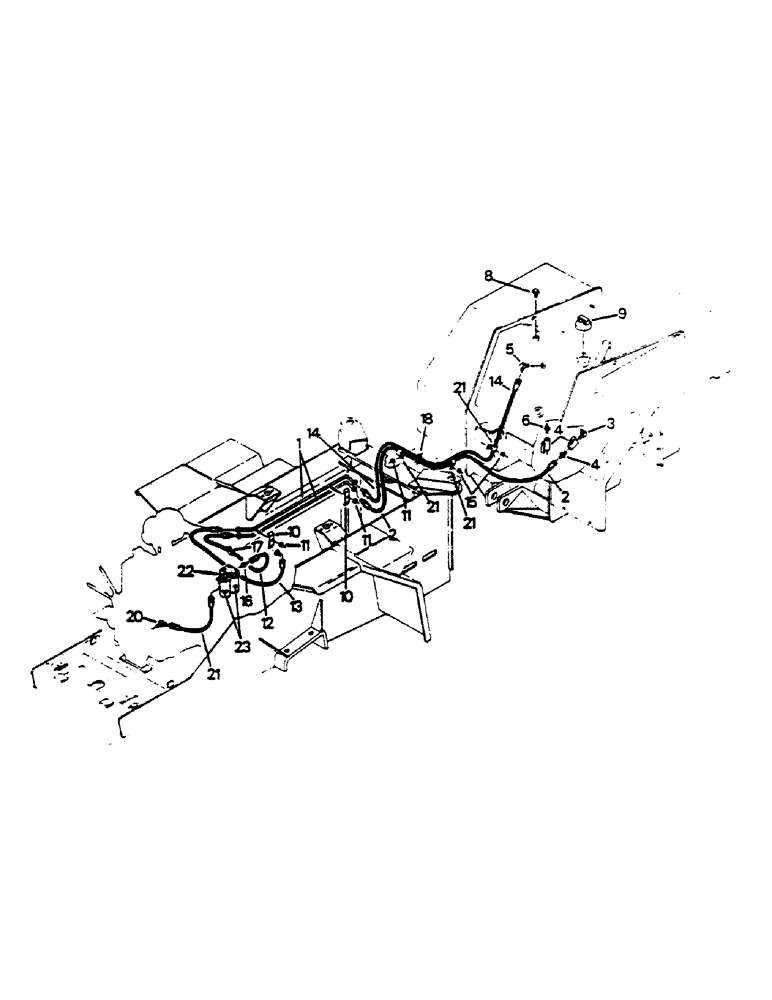

Запчасти Case IH 9170 (07-02) - FUEL SYSTEM, CUMMINS 855 ENGINE (02) - FUEL SYSTEM

1

90-3468T1

TUBE,.75" OD

2шт.

2

31-2109

HOSE ASSY.

HOSE

1шт.

3

31-1585

FITTING

ELBOW, 1/2 NPT male x 1/2 NPT male

1шт.

4

31-1267

SHUT-OFF VALVE

BALL VALVE, 1/2 NPT female

2шт.

5

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 7/8-14 JIC 37 degree male

1шт.

6

31-345

FITTING

1/2 NPT male x 1/2 NPT male

1шт.

7

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

FITTING, 1/2 NPT male x 7/8-14 JIC 37 degree male

1шт.

8

31-1536

BREATHER

VENT, 1/2 NPT male

1шт.

9

2-3679T1

FILLER CAP

FUEL CAP

1шт.

10

2-4183T1

CLAMP

2шт.

11

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

3шт.

12

31-2111

HOSE ASSY.

HOSE

1шт.

13

31-2108

HOSE ASSY.

HOSE

1шт.

14

31-2110

HOSE ASSY.

HOSE

1шт.

15

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

16

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING (10), 7/8-14 o-ring boss x 7/8 JIC 37 degree male

1шт.

17

31-1411

CLAMP

1шт.

18

19-135

CABLE TIE

TY RAP

2шт.

19

1-2667

CLAMP

3шт.

20

1-2056

ELBOW

7/8-14 JIC 37 degree female x 7/8-14 JIC 37 degree male

1шт.

21

NAP

EXISTING HOSE (Cummins part)

1шт.

22

NAP

FILTER ASSY (Cummins part)

1шт.

23

28-35

FUEL FILTER

(See Fig. 4-2 for additional information)

2шт.
