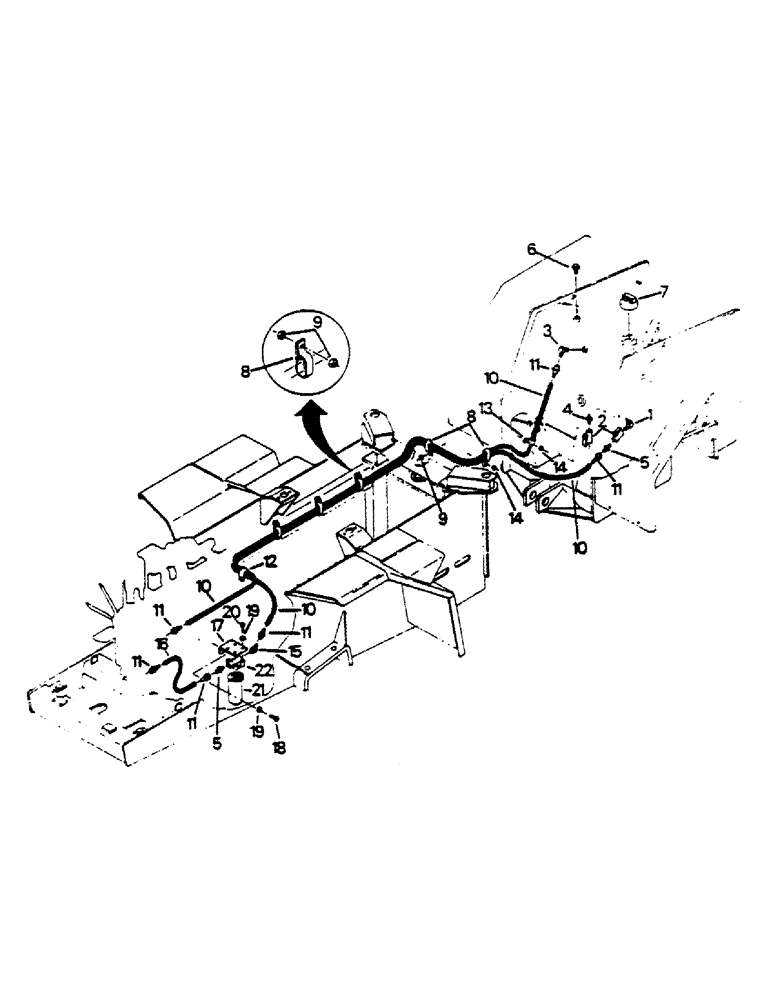

Запчасти Case IH 9170 (07-01) - FUEL SYSTEM, CAT 3406 ENGINE (02) - FUEL SYSTEM

1

31-1585

FITTING

ELBOW, 1/2 NPT male x 1/2 NPT male

1шт.

2

31-1267

SHUT-OFF VALVE

BALL VALVE, 1/2 NPT female

2шт.

3

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 3/4-16 JIC 37 degree male

1шт.

4

31-345

FITTING

1/2 NPT male x 1/2 NPT male

1шт.

5

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

FITTING, 1/2 NPT male x 9/16-18 JIC 37 degree male

2шт.

6

31-1536

BREATHER

VENT, 1/2 NPT male

1шт.

7

2-3679T1

FILLER CAP

FUEL CAP

1шт.

8

31-1070

CLAMP,5/8", 3/8" Bolt, Double

5шт.

9

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

7шт.

10

31-2728

HOSE

2шт.

11

31-311

INSERT

BARBED FITTING, 3/4-16 universal female x 1/2 hose

6шт.

12

32-343

MOUNTING CLIP

CLAMP

1шт.

13

31-1776

MOUNTING CLIP

CLAMP

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

15

31-2100

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 9/16-18 JIC degree male

1шт.

16

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

1шт.

17

90-3858T1

BRACKET

FILTER BRACKET

1шт.

18

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 UNC x 1-1/4 G-8

2шт.

19

19-117

LOCK WASHER,3/8"

3/8"

6шт.

20

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

4шт.

21

90-3941T1

SEPARATOR

FILTER ELEMENT

1шт.

22

90-3940T1

HEAD

FILTER HEAD

1шт.
