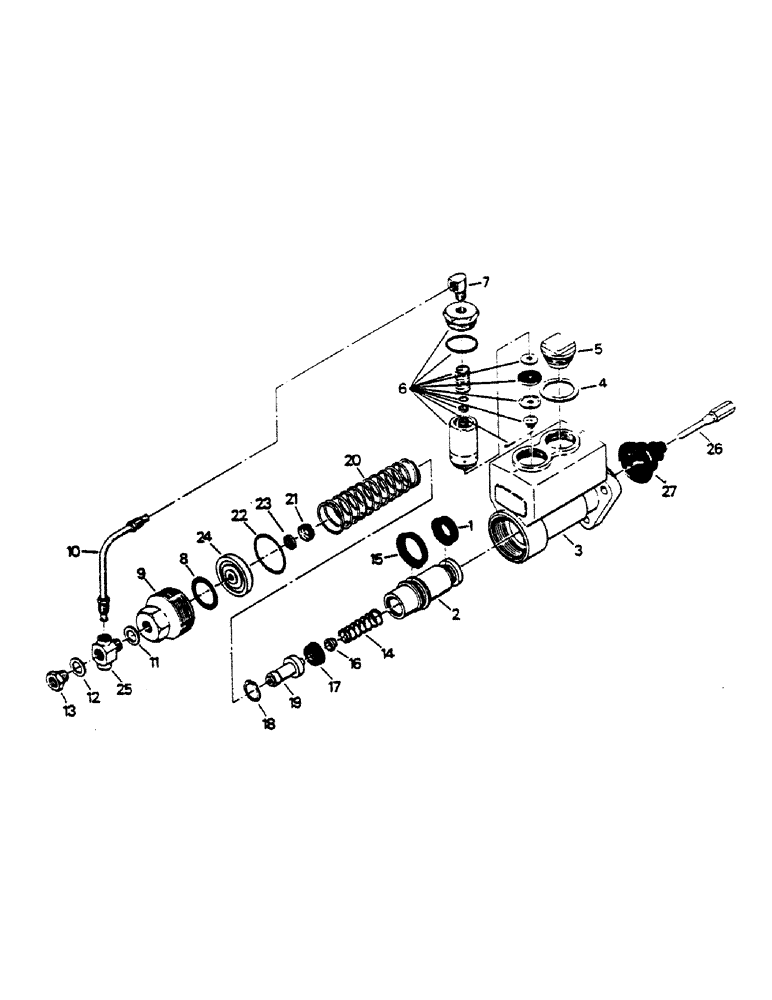

Запчасти Case IH 9170 (05-03) - MASTER CYLINDER ASSEMBLY (5.1) - BRAKES

60-2821T91

MASTER CYLINDER

BRAKE MASTER CYLINDER ASSY, Includes: Ref. 1 - 27

1шт.

2-6646T1

PACKAGE, REPAIR

REPAIR KIT, Includes: Ref. 1, 4, 6, 8, 11, 12, 15, 17, 18, 21, 22, 23 and 27

1шт.

1

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

2-1206

GASKET

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

5

2-1210T1

FILLER CAP

FILLER PLUG

1шт.

6

2-7082T

RELIEF VALVE ASSY

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

7

2-6647T1

ELBOW

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

9

2-6648T1

END PLUG

1шт.

10

2-6649T1

TUBE

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

13

2-6650T1

FITTING

ADAPTER

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

17

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

18

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

25

2-6651T1

FITTING

BLOCK

1шт.

26

2-6652T1

THREADED ROD

PUSH ROD

1шт.

27

NSS

NOT SOLD SEPARAT

BOOT

1шт.

Part of Package Repair Kit, P/N 2-6646T1

1шт.
