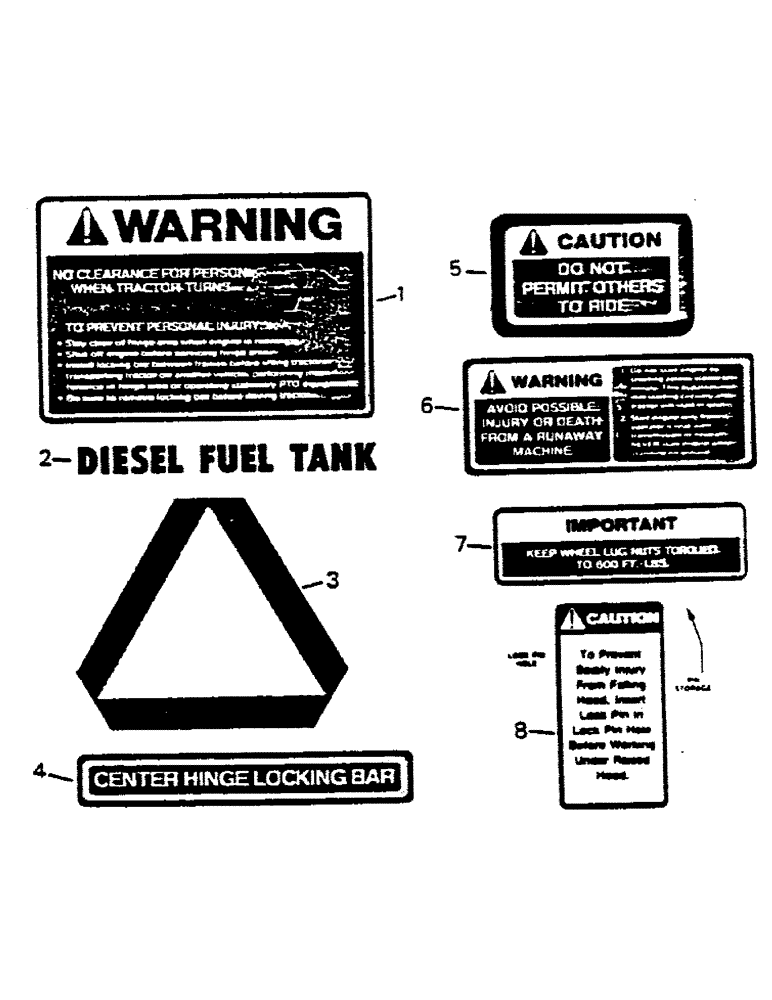

Запчасти Case IH 9170 (09-01) - CHASSIS DECALS (13) - DECALS

1

2-6876T1

DECAL

CENTER HINGE DECAL

2шт.

2

26-242T1

DECAL

DIESEL FUEL DECAL

2шт.

3

26-1

TRAFFIC SIGN

SMV EMBLEM PLATE (Metal backed)

1шт.

26-8

EMBLEM CASE/IH

SMV DECAL (Mounting hardware listed below)

1шт.

19-233

SCREW,Sl Rd Hd, #10 - 24 x 1/2", Gr 2

MACHINE SCREW, #10 UNC x 1/2

2шт.

19-567

NUT,#10-24

#10 UNC G-B

2шт.

4

2-6874T1

DECAL

LOCKING BAR DECAL

2шт.

5

1-5734

DECAL

SAFETY DECAL

1шт.

6

2-6940T1

DECAL

SAFETY DECAL

1шт.

7

2-5348T1

ADHESIVE

WHEEL LUG NUT DECAL

4шт.

8

2-5339T1

DECAL

HOOD LOCK PIN DECAL

1шт.
