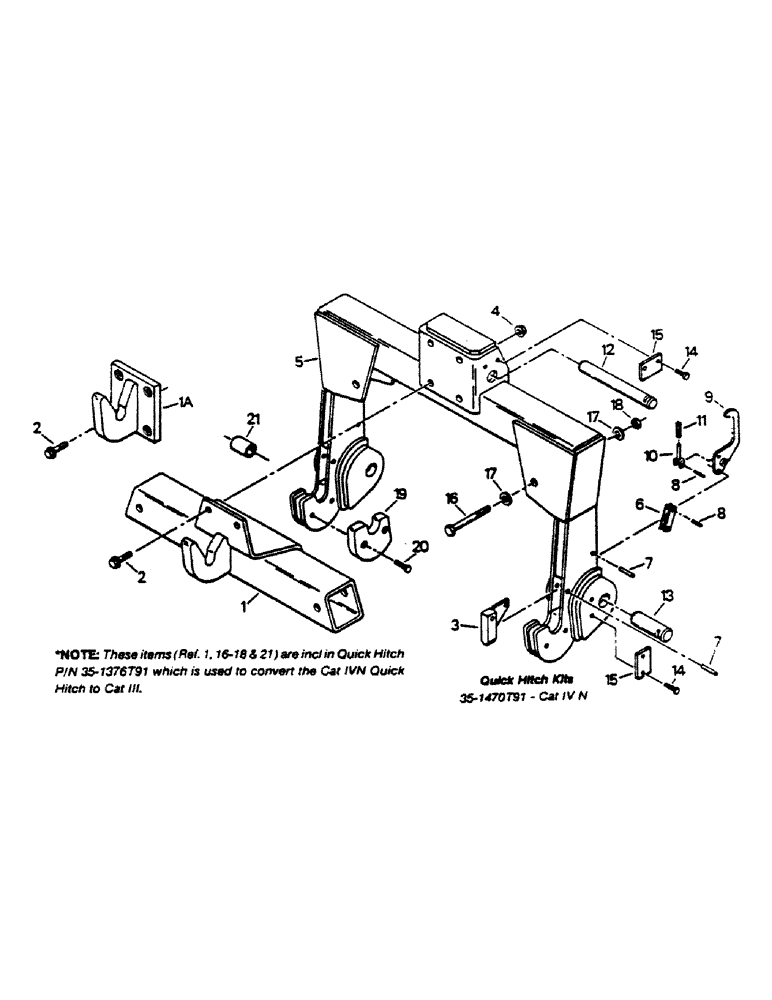

Запчасти Case IH 9170 (10-06) - QUICK HITCH AND MOUNTING Options & Miscellaneous

1

70-1913T1

HOOK

(Cat III)

1шт.

These refs. (Ref. 1, 16-18 & 21) are included in Quick Hitch P/N 35-1376T91 which is used to convert the Cat IVN Quick Hitch to Cat III.

1шт.

1a

70-1869T1

HOOK

(Cat IVN)

1шт.

2

19-5787

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

FLANGED CAPSCREW (Qty 4 with Cat IVN), 3/4 UNC x 2-1/2 G-8

2шт.

3

70-1890T2

STOP

PIN

2шт.

4

19-5727

NUT,Flg, 3/4"-10, G8

FLANGED LOCK NUT (Qty 4 with Cat IVN), 3/4 UNC G-C

2шт.

5

70-1919T2

HITCH ASSY, TRAILER

QUICK HITCH

1шт.

6

70-1887T1

PITMAN

CONNECTOR

2шт.

7

9411887

PIN,1/2" x 2 1/2", Coiled

2шт.

8

9416325

LOCK PIN,5/16" x 1 1/8", Slotted

Pin, 5/16" x 1 1/8", Slotted

6шт.

9

70-1880T1

LATCH

HANDLE

2шт.

10

70-1884T1

PITMAN

GUIDE PIN

2шт.

11

2-4345T1

SPRING

2шт.

12

70-1895T1

PIN

1шт.

13

70-1894T1

PIN

2шт.

14

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

CAPSCREW, 1/2 UNC x 1 G-8

6шт.

15

70-3082T2

LARGE PLATE

RETAINER BLOCK

3шт.

16

9430344

BOLT,Hex, 1" - 8 x 7 1/2", Gr 8

CAPSCREW, 1 UNC x 7-1/2 G-8

2шт.

These refs. (Ref. 1, 16-18 & 21) are included in Quick Hitch P/N 35-1376T91 which is used to convert the Cat IVN Quick Hitch to Cat III.

1шт.

17

19-5739

WASHER

1 x 2 x .15 thk

4шт.

These refs. (Ref. 1, 16-18 & 21) are included in Quick Hitch P/N 35-1376T91 which is used to convert the Cat IVN Quick Hitch to Cat III.

1шт.

18

19-610

NUT,1"-8, G5

1 UNC G-B

2шт.

These refs. (Ref. 1, 16-18 & 21) are included in Quick Hitch P/N 35-1376T91 which is used to convert the Cat IVN Quick Hitch to Cat III.

1шт.

19

70-1921T1

CAP

(Left)

1шт.

70-1920T1

CAP

(Right)

1шт.

20

19-221

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

4шт.

21

2-5306T1

SPACER

2шт.

These refs. (Ref. 1, 16-18 & 21) are included in Quick Hitch P/N 35-1376T91 which is used to convert the Cat IVN Quick Hitch to Cat III.

1шт.
