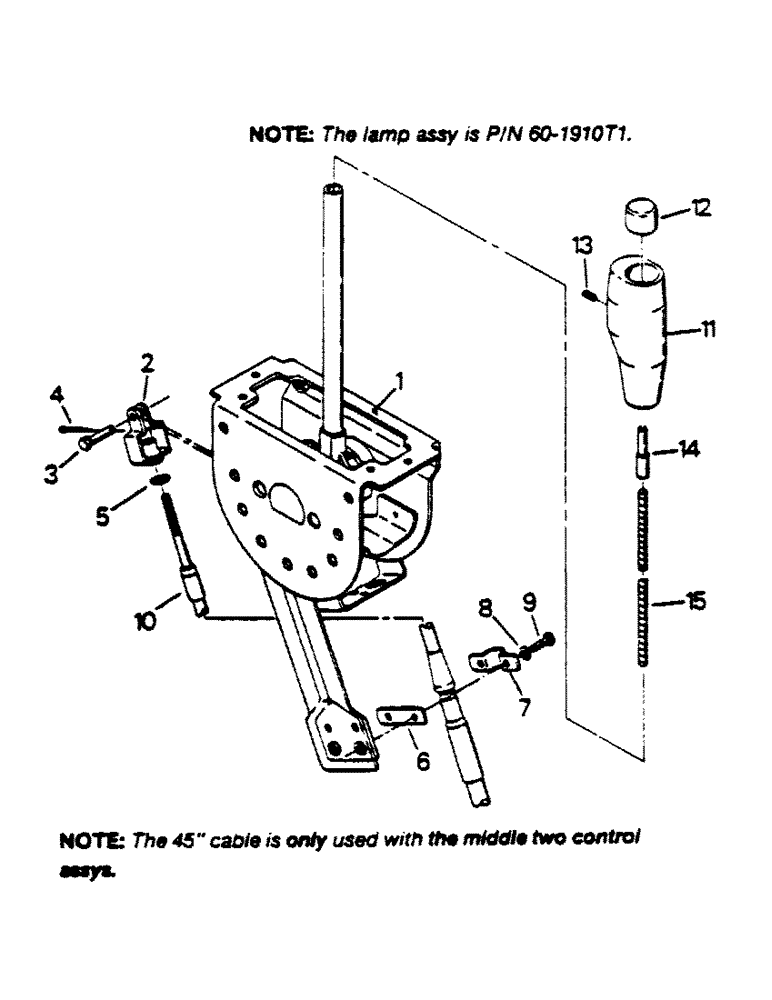

Запчасти Case IH 9170 (01-37) - HYDRAULIC CONTROL ASSEMBLY (10) - CAB

60-1122T93

CONTROL

HYDRAULIC CONTROL ASSY, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSY

1шт.

2

60-1932T2

CLEVIS

1шт.

3

60-1931T1

PIN

CLEVIS PIN

1шт.

4

60-1930T1

PIN

COTTER PIN

1шт.

5

19-936

JAM NUT

JAM NUT, 1/4 UNF G-B

1шт.

6

60-1936T1

SHIM

1шт.

7

60-1935T1

CLAMP

1шт.

8

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

9

153424

SCREW,Cross Fil Hd, #10 - 32 x 0.50", Gr 2

MACHINE SCREW, #10 UNF x 1/2

2шт.

10

60-2054T2

CABLE

HYDRAULIC CONTROL CABLE (45")

1шт.

60-2055T2

CABLE

HYDRAULIC CONTROL CABLE (50")

1шт.

60-2349T92

KNOB

ASSY, Includes: Ref. 11 - 14

1шт.

11

60-1488T2

KNOB

1шт.

12

60-1489T2

BUTTON

PUSH BUTTON

1шт.

13

19-6070

SET SCREW,Hex Socket, #8-32 x 3/4"

#8 UNC x 3/4

1шт.

14

60-1918T1

CAP

END CAP

1шт.

15

60-1919T2

PUSH ROD

1шт.
