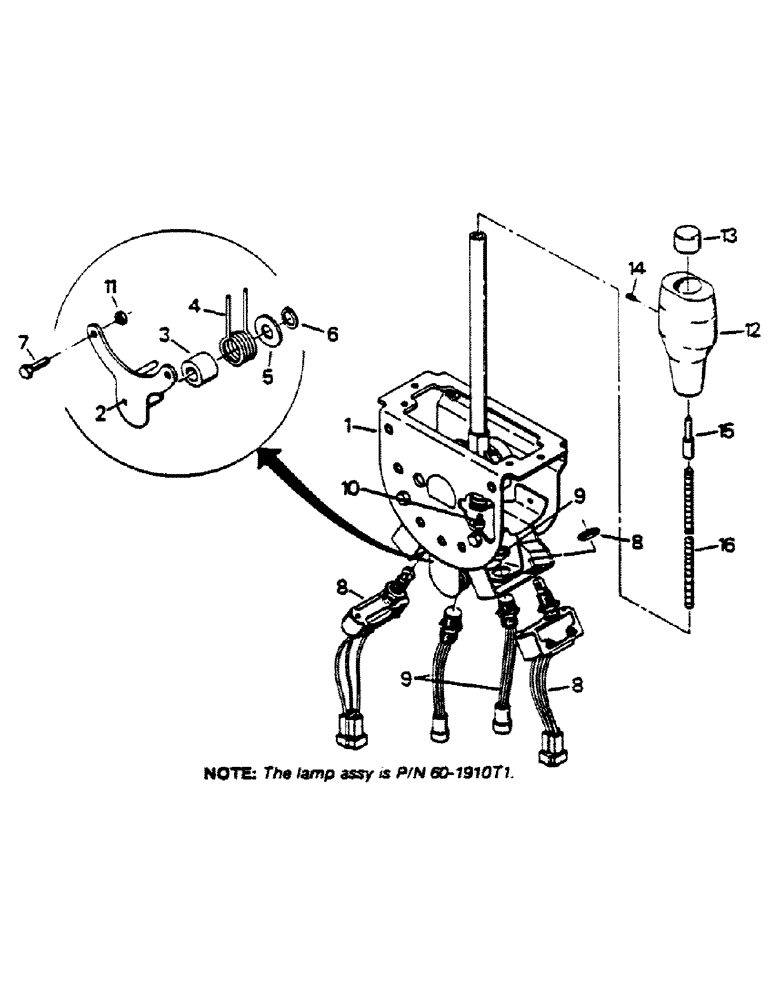

Запчасти Case IH 9170 (01-34) - PULSER CONTROL ASSEMBLY (10) - CAB

60-1900T94

CONTROL

PULSER CONTROL ASSY, Includes: Ref. 1 - 11

1шт.

1

60-1372T93

CONTROL

PULSER CONTROL

1шт.

60-1892T95

KIT

CENTERING DEVICE ASSY, Includes: Ref. 2 - 6

1шт.

2

60-3395T1

BRACKET

1шт.

3

60-1893T3

BUSHING

1шт.

4

60-1891T2

SPRING

1шт.

5

19-5507

SHIM

WASHER, 1/2 x 1-1/4 x 1/16 thk

1шт.

6

19-5765

RING

SNAP RING

1шт.

7

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

2шт.

8

20-1288T92

SWITCH

ROLLER SWITCH

2шт.

9

20-1517T1

SWITCH

2шт.

10

20-1316T1

ACTUATOR

MAGNETIC ACTUATOR

1шт.

11

19-6082

JAM NUT

LOCK/JAM NUT, 1/4 UNC G-A

2шт.

60-2353T2

KNOB ASSEMBLY

1шт.

12

60-1901T2

KNOB

1шт.

13

60-1489T2

BUTTON

PUSH BUTTON

1шт.

14

19-6070

SET SCREW,Hex Socket, #8-32 x 3/4"

#8 UNC x 3/4

1шт.

15

60-1918T1

CAP

END CAP

1шт.

16

60-1919T2

PUSH ROD

1шт.
