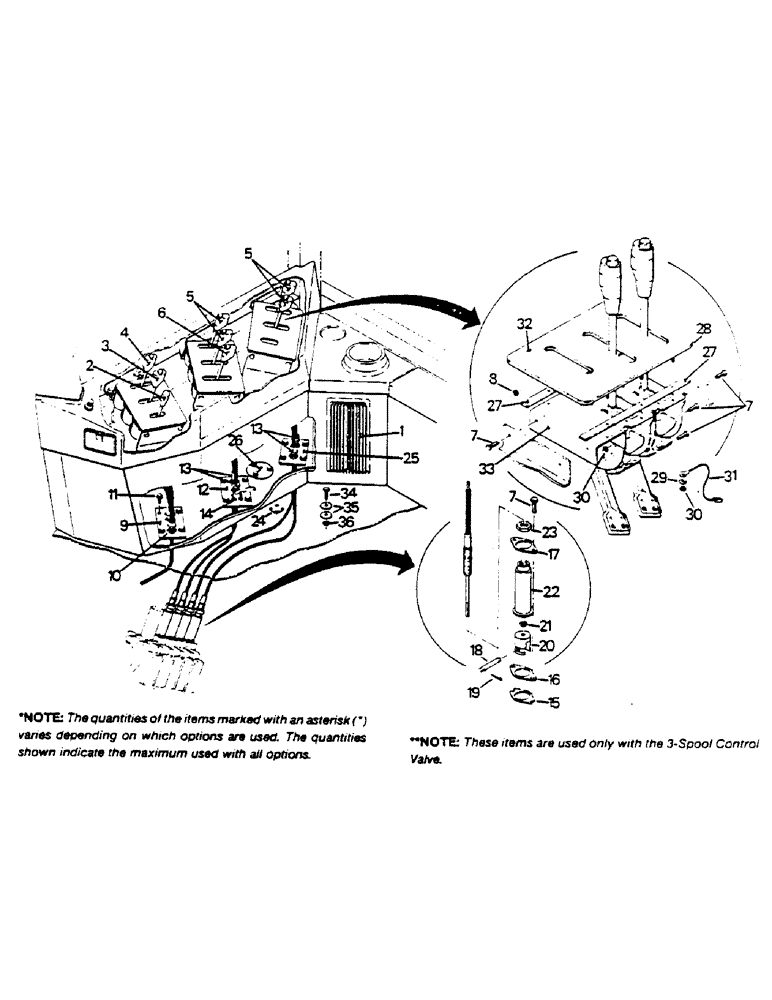

Запчасти Case IH 9170 (01-31) - CONTROL CONSOLE (10) - CAB

1

ELECTRONIC CONTROL CENTER ASSY (See Fig. 2-14)

1шт.

2

THROTTLE CONTROL ASSY (See Fig. 1-33)

1шт.

3

PULSER CONTROL ASSY (See Fig. 1-34)

1шт.

4

TRANS MODE CONTROL ASSY (See Fig. 1-35)

1шт.

5

HYDRAULIC CONTROL ASSY (See Fig. 1-37)

1шт.

6

3-PT CONTROL ASSY (See Fig. 1-36)

1шт.

7

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

24шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

8

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC G-A

10шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

9

60-2574T2

PLATE

(w/o decelerator)

1шт.

60-3775T1

LARGE PLATE

PLATE (With decelerator)

1шт.

60-3150T1

FOAM

ACOUSTIC FOAM (Under ref. 10)

1шт.

10

60-3049T1

CONNECTOR, ELEC

CONNECTOR

1шт.

11

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

15шт.

12

60-2626T1

PLATE

1шт.

60-3151T1

FOAM

ACOUSTIC FOAM (Under ref. 12)

1шт.

13

60-1245T1

CONNECTOR, ELEC

CONNECTOR

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

14

19-6057

SELF-TAP SCREW,Hex Wash Hd, #4 x 1/2"

TAPPING SCREW, #4 UNC x 1/2

4шт.

15

60-2056T1

GASKET

FILTER

4шт.

Ref. #15 - 60-2056T1 should say Gasket-retainer.

1шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

16

60-3008T1

SHIM

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

17

2-4693T1

RETAINER

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

18

19-6041

PIN

(Special)

4шт.

19

19-6043

COTTER PIN,1/32" x 3/4"

Pin, Split (Cotter) 1/32" x 3/4"

8шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

20

2-4694T1

FORK

YOKE

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

21

19-936

JAM NUT

JAM NUT, 1/4 UNF G-B

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

22

2-4692T1

ROPE GUIDE

ENCLOSURE

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

23

19-885

JAM NUT

JAM NUT, 3/4 UNF G-B

4шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

24

60-2623T1

PLATE

(w/o 3-pt hitch)

1шт.

25

60-2622T1

PLATE

1шт.

60-3152T1

FOAM

ACOUSTIC FOAM (Under ref. 27)

1шт.

26

60-2624T1

PLATE

1шт.

60-3153T1

FOAM

ACOUSTIC FOAM (Under ref. 28)

1шт.

27

60-5759T1

CABLE

SPACER

6шт.

28

60-2397T1

COVER

PLATE

3шт.

29

19-281

WASHER,#8

18шт.

30

19-5564

LOCK NUT,#6-32, GB

#6 UNC G-A

18шт.

31

20-1585T1

HARNESS

CONSOLE GROUND WIRE

3шт.

32

60-1463T1

DECAL

CONTROL PANEL (Throttle, pulser & trans mode)

1шт.

60-1464T1

DECAL

CONTROL PANEL (3-pt hitch & hydraulics)

1шт.

60-1465T1

DECAL

CONTROL PANEL (Hydraulics)

1шт.

33

60-2628T2

CHANNEL

2шт.

The quantites of refs. 7, 8, 13, 15, 16, 17, 19, 20, 21, 22, 23, and 33 vary depending on which options are used. The quantities shown indicate the maximum used with all options.

1шт.

34

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

CAPSCREW, 5/8 UNC x 1-1/4 G-5

1шт.

These refs. are used only with the 3-Spool Control Valve.

1шт.

35

19-711

WASHER,5/8", SAE

5/8

2шт.

These refs. are used only with the 3-Spool Control Valve.

1шт.

36

19-5960

LOCK NUT

LOCK NUT, 5/8 UNC G-A

1шт.

These refs. are used only with the 3-Spool Control Valve.

1шт.
