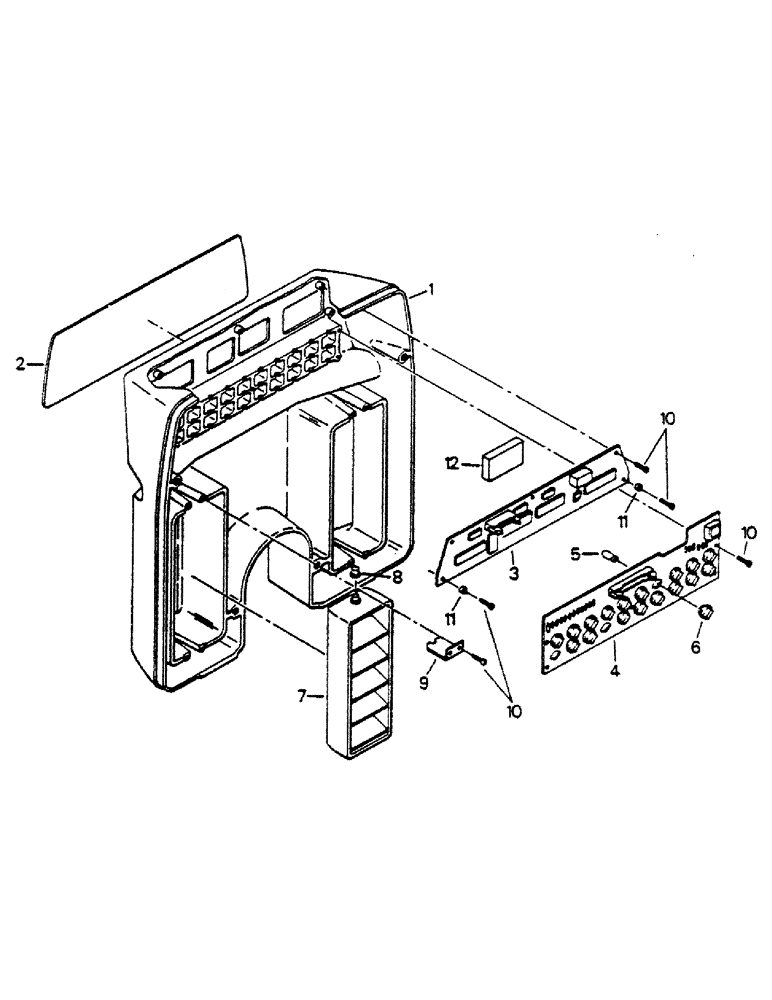

Запчасти Case IH 9170 (01-29) - DASH (10) - CAB

1

60-1543T1

PANEL ASSY.

DASH

1шт.

2

60-2197T2

PANEL

DASH PANEL

1шт.

3

20-1845T1

BOARD

LCD DISPLAY BOARD

1шт.

4

20-1261T2

INDICATOR

LIGHT MODULE

1шт.

5

22-740

BULB

18шт.

6

20-1178T1

HOLDER

LAMP SOCKET

18шт.

7

60-2008T1

DIFFUSER

LOUVER

2шт.

8

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

BEARING

4шт.

9

60-1947T2

BRACKET

4шт.

10

19-5804

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

TAPPING SCREW, #6 UNS x 1/2

18шт.

11

19-5818

SPACER

2шт.

12

60-3392T1

FOAM

1шт.
