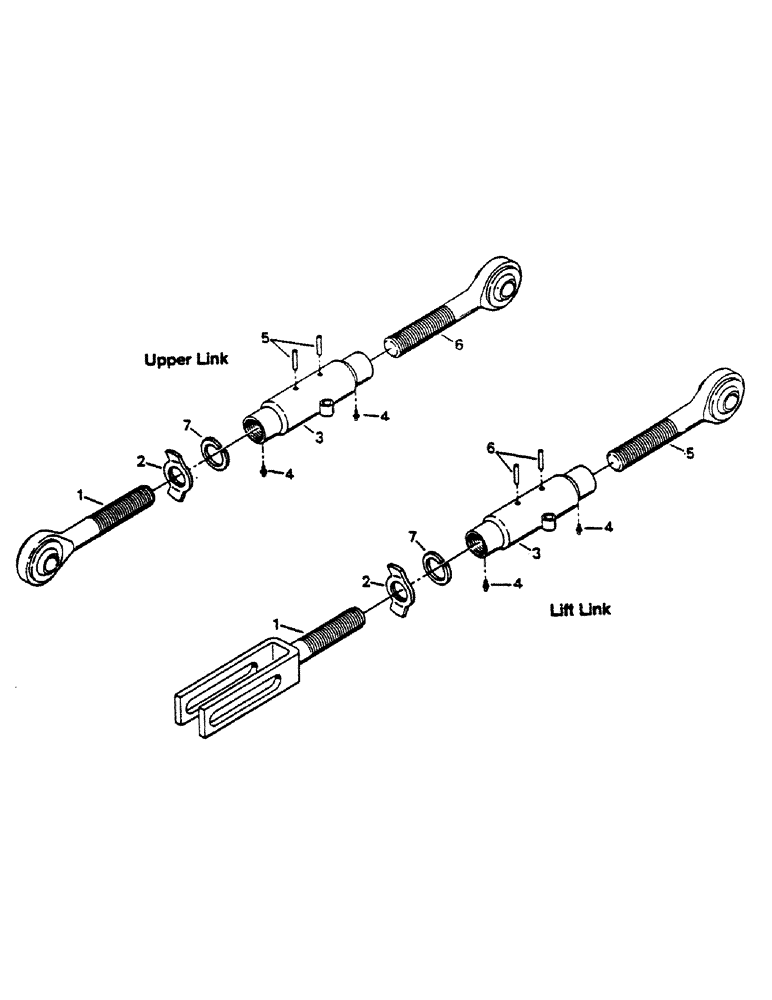

Запчасти Case IH 9170 (10-05) - THREE POINT HITCH COMPONENTS Options & Miscellaneous

2-3589T93

UPPER LINK

ASSY, Includes: Ref. 1 - 7

1шт.

1

2-3652T3

ROD, CONNECTING

BALL & SOCKET

1шт.

2

2-3651T1

LOCK NUT

1шт.

3

70-1832T2

PIPE

TUBE

1шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

5

19-175

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

6

2-3649T3

ROD, CONNECTING

BALL & SOCKET

1шт.

7

19-6098

LOCK WASHER,2"

2

1шт.

2-3591T92

LOWER LINK

LIFT LINK ASSY, Includes: Ref. 1 - 7

1шт.

1

2-3637T2

ROD, CONNECTING

ROD & CLEVIS

1шт.

2

2-3651T1

LOCK NUT

1шт.

3

2-3650T1

TUBE,1.5 - 3.125" OD, 13" Length

1шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

5

2-3638T2

ROD, CONNECTING

BALL & SOCKET

1шт.

6

19-175

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

7

19-6098

LOCK WASHER,2"

2

1шт.
