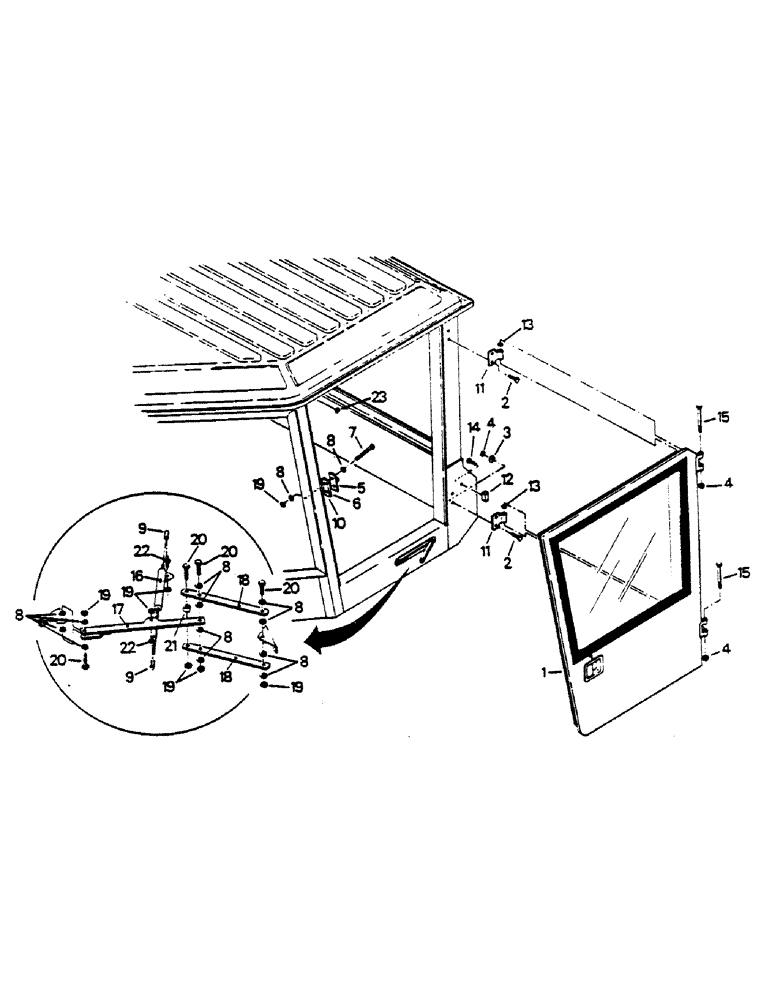

Запчасти Case IH 9170 (01-07) - DOOR AND MOUNTING (10) - CAB

1

DOOR ASSY (See Fig. 1-8)

1шт.

2

9418994

CAPSCREW,3/8" - 16 x 1 1/4", Gr 5

3/8 UNC x 1-1/4 G-5

4шт.

3

19-860

WASHER

HARDENED WASHER, 3/8

2шт.

4

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

4шт.

5

1-3180

HAMMER

STRIKER PIN

1шт.

6

1-4167

SHIM

1шт.

7

9419179

BOLT,5/16" - 18 x 4 1/2", Gr 5

CAPSCREW, 5/16 UNC x 4-1/2 G-5

2шт.

8

19-6002

WASHER

5/16

16шт.

9

1-4713

CLIP

2шт.

10

60-1847T1

SHIM

1шт.

11

60-1848T92

HINGE

2шт.

12

60-1535T1

BLOCK

1шт.

13

2-2280T1

BEARING

THRUST BEARING

2шт.

14

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

2шт.

15

9419187

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

CAPSCREW, 3/8 UNC x 4-3/4 G-5

2шт.

16

60-2305T1

SPRING

GAS SPRING

1шт.

17

60-2425T1

LEVER

1шт.

Ref. 17-18 & 21 are not available through service parts - drawing are available however.

1шт.

18

60-2301T2

ARM

2шт.

Ref. 17-18 & 21 are not available through service parts - drawing are available however.

1шт.

19

19-5777

LOCK NUT

LOCK NUT, 5/16 UNC G-A

8шт.

20

9419032

CAPSCREW,5/16" - 18 x 1 1/4", Gr 5

5/16 UNC x 1-1/4 G-5

4шт.

21

60-2304T2

STOP

1шт.

Ref. 17-18 & 21 are not available through service parts - drawing are available however.

1шт.

22

1-4714

STUD

BALL STUD

2шт.

23

64-146

PLUG

HOLE PLUG

1шт.
