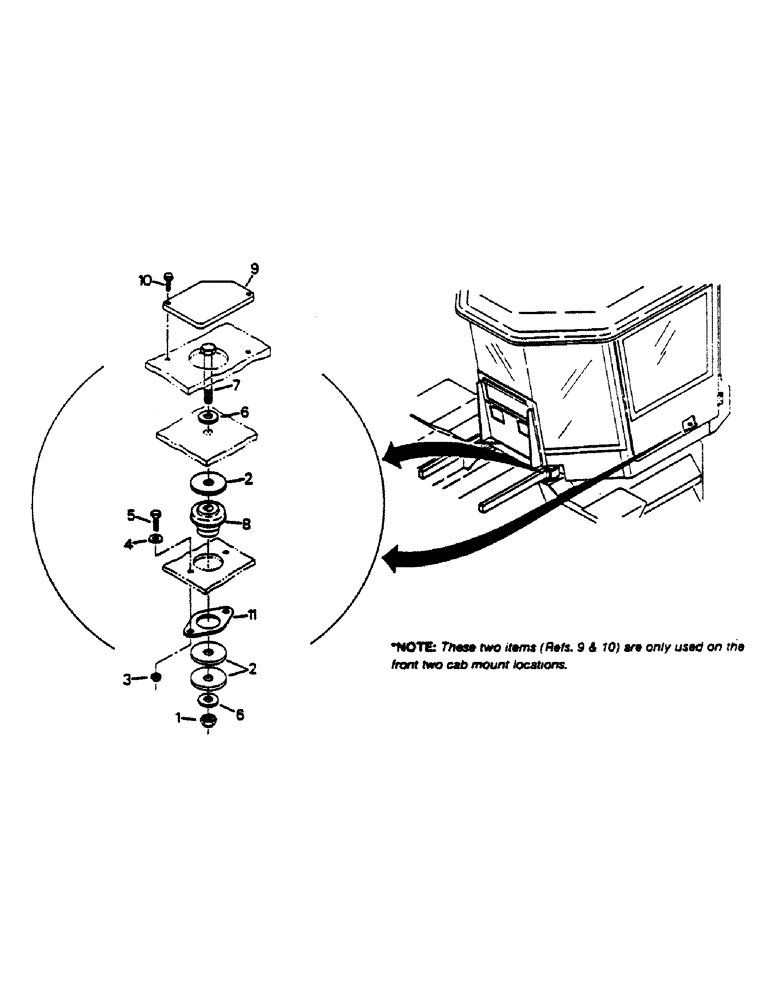

Запчасти Case IH 9170 (01-02) - CAB MOUNTING (10) - CAB

1

19-5405

LOCK NUT

LOCK NUT, 1 UNC G-A

4шт.

2

60-4378T1

WASHER

SNUBBER

12шт.

3

19-653

LOCK NUT

LOCK NUT, 1/2 UNC G-1

8шт.

4

19-463

WASHER,1/2", SAE

1/2

8шт.

5

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

CAPSCREW, 1/2 UNC x 1-3/4 G-8

8шт.

6

19-5739

WASHER

1 x 2 x .15 thk

8шт.

7

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

CAPSCREW, 1 UNC x 5 G-5

4шт.

8

60-4974T1

ANCHOR

RUBBER MOUNT

4шт.

9

60-1177T1

COVER

CAB MOUNT COVER

2шт.

These two refs. (Refs. 9 & 10) are only used on the front two cab mount locations

1шт.

10

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

4шт.

These two refs. (Refs. 9 & 10) are only used on the front two cab mount locations

1шт.

11

60-4654T1

LARGE PLATE

ADAPTER PLATE

4шт.
