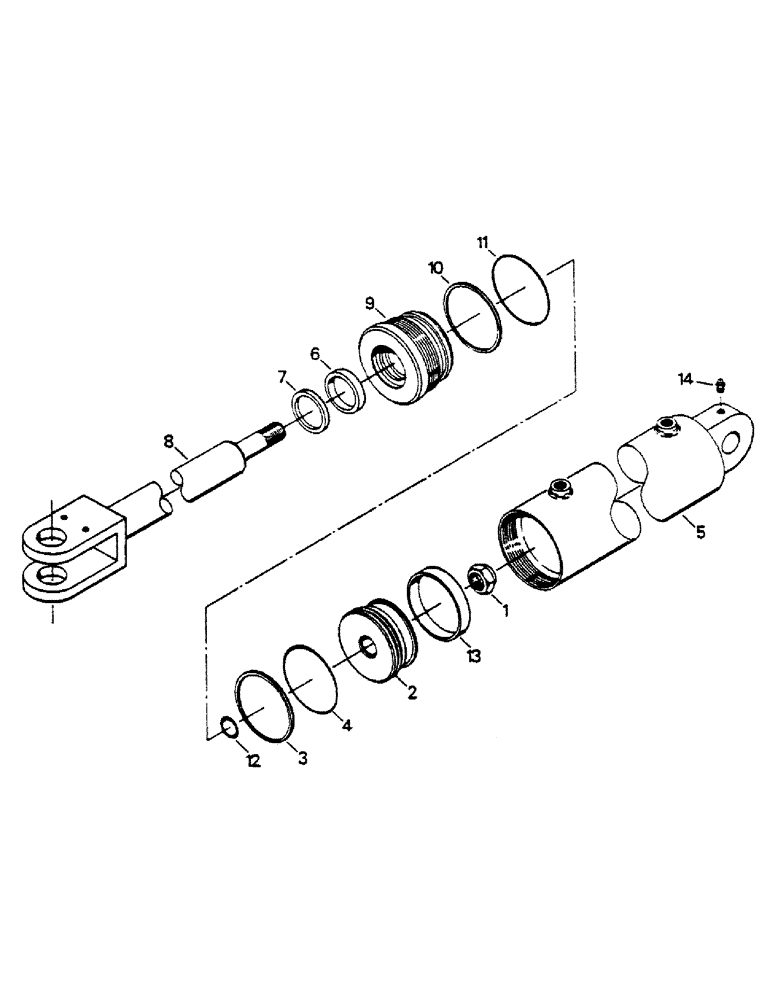

Запчасти Case IH 9170 (10-03) - THREE POINT HITCH HYDRAULIC CYLINDER ASSEMBLY Options & Miscellaneous

2-1127T92

CYLINDER ASSY.

HYDRAULIC CYLINDER ASSY, Includes: Ref. 1 - 14

1шт.

1

19-5582

LOCK NUT

LOCK NUT (Special)

1шт.

2

1-9815T1

PISTON

1шт.

3

1-9855T1

RING, PISTON

PISTON SEAL

1шт.

4

1-9856T1

O-RING,4.487" ID x 0.103" Width

1шт.

5

2-1122T1

JACK BODY

BARREL

1шт.

6

1-9858T1

SEAL

ROD SEAL

1шт.

7

1-9859T1

WIPER SEAL

WIPER

1шт.

8

2-1126T3

PISTON ROD

ROD

1шт.

9

50-1057T1

CYLINDER END CAP

ROD GUIDE

1шт.

10

1-9853T1

SEALING WASHER,118.19mm ID x 127.48mm OD x 1.93mm Thk

BACKUP WASHER

1шт.

11

1-9852T1

O-RING,4.6" ID x 0.21" Width

O-RING

1шт.

12

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING

1шт.

13

1-9854T1

RING

WEAR RING

1шт.

14

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
