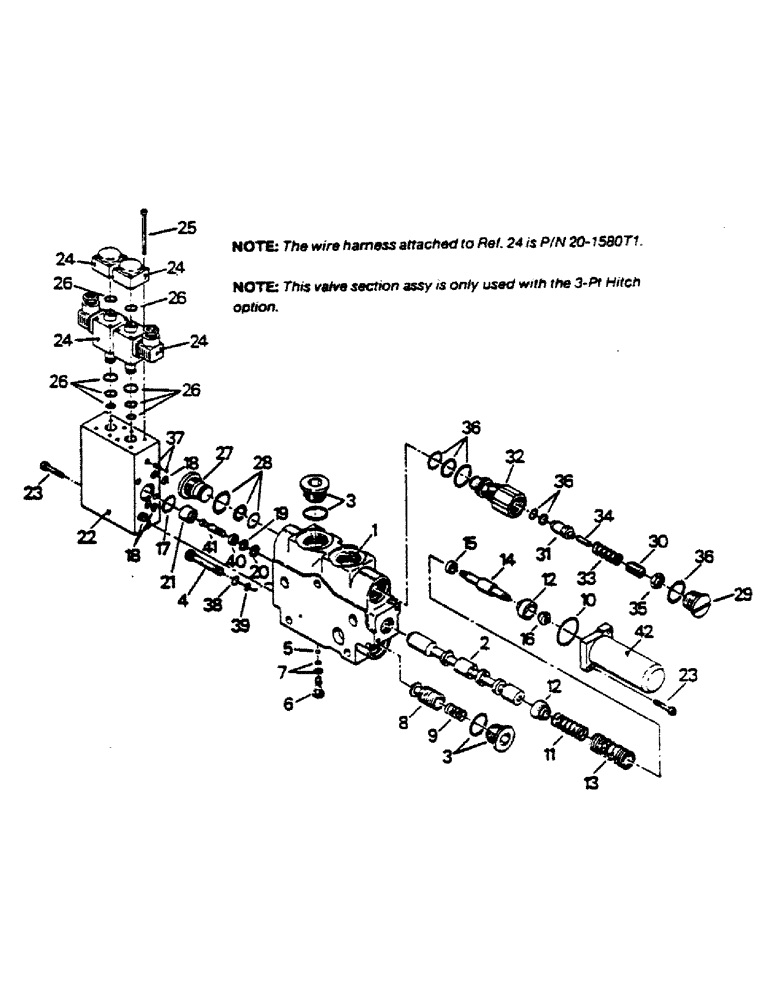

Запчасти Case IH 9170 (08-22) - VALVE SECTION ASSEMBLY, SOLENOID (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-1720T91
VALVE
SECTION ASSY (Solenoid), Includes: Ref. 1 - 42
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
3
31-2094
PLUG
2шт.
4
50-1719T1
HOUSING
SHUTTLE HOUSING
1шт.
5
104916
BALL BEARING,0.1875 mm OD
BEARING
1шт.
50-1649T91
PLUG
SHUTTLE PLUG ASSY, Includes: Ref. 6 and 7
1шт.
6
NSS
NOT SOLD SEPARAT
SHUTTLE SEAT
1шт.
7
50-1654T1
SEAL KIT
KIT
1шт.
8
50-1721T1
VALVE POPPET
LOAD CHECK POPPET
1шт.
9
50-1640T1
SPRING
LOAD CHECK SPRING
1шт.
10
31-2119
O-RING
1шт.
11
50-1644T1
SPRING
CENTERING SPRING
1шт.
12
50-1642T1
SPRING
RETURN
2шт.
13
50-1722T1
SPRING
CENTERING SPRING
1шт.
14
50-1723T1
COUPLING
1шт.
15
50-1724T1
SPACER
1шт.
16
50-1646T1
RETAINER
1шт.
17
31-2120
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
18
31-2115
O-RING
3шт.
19
50-1652T1
WASHER
1шт.
20
19-5979
RING
SNAP RING
1шт.
21
50-1725T1
PISTON
1шт.
22
50-1726T1
HOUSING
SOLENOID HOUSING
1шт.
23
19-960
HEX SOC SCREW,1/4"-20 x 1"
SOCKET HEAD CAPSCREW, 1/4 UNC x 1 G-8
5шт.
50-1639T91
VALVE
E.P.P. VALVE ASSY, Includes: Ref. 24 - 26
1шт.
24
NSS
NOT SOLD SEPARAT
SOLENOID VALVE
1шт.
25
40-1174
HEX SOC SCREW,M4 x 70mm, Gr 10.9
SOCKET HEAD CAPSCREW (Metric)
4шт.
26
50-1864T1
SEAL KIT
SEAL KIT
1шт.
50-1650T91
PLUG
ASSY, Includes: Ref. 27 and 28
1шт.
27
NSS
NOT SOLD SEPARAT
PLUG
1шт.
28
50-1656T1
SEAL KIT
KIT
1шт.
50-1727T91
ASSEMBLY
RELIEF ASSY, Includes: Ref. 29 - 36
1шт.
29
50-1660T1
COVER
1шт.
30
50-1764T1
ADJUSTING SCREW
1шт.
31
50-1765T1
POPPET
1шт.
32
NSS
NOT SOLD SEPARAT
RELIEF HOUSING
1шт.
33
50-1766T1
SPRING
1шт.
34
19-5645
PIN
SPRING PIN, 3/16 x 5/8
1шт.
35
50-1768T1
NUT
1шт.
36
50-1769T1
SEAL KIT
SEAL KIT
1шт.
37
50-2566T1
PLUG
EXPANSION PLUG
4шт.
38
50-1755T1
O-RING
1шт.
39
31-2121
O-RING,-010, 90 Duro, .239" ID x .070" Thk
1шт.
40
50-1653T1
WASHER
1шт.
41
50-1636T1
COUPLING
1шт.
42
50-1728T1
HOUSING
1шт.
Выбрано товаров: 47
