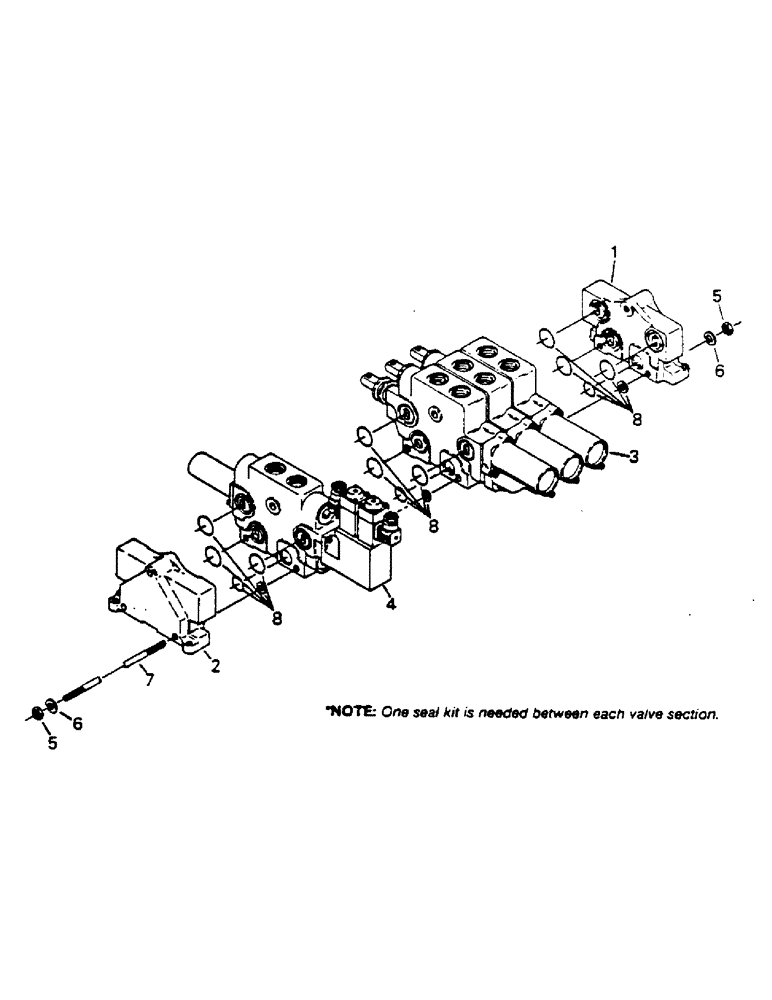

Запчасти Case IH 9170 (08-19) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-2218T91

VALVE

HYDRAULIC CONTROL VALVE ASSY (3-spool)

1шт.

50-2220T91

VALVE, CONTROL

HYDRAULIC CONTROL VALVE ASSY (3-spool with 3-pt hitch)

1шт.

50-2972T91

VALVE, CHECK

HYDRAULIC CONTROL VALVE ASSY (3-spool with 3-pt hitch) (Includes ref 9)

1шт.

50-2219T91

VALVE, CONTROL

HYDRAULIC CONTROL VALVE ASSY (4-spool)

1шт.

1

50-1730T1

COVER

VALVE COVER

1шт.

2

50-1731T1

COVER

VALVE COVER

1шт.

3

VALVE SECTION ASSY (Standard) (Qty 3 with 3-spool valve) (see Fig. 8-20)

4шт.

4

VALVE SECTION ASSY (Solenoid) (Only used with 3-pt hitch) (See Fig. 8-22)

1шт.

5

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

6шт.

6

19-117

LOCK WASHER,3/8"

3/8"

6шт.

7

19-5978

STUD

(3-spool valve)

3шт.

19-5977

STUD

(3-spool valve with 3-pt hitch & 4-spool valve)

1шт.

8

2-3792T1

SEAL KIT

SEAL KIT (Qty varies)

1шт.

One seal kit is needed between each valve section.

1шт.

9

20-1580T1

HARNESS

CONTROL VALVE WIRE HARNESS (Only used with 3-pt hitch) (Not shown)

1шт.
