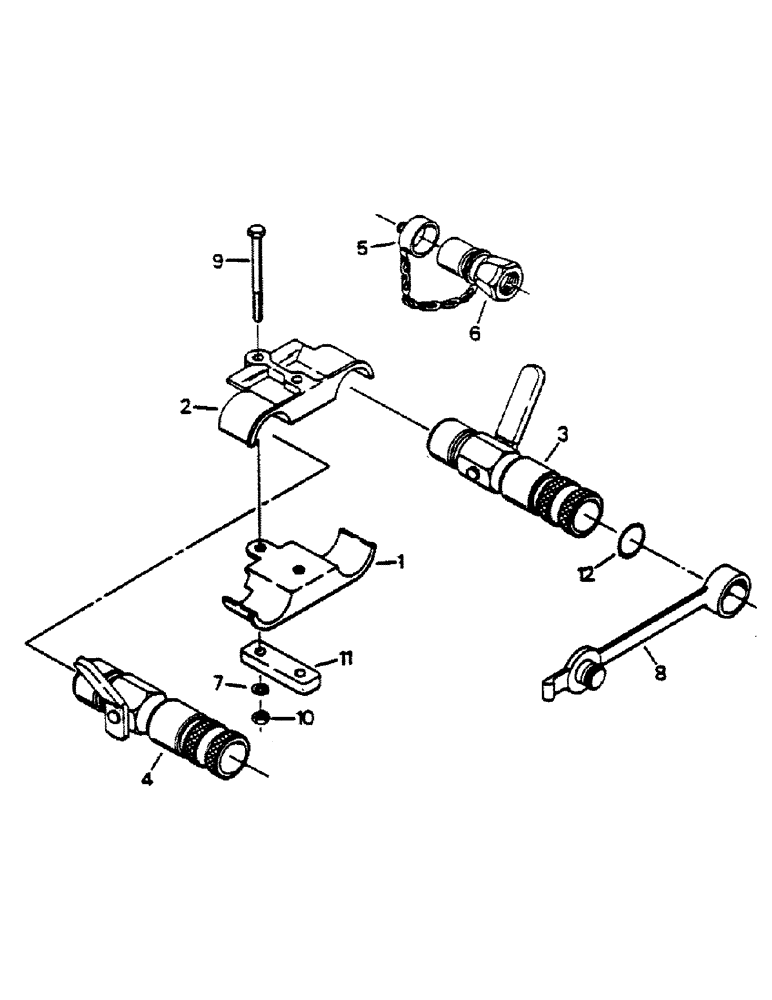

Запчасти Case IH 9170 (08-18) - COUPLER ASSEMBLY (07) - HYDRAULICS

50-1328T92

ASSEMBLY

COUPLER ASSY, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 and P/N 19-78

1шт.

50-1399T92

COUPLING

COUPLER ASSY, Includes: Ref. 1, 2, 3, 4, 5, 6, 7, 8, 10, 12 and P/N 19-395

1шт.

1

50-1354T1

BOTTOM CLAMP

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

1

50-1354T1

BOTTOM CLAMP

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

2

50-1455T1

CLAMP BRACKET

TOP CLAMP

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

2

50-1455T1

CLAMP BRACKET

TOP CLAMP

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

3

50-1459T91

PUSH-PULL COUPLING

FEMALE COUPLER (Red) Includes Ref. 12

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

3

50-1459T91

PUSH-PULL COUPLING

FEMALE COUPLER, Red, Includes ref. 12

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

4

50-1460T91

PUSH-PULL COUPLING

FEMALE COUPLER (Yellow) Includes Ref. 12

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

4

5-1460T91

FEMALE COUPLER, Yellow, Includes ref. 12

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

5

1-7142

CAP

RUBBER CAP

2шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

5

1-7142

CAP

RUBBER CAP

4шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

6

1-7141

FITTING

MALE TIP ASSY

2шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

6

1-7141

FITTING

MALE TIP ASSY

4шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

7

19-117

LOCK WASHER,3/8"

3/8"

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

8

50-2267T1

PLUG

DUST PLUG

2шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

8

50-2267T1

PLUG

DUST PLUG

4шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

9

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW, 3/8 UNC x 3 G-5

2шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

19-395

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

CAPSCREW, 3/8 UNC x 5-1/2 G-5

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

10

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

11

50-1604T1

SPACER

1шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

12

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING

2шт.

Part of Coupler Assembly, P/N 50-1328T92

1шт.

12

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING

4шт.

Part of Coupler Assembly, P/N 50-1399T92

1шт.
