(08-17) - PRIORITY VALVE ASSEMBLY

Запчасти Case IH 9170 (08-17) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS

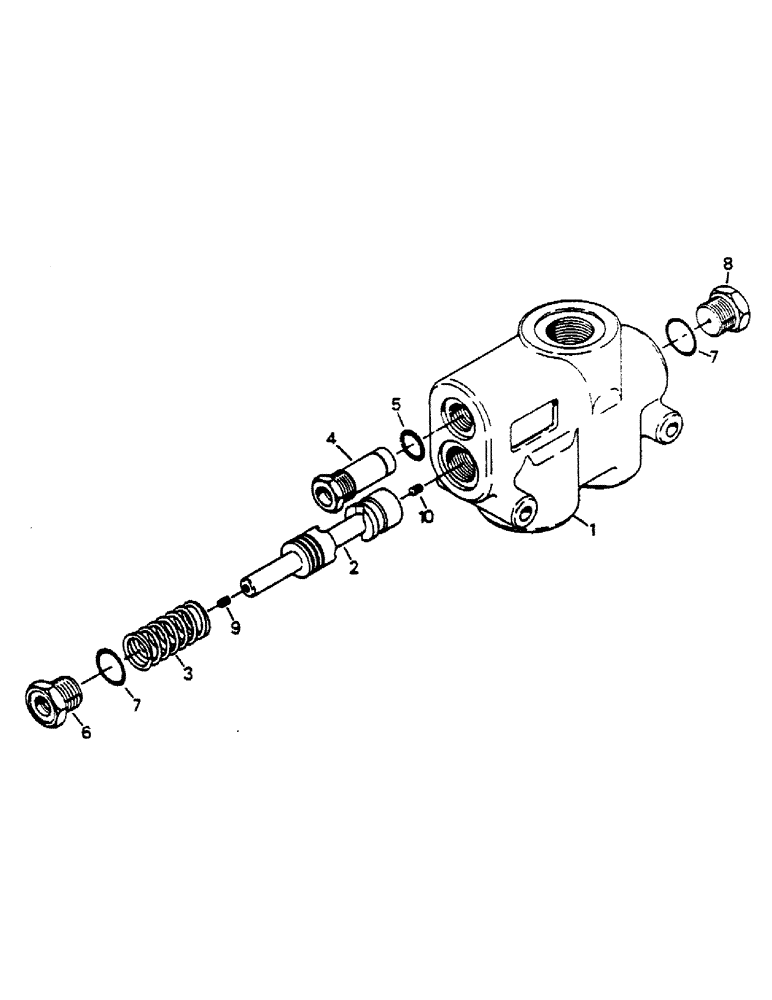

Схема запчастей Case IH 9170 - (08-17) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS
7
8
1
9
2
3
7
10
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2543T91

VALVE

PRIORITY VALVE ASSY, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING

1шт.

4

50-3035T91

CARTRIDGE

RELIEF VALVE CARTRIDGE ASSY (Includes ref. 5)

1шт.

5

50-1872T1

O-RING

1шт.

6

50-2996T1

CONNECTOR, ELEC

PLUG WITH ORIFICE

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

50-2995T1

PLUG

WITH ORIFICE

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG WITH ORIFICE

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG

1шт.
