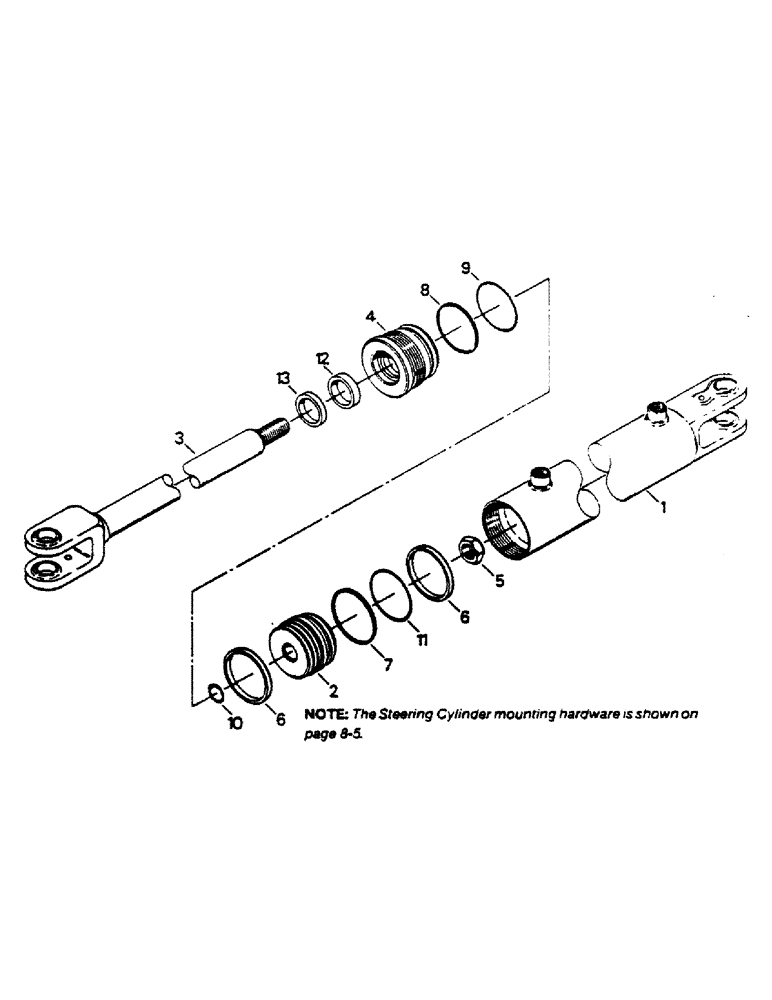

Запчасти Case IH 9170 (08-16) - STEERING CYLINDER ASSEMBLY (07) - HYDRAULICS

50-1175T91

CYLINDER

STEERING CYLINDER ASSY, Includes: Ref. 1 - 13

1шт.

35-1136T91

SEAL KIT

SEAL KIT (Includes refs. 6-13)

1шт.

1

50-1177T1

TUBE

BARREL

1шт.

2

1-7031

PISTON

1шт.

3

50-1180T3

ROD

1шт.

4

1-7772

CYLINDER END CAP

ROD GUIDE

1шт.

5

19-5578

LOCK NUT

LOCK NUT (Special)

1шт.

6

18-1499

RING

WEAR RING

2шт.

7

1-3905

SEAL

PISTON SEAL

1шт.

8

2-3764T1

BACK-UP RING

BACKUP WASHER

1шт.

9

18-1496

GASKET

O-RING

1шт.

10

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING

1шт.

11

1-3908

GASKET

O-RING

1шт.

12

1-7796

SEAL

ROD SEAL

1шт.

13

1-7768

WIPER SEAL

WIPER

1шт.
