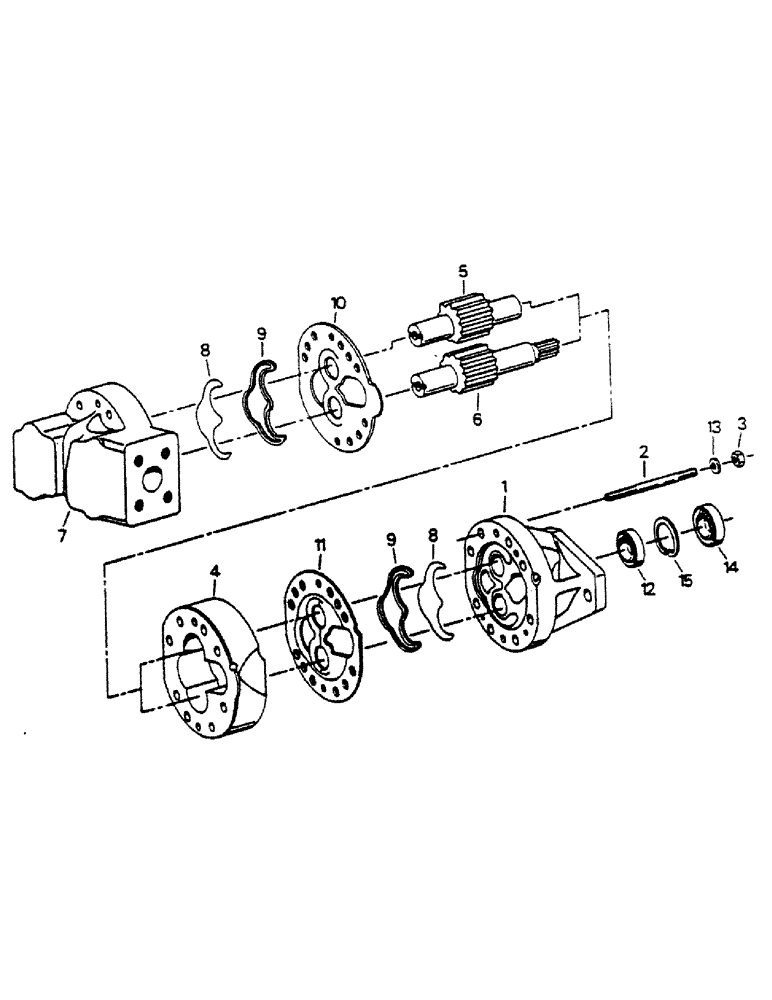

Запчасти Case IH 9170 (08-15) - CHARGE PUMP ASSEMBLY (07) - HYDRAULICS

50-2917T91

PUMP

CHARGE PUMP ASSY, Includes: Ref. 1 - 15

1шт.

50-2317T1

SEAL KIT

KIT, Includes: Ref. 8, 9, 12 and 14

1шт.

1

33-1331T1

HOUSING

FRONT HOUSING

1шт.

2

33-1332T1

STUD

8шт.

3

19-92

NUT,7/16"-20, G2

7/16 UNF G-B

8шт.

4

33-1333T1

VALVE BLOCK

CENTER SECTION

1шт.

5

33-1334T1

GEAR

IDLER GEAR

1шт.

6

33-1335T1

GEAR

DRIVE GEAR

1шт.

7

50-2324T1

CAP

REAR HOUSING

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND SEAL

2шт.

Part of Seal KIt, P/N 50-2317T1

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER SEAL

2шт.

Part of Seal KIt, P/N 50-2317T1

1шт.

10

50-2116T1

PLATE

WEAR PLATE

1шт.

11

50-2112T1

PLATE

WEAR PLATE

1шт.

12

50-2111T1

SEAL

(Also sold separately)

1шт.

Part of Seal KIt, P/N 50-2317T1

1шт.

13

19-118

LOCK WASHER,7/16"

7/16"

8шт.

14

50-2109T1

SEAL

(Also sold separately)

1шт.

Part of Seal KIt, P/N 50-2317T1

1шт.

15

50-2110T1

SNAP RING

1шт.
