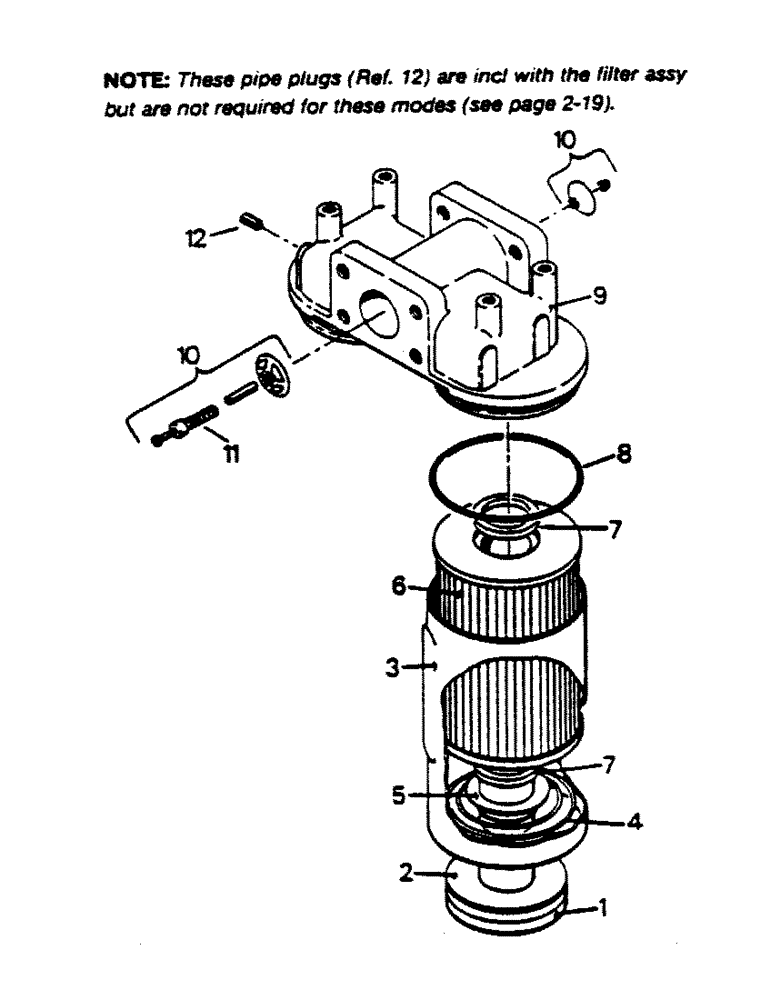

Запчасти Case IH 9170 (08-14) - OIL FILTER ASSEMBLY (07) - HYDRAULICS

50-1389T91

FILTER

OIL FILTER ASSY, Includes: Ref. 1 - 12

1шт.

1

1-6200

POST

CENTER POST

2шт.

2

18-96

GASKET

CENTER POST GASKET

2шт.

3

18-95

HOUSING

FILTER HOUSING

2шт.

4

18-94

SPRING

CONICAL SPRING

2шт.

5

18-93

WASHER

BACKUP WASHER

2шт.

6

50-1911T91

HYDRAULIC OIL FILTER

FILTER ELEMENT KIT (Includes refs. 2, 7 & 8)

2шт.

7

18-92

SEAL

FILTER ELEMENT SEAL

4шт.

8

18-91

O-RING

HOUSING SEAL

2шт.

9

NSS

NOT SOLD SEPARAT

FILTER HEAD

1шт.

10

50-1876T91

BY-PASS VALVE

BY-PASS ASSY KIT (Includes ref. 11)

1шт.

11

50-1877T1

SPRING

1шт.

12

31-38

PLUG

PIPE PLUG, 1/8 NPT

2шт.

These pipe plugs (Ref. 12) are included with the filter assy but are not required for these modes (see Fig. 2-19).

1шт.
