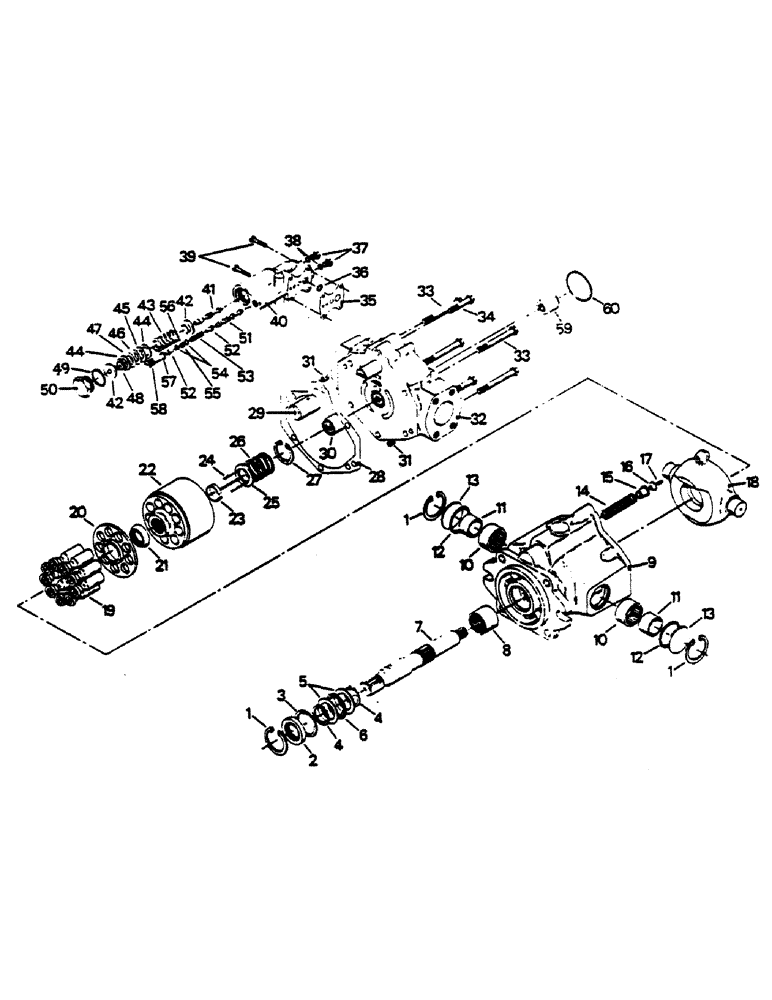

Запчасти Case IH 9170 (08-12) - HYDRAULIC PUMP ASSEMBLY (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

50-1452T92

PUMP

HYDRAULIC PUMP ASSY, Includes: Ref. 1 - 60

1шт.

50-1802T1

SEAL KIT

KIT, Includes: Ref. 1, 2, 4, 12, 28, 35, 36 and 38

1шт.

1

19-6014

SNAP RING

3шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

2

50-1779T1

SEAL

1шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

3

50-1780T1

WASHER

1шт.

4

19-6015

WASHER

SNAP RING

2шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

5

50-1782T1

THRUST WASHER

THRUST RACE

2шт.

6

50-1783T1

THRUST BEARING

THRUST BEARING

2шт.

7

50-1778T1

SHAFT

INPUT SHAFT

1шт.

8

50-1786T1

ROLLER BEARING

1шт.

9

50-1785T91

HOUSING

ASSY Includes Ref. 8

1шт.

10

50-1787T1

NEEDLE BEARING

TRUNNION BEARING

2шт.

11

50-1788T1

RACE

TRUNNION RACE

2шт.

12

50-1789T1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

13

50-1790T1

COVER

TRUNNION COVER

2шт.

14

50-1791T1

SPRING

1шт.

15

50-1792T1

COLLAR

SPRING COLLAR

1шт.

16

50-1793T1

BUTTON

PIVOT BUTTON

1шт.

17

455160

LOCK PIN,3/16" x 1/2", Slotted

Pin, 3/16" x 1/2", Slotted

1шт.

18

50-1795T1

PLATE

CAM PLATE

1шт.

50-1796T1

KIT

ROTATING KIT ASSY, Includes: Ref. 19 - 27

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON

9шт.

20

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

22

NSS

NOT SOLD SEPARAT

BARREL

1шт.

23

NSS

NOT SOLD SEPARAT

PIN KEEPER

1шт.

24

NSS

NOT SOLD SEPARAT

PIN

3шт.

25

NSS

NOT SOLD SEPARAT

WASHER

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

28

50-1797T1

GASKET

1шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

29

59-1798T1

SPRING COLLAR

1шт.

50-2963T91

BACK PLATE

ASSY, Includes: Ref. 30 - 32

1шт.

30

50-1800T1

NEEDLE BEARING

1шт.

31

50-1801T1

DOWEL

PIN

2шт.

32

NSS

NOT SOLD SEPARAT

BACK PLATE

1шт.

33

19-734

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

CAPSCREW, 7/16 UNC x 3-1/4 G-5

4шт.

34

19-35

BOLT,7/16" - 14 x 2", Gr 5

CAPSCREW, 7/16 UNC x 2 G-5

2шт.

35

50-1803T1

GASKET

1шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

36

50-1804T1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

50-1805T91

EQUALIZER

PRESS, flow compensator assy, Includes: Ref. 37 - 58

1шт.

37

50-1806T1

PLUG

2шт.

38

50-1823T1

O-RING

2шт.

Part of Seal Kit, P/N 50-1802T1

1шт.

39

19-1543

CAPSCREW,Flg, 1/4" - 20 x 1 1/4", Gr 8

12 PT CAPSCREW, 1/4 UNC x 1-1/4 G-8

1шт.

40

NSS

NOT SOLD SEPARAT

COMPENSATOR BODY

1шт.

41

NSS

NOT SOLD SEPARAT

PRESS, spool

1шт.

42

50-1807T1

CAP

SPRING PIVOT CAP

2шт.

43

50-1808T1

SPRING

1шт.

44

50-1809T1

WASHER

(.030)

1шт.

45

50-1810T1

WASHER

(.005)

1шт.

46

50-1811T1

WASHER

(.010)

1шт.

47

50-1812T1

WASHER

(.015)

1шт.

48

50-1813T1

WASHER

(.059)

1шт.

49

50-1814T1

O-RING

1шт.

50

50-1815T1

PLUG

ADJUSTMENT END PLUG

1шт.

51

NSS

NOT SOLD SEPARAT

FLOW SPOOL

1шт.

52

50-1816T1

SPRING

PIVOT

2шт.

53

50-1817T1

SPRING

1шт.

54

50-1818T1

WASHER

WASHER

1шт.

55

50-1819T1

WASHER

WASHER (.010)

1шт.

56

50-1820T1

WASHER

(.005)

1шт.

57

50-1821T1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING

1шт.

58

50-1822T1

PLUG

SPRING PIVOT PLUG

1шт.

59

50-2964T1

COUPLING

COUPLER

1шт.

60

50-1849T1

O-RING

1шт.

Выбрано товаров: 73
