(08-11) - STEERING CONTROL VALVE ASSEMBLY

Запчасти Case IH 9170 (08-11) - STEERING CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

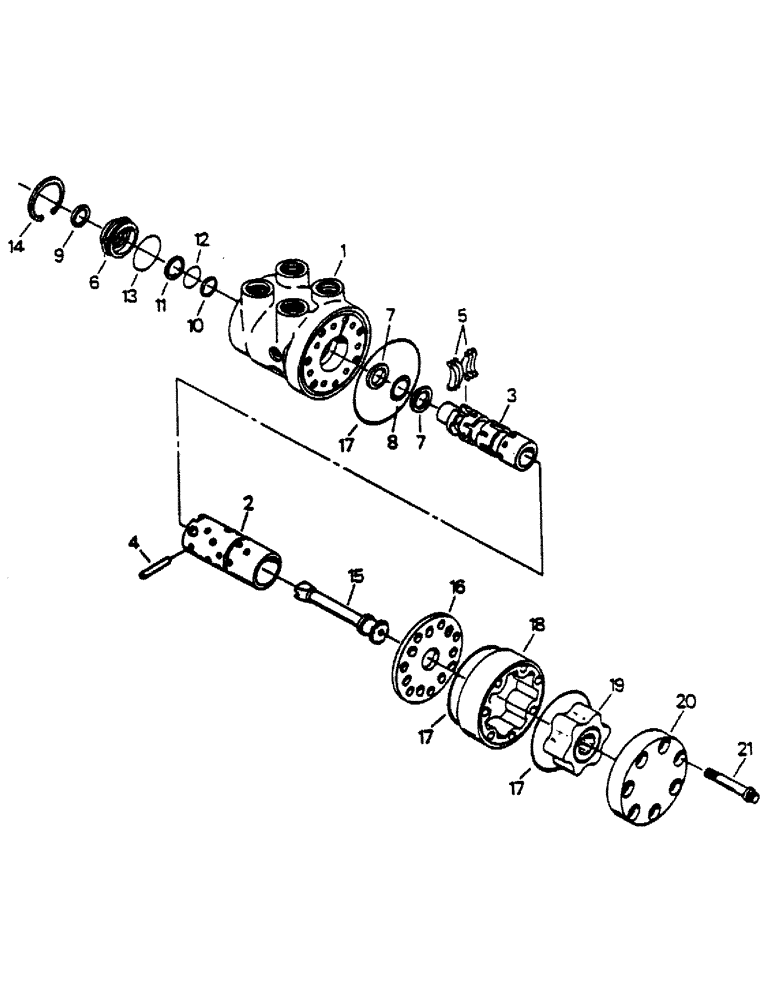

Схема запчастей Case IH 9170 - (08-11) - STEERING CONTROL VALVE ASSEMBLY (07) - HYDRAULICS
17
11
21
4
18
14
5
1
10
20
19
17
3
9
13
16
6
15
7
2
12
8
17
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2542T91

PUMP

STEERING CONTROL VALVE ASSY, Includes: Ref. 1 - 21

1шт.

NAP

CONTROL PARTS ASSY, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

CONTROL SLEEVE

1шт.

3

NSS

NOT SOLD SEPARAT

CONTROL SPOOL

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING

6шт.

6

50-2701T1

RETAINER

FRONT RETAINER

1шт.

7

2-2064

RING RACE

THRUST RACE

2шт.

8

18-1693

NEEDLE BEARING

NEEDLE THRUST BEARING

1шт.

9

18-137

OIL SEAL

1шт.

10

50-2702T1

SEAL

1шт.

11

50-2703T1

BACK-UP RING

BACKUP RING

1шт.

12

50-2704T1

O-RING

1шт.

13

50-2705T1

O-RING

1шт.

14

2-1354

RING, SNAP

SNAP RING

1шт.

15

50-2706T1

SHAFT

DRIVE SHAFT

1шт.

16

50-2707T1

WEAR PLATE

1шт.

17

50-2708T1

O-RING

3шт.

50-2990T91

ROTOR ASSY.

GEROTOR ASSY

1шт.

18

NSS

NOT SOLD SEPARAT

GEROTOR RING

1шт.

19

NSS

NOT SOLD SEPARAT

GEROTOR STAR

1шт.

20

50-2710T1

CAP

END CAP

1шт.

21

19-6253

12 PT SCREW,Flg, 1/2" - 20 x 3 1/2", Gr 8

12-PT CAPSCREW, 1/2 UNF x 3-1/2 G-8

7шт.
