Артикул
Название
Примечание
Количество

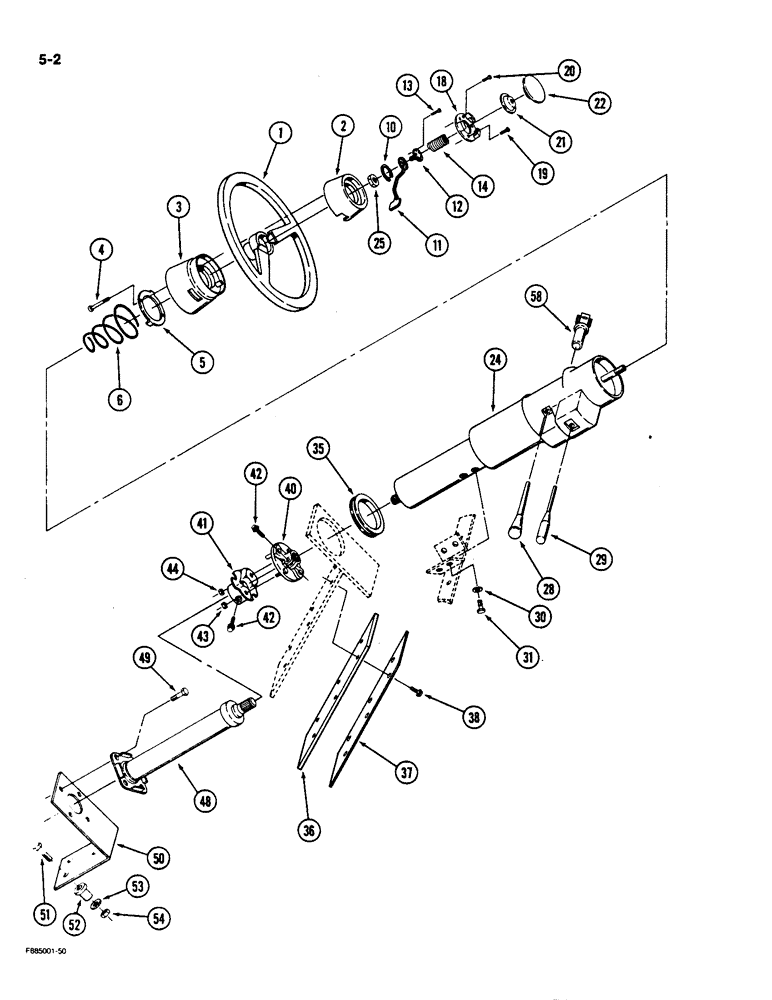

2-3755T92
STEERING WHEEL
WHEEL ASSEMBLY - steering, Includes: Ref. 1 - 6
1шт.
1
60-1827T2
WHEEL (STEERING)
WHEEL - steering
1шт.
2
60-1828T1
CAP
COVER - hub, upper
1шт.
3
60-1829T1
COVER
- hub, lower
1шт.
4
19-5791
SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"
SCREW - tapping, pan head, No. 6 x 1-1/4 inch
2шт.
5
60-1830T1
RETAINER
- spring
1шт.
6
60-1831T1
SPRING
- compression telescoping
1шт.
11
60-1951T1
CONTROL LEVER
LEVER - release, telescoping
1шт.
12
18-1565
LOCK SCREW,5/16" - 18 x 0.95"
SCREW - release, telescoping
1шт.
13
488-1104
SCREW,Cross Flat Hd, #10-32 x 1/4"
- machine, flat head, No. 10 NF x 1/4 inch
2шт.
14
60-1820T1
SPRING
- horn button
1шт.
18
60-1819T1
PLATE
- base
1шт.
.19
9414743
SCREW,Tap, Gr 5
- tapping, pan head, No. 10 x 5/8 inch
3шт.
20
260-14436
SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"
SCREW - tapping, pan head, No. 8 x 2-1/4 inch
1шт.
21
60-1821T1
CUPEL
CONTACT - horn
1шт.
22
60-5911T1
BUTTON
- horn
1шт.
24
REF
INSTRUCTION
COLUMN ASSEMBLY - steering, See Figure 5-04
1шт.
25
19-1026
JAM NUT,9/16" - 18, Gr 5
- hex, 9/16 inch NF
1шт.
28
18-1567T1
CONTROL LEVER
LEVER - tilt actuating
1шт.
29
1-4188T1
CONTROL LEVER
LEVER - blinker, wiper, washer and hi-low beam
1шт.
30
19-700
WASHER,5/16"
- flat, 5/16 x 7/8 x 5/64 inch
4шт.
31
40-1231
BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8
BOLT - hex, M8 x 1.25 x 16 mm
4шт.
35
32-327
GROMMET
- column
1шт.
36
60-4751T1
SEAL
- steering column access
1шт.
37
60-4459T1
COVER
PLATE - cover, access
1шт.
38
281-13712
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
SCREW - tapping, flanged head, 1/4 NC x 3/4 inch
6шт.
60-4390T91
COUPLING
COUPLER ASSEMBLY - steering (Order components), Includes: Ref. 40 - 44
1шт.
40
60-4436T1
FLANGE
- coupling, column
1шт.
41
60-4437T1
FLANGE
- coupling, steering shaft
1шт.
42
7807271
SCREW,3/8" - 24 x 1.22"
- 12 point, locking
2шт.
43
451399
NUT,5/16"-18, G5, Hvy
- hex, 5/16 inch NF
1шт.
44
9420821
NUT
- hex, 3/8 inch NF
1шт.
48
60-4230T1
STEERING COLUMN
SHAFT ASSEMBLY - steering
1шт.
49
19-17
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
- hex, 3/8 NC x 1 inch
4шт.
50
60-4231T1
SUPPORT
BRACKET - mounting, steering shaft
1шт.
51
19-19
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
3шт.
52
196504C1
BUSHING
MOUNT - isolator, rubber
3шт.
53
19-107
WASHER
- flat, 3/8 x 1 x 5/64 inch
3шт.
54
232-4136
LOCK NUT,3/8"-16, GC
NUT - hex, lock, 3/8 inch NC
3шт.
58
22-752T1
IGNITION SWITCH
LOCK ASSEMBLY - ignition
1шт.
Keys for ignition lockset are Briggs and Stratton made to American Motors key code. Any tractor ignition key will open any tractor door but ignition keys are not interchangeable. Effective 1-21-87, key codes will be recorded and placed in over head console compartment in cab.
1шт.
A77313
SET OF 2 KEYS
ignition, for both ignition and door.
1шт.
Выбрано товаров: 43
