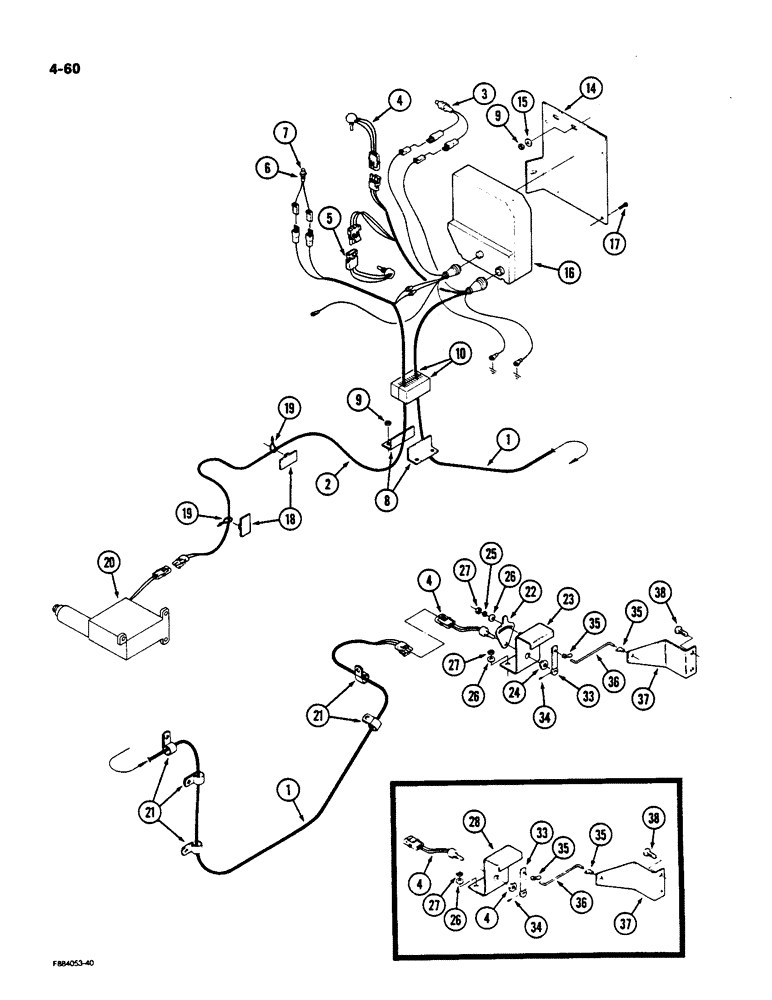

Запчасти Case IH 9170 (4-60) - THREE POINT HITCH HARNESSES (04) - ELECTRICAL SYSTEMS

1

20-2505T2

HARNESS

ASSEMBLY - three point hitch, control

1шт.

2

20-2399T2

HARNESS

ASSEMBLY - three point hitch

1шт.

3

1-7128

IGNITION SWITCH

SWITCH ASSEMBLY - electronic memory actuating

1шт.

4

20-2093T1

POTENTIOMETER

Assembly, Electrical

1шт.

5

20-2125T2

POTENTIOMETER

Assembly, Electrical

2шт.

6

60-6111T1

INDICATOR

LIGHT ASSEMBLY - indicator

1шт.

7

60-6154T1

BULB

- lamp

1шт.

8

60-6065T1

ANGLE BAR

ANGLE - retaining foam

2шт.

9

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

7шт.

10

60-6066T1

FOAM

- sealing

2шт.

14

50-2853T1

PLATE

- mounting, controller

1шт.

15

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

3шт.

16

20-2396T93

BOX

CONTROLLER - three point hitch, electronic

1шт.

17

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, cross pan head, No. 10 x 3/4 inch

4шт.

18

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

19

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

20

REF

INSTRUCTION

VALVE - three point hitch, See Figure 8-37

1шт.

21

32-161

COLLAR CLAMP

CLAMP - harness, retaining

5шт.

22

60-6118T1

BRACKET

Potentiometer Adjusting, P.I.N. JCB0002056 and Ater

1шт.

23

60-6125T1

BRACKET

- potentiometer, mounting (P.I.N. JCB0002056 after)

1шт.

24

60-6119T1

NUT

Potentiometer, P.I.N. JCB0002056 and After

1шт.

25

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch (P.I.N. JCB0002056 and after)

1шт.

26

19-105

WASHER,1/4", SAE

- flat, 1/4 x 47/64 x 1/16 inch

3шт.

27

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

28

60-5918T1

BRACKET

Potentiometer, Mounting, Serial Range: Prior-P.I.N.JCB0002056

1шт.

33

60-5917T1

ARM

Link Assembly, Actuating, Potentiometer

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW - set, No. 10 NC x 1/4 inch

1шт.

35

60-2404T1

RETAINER

- linkage rod

2шт.

36

60-5919T1

ROD

Linkage, Potentiometer Actuating

1шт.

37

60-5915T1

SPACER

BRACKET - linkage rod, mounting

1шт.

38

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8 NC x 1 inch

2шт.
