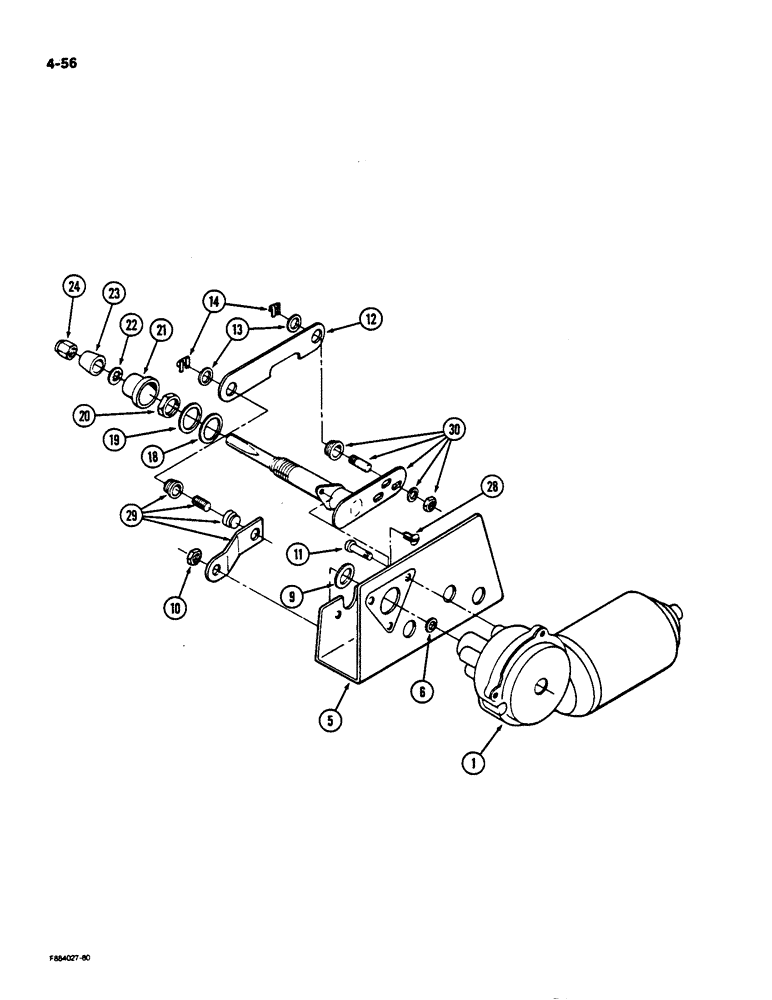

Запчасти Case IH 9170 (4-56) - WIPER DRIVE ASSEMBLY, REAR WINDOW (04) - ELECTRICAL SYSTEMS

1

F96765

WIPER MOTOR

MOTOR ASSEMBLY - wiper

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

1-9415

SPACER

- motor mounting

3шт.

9

1-2678

WASHER

- wave

1шт.

10

F44452

LOCK NUT

- hex, keps

1шт.

11

D72849

SCREW

- machine, keps, round head

1шт.

12

D71427

LINK,85.85mm L

- connector

1шт.

13

A22431

WASHER

SPACER - pivot shaft

2шт.

14

1-2685

CLIP

- spring, retainer

2шт.

18

D71417

SPECIAL WASHER

WASHER - flat

1шт.

19

D71418

WASHER

- flat

1шт.

20

D71419

NUT

- hex,jam

1шт.

21

1-9419

CAP

- seal, shaft

1шт.

22

1-9422

WASHER

- lock, internal tooth

1шт.

23

1-9420

NUT

DRIVER - knurled, wiper arm

1шт.

24

D71422

NUT

- hex, cap

1шт.

28

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, keps, pan head

2шт.

29

F64210

LEVER

- drive

1шт.

30

1-2668

SHAFT

DRIVE - shaft and pivot arm

1шт.
