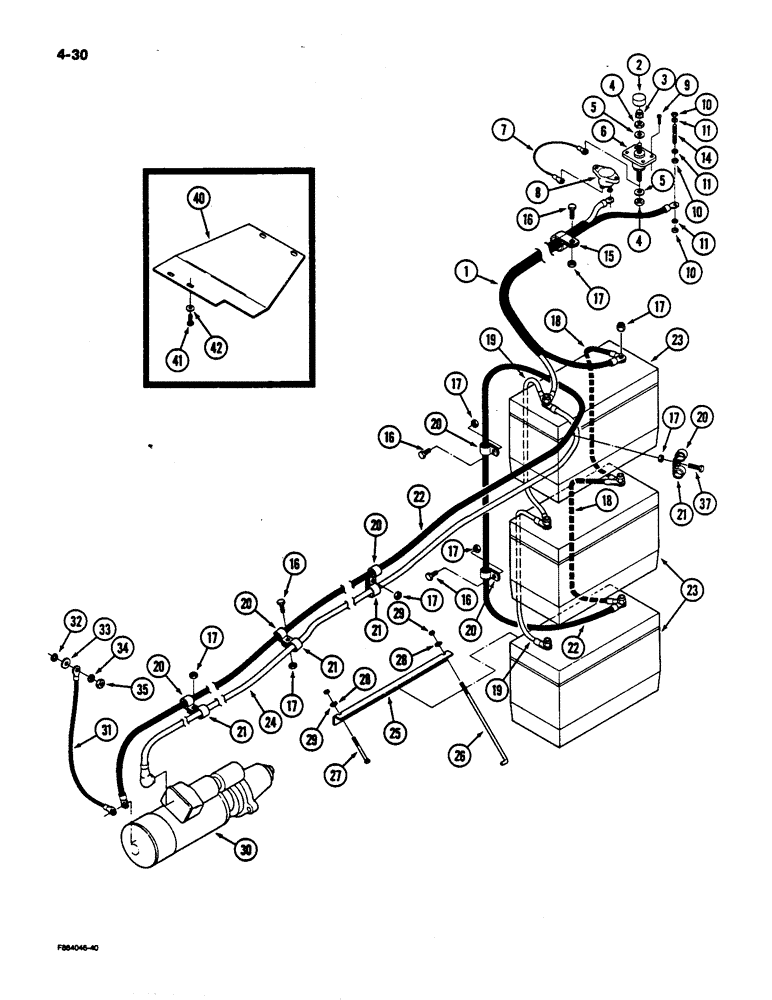

Запчасти Case IH 9170 (4-30) - BATTERIES AND CABLES, 855 ENGINE (04) - ELECTRICAL SYSTEMS

1

20-2458T1

HARNESS

ASSEMBLY - cab power

1шт.

2

20-2469T1

INSULATOR

- junction block

1шт.

3

20-2471T1

CAP

- junction block

1шт.

4

19-289

JAM NUT,1/2" - 13, Gr 5

- hex, jam, 1/2 inch NC

2шт.

5

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 1/16 inch

2шт.

6

20-1087T1

BLOCK

- junction

1шт.

7

20-2023T1

ELECTRICAL WIRE

WIRE ASSEMBLY - junction block to circuit breaker

1шт.

8

20-2041T1

CIRCUIT-BREAKER

CIRCUIT BREAKER - electrical

1шт.

9

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head, No. 10 x 3/4 inch

6шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

11

19-115

LOCK WASHER,1/4"

1/4"

6шт.

14

60-1880T1

STUD

- ground

1шт.

15

32-343

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

16

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

4шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 3/8 inch NC

14шт.

18

20-2459T1

CABLE

- battery

2шт.

19

20-2094T2

CABLE

- battery

2шт.

20

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- harness, retaining

6шт.

21

32-161

COLLAR CLAMP

CLAMP - harness, retaining

4шт.

22

20-2456T1

CABLE

- battery

1шт.

23

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

24

20-2457T1

CABLE

- battery

1шт.

25

70-4175T1

ANGLE

BRACKET - angle

3шт.

26

1-1946

TRUSS ROD

ROD - battery, retaining

3шт.

27

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

3шт.

28

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 1/16 inch

6шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

6шт.

30

REF

INSTRUCTION

STARTER - engine, See Figures 4-34 and 4-36

1шт.

31

22-33

CABLE

- starter, ground

1шт.

32

19-517

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, external tooth, 5/8 inch

1шт.

33

25711R1

WASHER

- flat, 5/8 x 1-5/16 x 1/16 inch

1шт.

34

19-119

LOCK WASHER,1/2"

1/2"

1шт.

35

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

36

20-2424T1

BOOT

- cable end

1шт.

37

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

40

60-4661T1

COVER

- cab power supply

1шт.

41

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

42

19-105

WASHER,1/4", SAE

- flat, 1/4 x 3/4 x 1/16 inch

4шт.
