(4-08) - OVERHEAD CAB HARNESS, ROPS

Запчасти Case IH 9170 (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

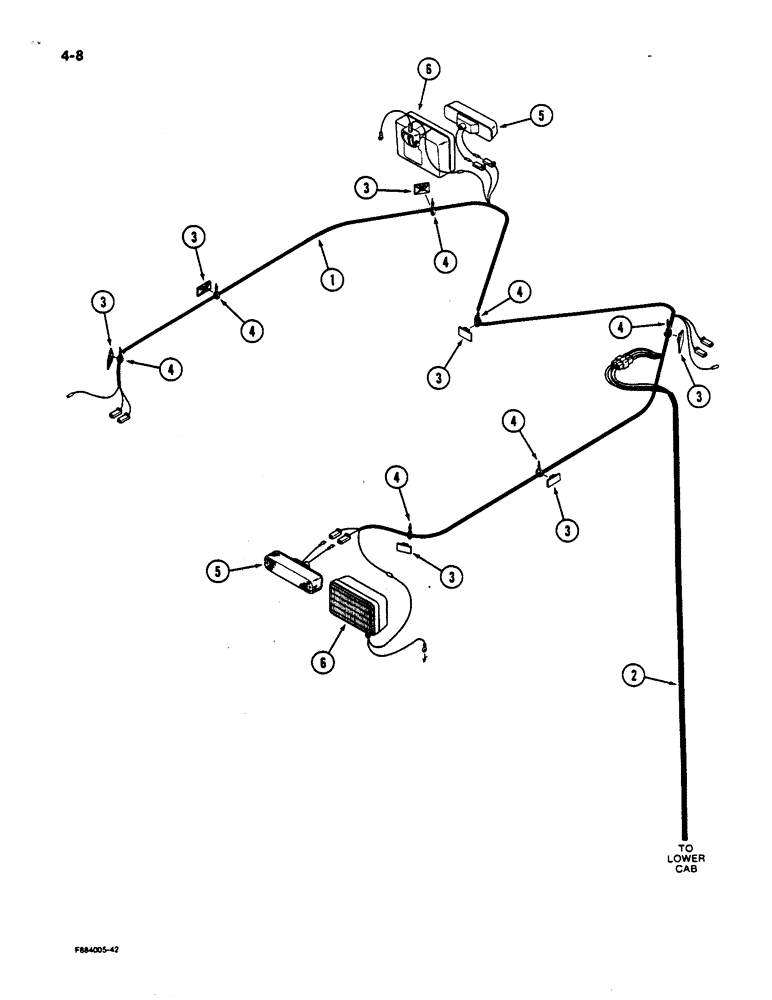

Схема запчастей Case IH 9170 - (4-08) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS
3
3
3
4
1
6
3
2
4
5
3
4
5
4
4
3
3
6
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

20-2476T1

HARNESS

- main cab, See Figure 4-04

1шт.

3

22-823

MOUNT

MOUNT - adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning, See Figure 4-42

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field, See Figure 4-42

4шт.

Выбрано товаров: 6
