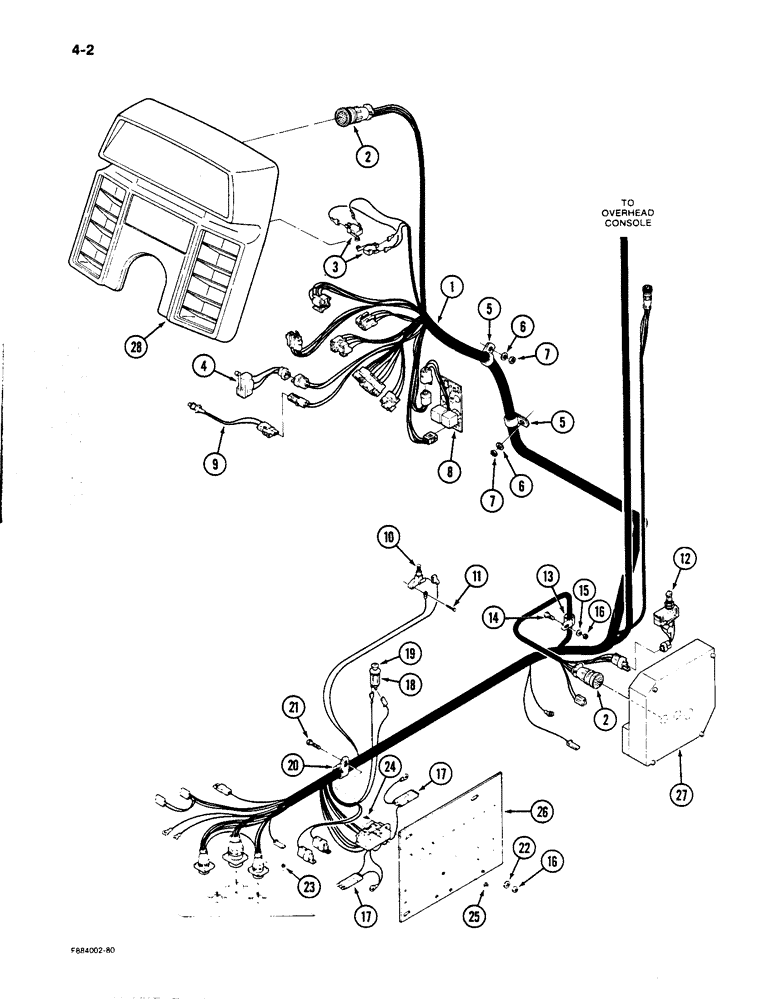

Запчасти Case IH 9170 (4-02) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
20-2449T1
HARNESS
ASSEMBLY - main cab
1шт.
2
60-6128T1
CONNECTION
LOCK RING - connector
2шт.
3
20-1976T1
IGNITION SWITCH
SWITCH - micro, fan or compressor clutch, See Figure 9-094
2шт.
4
20-2333T1
SWITCH
- micro, clutch (Also order 60-2666T1 wire), See Figure 6-44
1шт.
5
1-2667
CLAMP
- retaining, harness
2шт.
6
19-224
WASHER,3/8", SAE
- flat, 3/8 x 1 x 1/16 inch
3шт.
7
232-4136
LOCK NUT,3/8"-16, GC
NUT - lock, 3/8 inch NC
3шт.
8
REF
INSTRUCTION
FLASHER ASSEMBLY - time base, See Figure 4-63
1шт.
9
60-6027T1
SENSOR
- proximity, See Figure 6-44
1шт.
10
20-2316T1
SWITCH
- park brake, See Figure 7-04
1шт.
11
19-6216
SCREW - tapping, flanged head, No. 8 NC x 1 inch
1шт.
12
20-2050T2
IGNITION SWITCH
SWITCH - mode lever (Prior to P.I.N. JCB0002116), See Figure 6-35
1шт.
12
60-6059T91
IGNITION SWITCH
SWITCH - mode lever (P.I.N. JCB0002116 and After), See Figure 6-41
1шт.
13
32-161
COLLAR CLAMP
CLAMP - retaining, harness
1шт.
14
19-1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
1шт.
15
19-105
WASHER,1/4", SAE
- flat, 1/4 x 3/4 x 1/16 inch
1шт.
16
280129
NUT,1/4"-20
NUT - lock, 1/4 inch NF
2шт.
18
20-2237T1
CONTAINER
RECEPTICLE - cigar lighter
1шт.
19
22-727
KNOB
LIGHTER - cigar, knob and plug
1шт.
20
31-1348
CLAMP
- retaining, harness
1шт.
21
19-2
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
1шт.
22
19-223
WASHER,1/4"
- flat, 1/4 x 3/4 x 1/16 inch
1шт.
23
19-5564
LOCK NUT,#6-32, GB
NUT - lock, No. 6 NC
12шт.
24
182-520
SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"
- machine, pan head, No. 10 NF x 1/2 inch
2шт.
25
19-481
SERRATED NUT
- keps, No. 10 NF
2шт.
26
REF
INSTRUCTION
PLATE - instrumentation, See Figure 4-12
1шт.
27
REF
INSTRUCTION
CONTROLLER ASSEMBLY - transmission, See Figures 6-33 and 6-39
1шт.
28
REF
INSTRUCTION
DASH ASSEMBLY - instrument, See Figures 4-27 and 9-75
1шт.
