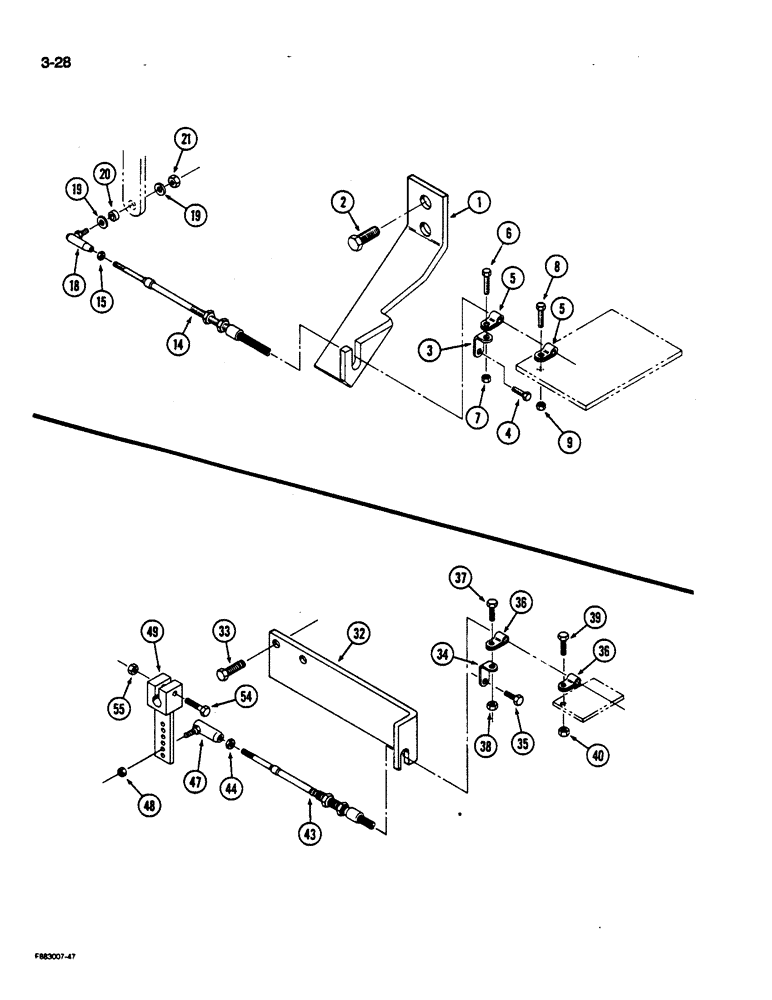

Запчасти Case IH 9170 (3-28) - FUEL THROTTLE CONTROLS, ENGINE ATTACHING, 855 ENGINES (03) - FUEL SYSTEM

1

90-6777T2

SUPPORT

BRACKET - throttle cable

1шт.

2

19-683

BOLT,Hex, 9/16" - 18 x 1", Gr 5, Full Thd

- hex, 9/16 NF x 1 inch

2шт.

3

90-5994T1

SUPPORT

BRACKET - mounting, cable clamp

1шт.

4

9423155

BOLT,7/16" - 14 x 3/4", Gr 8

- hex, 7/16 NC x 3/4 inch, Grade 8

1шт.

5

155850H1

CLAMP,3/8", 1/4" Bolt

- cable

2шт.

6

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

9

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

60-5759T1

CABLE

- throttle, Includes: Ref. 15

1шт.

15

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

18

A75447

BALL JOINT

- throttle

1шт.

19

19-699

WASHER,3/16"

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

20

90-4150T1

BUSHING

- pivot

1шт.

21

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

32

90-6776T1

BRACKET

- throttle cable, controls, engine attaching, 3406

1шт.

33

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8, throttle controls, engine attaching, 3406

2шт.

34

90-5994T1

SUPPORT

BRACKET - mounting, cable clamp, throttle controls, engine attaching, 3406

1шт.

35

24848R1

BOLT,Hex, 7/16" - 14 x 3/4", Gr 8

Hex, 7/16"-14 x 3/4", G8, Throttle controls, engine attaching, 3406

1шт.

36

155850H1

CLAMP,3/8", 1/4" Bolt

- cable, throttle controls, engine attaching, 3406

2шт.

37

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch, throttle controls, engine attaching, 3406

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Throttle controls, engine attaching, 3406 3/8"-16, G5

1шт.

39

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, throttle controls, engine attaching, 3406

1шт.

40

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC, throttle controls, engine attaching, 3406

1шт.

43

60-5759T1

CABLE

- , throttle controls, engine attaching, 3406, Includes: Ref. 44

1шт.

44

19-308

NUT,#10 - 32

- hex, No. 10 NF, throttle controls, engine attaching, 3406

1шт.

47

A75447

BALL JOINT

-, throttle controls, engine attaching, 3406

1шт.

48

19-308

NUT,#10 - 32

- hex, No. 10 NF, throttle controls, engine attaching, 3406

1шт.

49

60-3085T1

ARM

LEVER - , throttle controls, engine attaching, 3406

1шт.

54

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch, throttle controls, engine attaching, 3406

1шт.

55

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, throttle controls, engine attaching, 3406

1шт.
