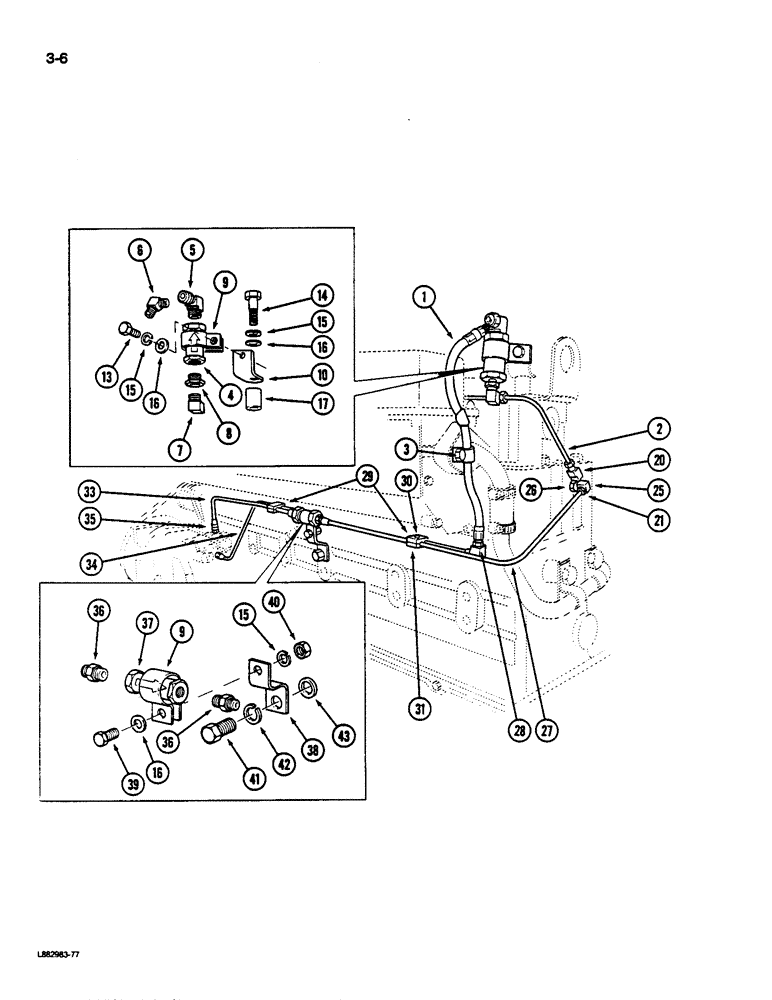

Запчасти Case IH 9170 (3-06) - FUEL SYSTEM, 855 ENGINE (03) - FUEL SYSTEM

1

A71093

HOSE ASSY.

HOSE flexible

1шт.

This part must be ordered from J.I. Case.

1шт.

2

3010755

SUPPORT TUBE

TUBE - fuel drain

1шт.

3

A77508

CLAMP

tube

1шт.

This part must be ordered from J.I. Case.

1шт.

4

NLS

NO LONGER SERVICED

VALVE - check

1шт.

5

203071

ELBOW

- adapter, male

1шт.

6

A77512

ELBOW

adapter, male

1шт.

This part must be ordered from J.I. Case.

1шт.

7

185347

ELBOW

- adapter

1шт.

8

S964

BUSHING

- reducing

1шт.

9

107460

CLIP

CLAMP - hose mounting

2шт.

10

101476

SUPPORT

BRACE - tube

1шт.

13

S117

CAP

BOLT - hex

1шт.

14

S104

BOLT

BOLT - hex

1шт.

15

S604

WASHER, LOCK

WASHER - lock

3шт.

16

S602

WASHER

- flat

3шт.

17

145782

SPACER

- tube brace

1шт.

20

181213

ELBOW

- adapter

1шт.

21

68606

PLUG

- pipe

1шт.

25

S1049

TEE

- adapter, female

1шт.

26

139969

HARDWARE

NIPPLE - hex

1шт.

27

3033005

SUPPORT TUBE

TUBE - fuel supply

1шт.

28

S1031

ELBOW

- adapter, female

1шт.

29

3007025

CLAMP - tube

4шт.

30

S1315

CAP

SCREW - pan head

2шт.

31

S251

NUT

- hex

2шт.

33

3033013

SUPPORT TUBE

TUBE - fuel supply

1шт.

34

3038028

SPARE PART

- fuel bypass

1шт.

35

116935

SPARE PART

CONNECTOR - straight

1шт.

36

3032872

UNION

CONNECTOR - male

2шт.

37

3028325

VALVE, CHECK

VALVE - check, fuel supply

1шт.

38

NLS

NO LONGER SERVICED

- tube

1шт.

39

69793

CAP

BOLT - hex

1шт.

40

A77558

JAM NUT

hex jam, 3/8 inch NF

1шт.

This part must be ordered from J.I. Case.

1шт.

41

S151-C

BOLT

BOLT - hex

1шт.

42

S609

WASHER, LOCK

WASHER - lock

1шт.

43

65434

SPACER

- mounting

1шт.
