Запчасти Case IH 9170 (2-64) - OIL PUMP, 855 ENGINE (02) - ENGINE

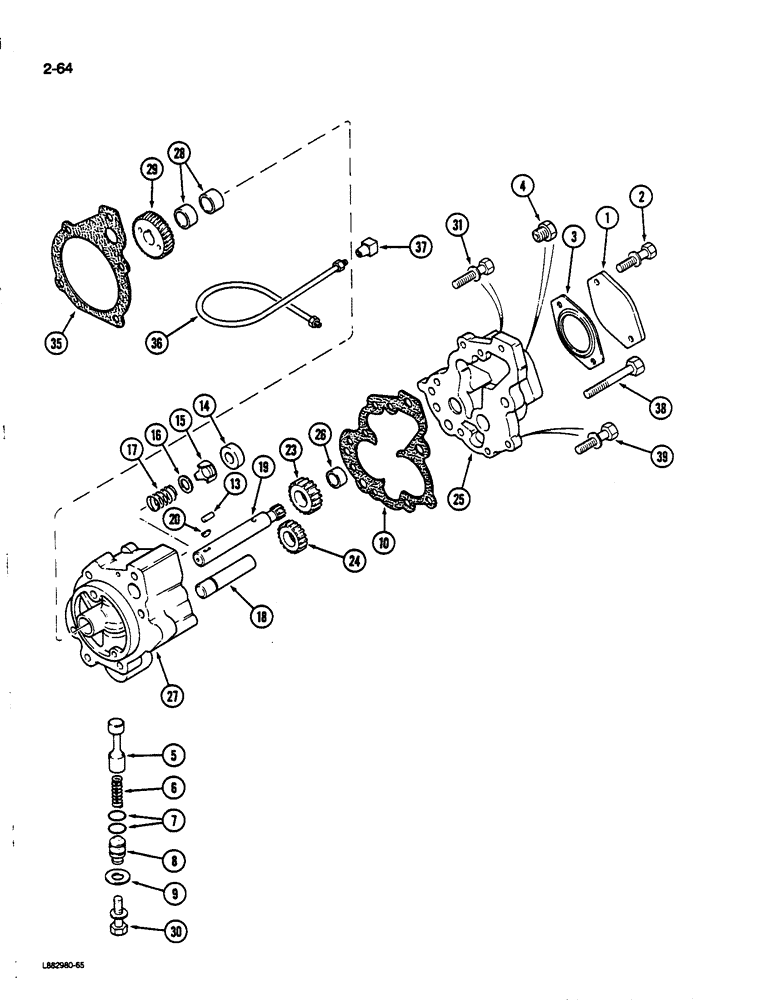

Схема запчастей Case IH 9170 - (2-64) - OIL PUMP, 855 ENGINE (02) - ENGINE
23
17
25
15
35
28
10
37
27
1
18
14
24
3
6
36
7
2
39
4
16
30
5
38
9
13
8
31
20
19
29
26

Артикул

Название

Примечание

Количество

3821579

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, Includes: Ref. 1 - 31

1шт.

1

A77509

PLATE

- cover

1шт.

This part must be ordered from J.I. Case.

1шт.

2

3010595

CAP

BOLT - hex with washer, 3/8 NC x 1 inch

2шт.

3

3004242

GASKET

- cover plate

1шт.

4

3037536

PLUG

ASSEMBLY - threaded

1шт.

5

3012529

TOGGLE

- pressure regulator

1шт.

6

3010146

SPRING

- pressure regulator

1шт.

7

NLS

NO LONGER SERVICED

O-RING - screen plug

2шт.

8

3012726

SPARE PART

- retainer

1шт.

9

146161

WASHER

- flat

1шт.

10

3014778

GASKET

- pump cover

1шт.

NSS

NOT SOLD SEPARAT

PUMP - engine oil, Includes: Ref. 13 - 31

1шт.

13

69519

DOWEL

PIN - dowel

1шт.

14

179063

PLUG

- retainer

1шт.

15

3014755

DISC

- valve

1шт.

16

3014754

WASHER

- flat

1шт.

17

3014756

SPRING

- bypass valve

1шт.

18

3012531

SPARE PART

- idler

1шт.

19

3012532

DRIVE SHAFT

SHAFT - oil pump

1шт.

20

183695

KEY

- Woodruff

1шт.

23

3045617

GEAR

- oil pump

1шт.

24

3045622

GEAR

- oil pump

1шт.

25

3014964

COVER

- oil pump, Includes: Ref. 26

1шт.

26

69521

SOFTWARE

- shaft

1шт.

27

3821577

BODY

- oil pump, Includes: Ref. 28

1шт.

28

NLS

NO LONGER SERVICED

- shaft

2шт.

29

204832

GEAR

- oil pump

1шт.

30

3022589

CAP

BOLT - hex with washer, 5/16 NC x 5/8 inch

1шт.

31

3022590

CAP

BOLT - hex with washer, 5/16 NC x 1 inch

7шт.

35

3031434

GASKET

- oil pump

1шт.

36

3044849

TUBE

- pressure sensing

1шт.

37

3044854

ELBOW

- adapter

2шт.

38

S142-A

BOLT

BOLT - hex with washer, 7/16 NF x 4-1/2 inch

2шт.

39

3034526

SPARE PART

BOLT - hex with washer, 7/16 NF x 1-3/4 inch

2шт.

Выбрано товаров: 35
