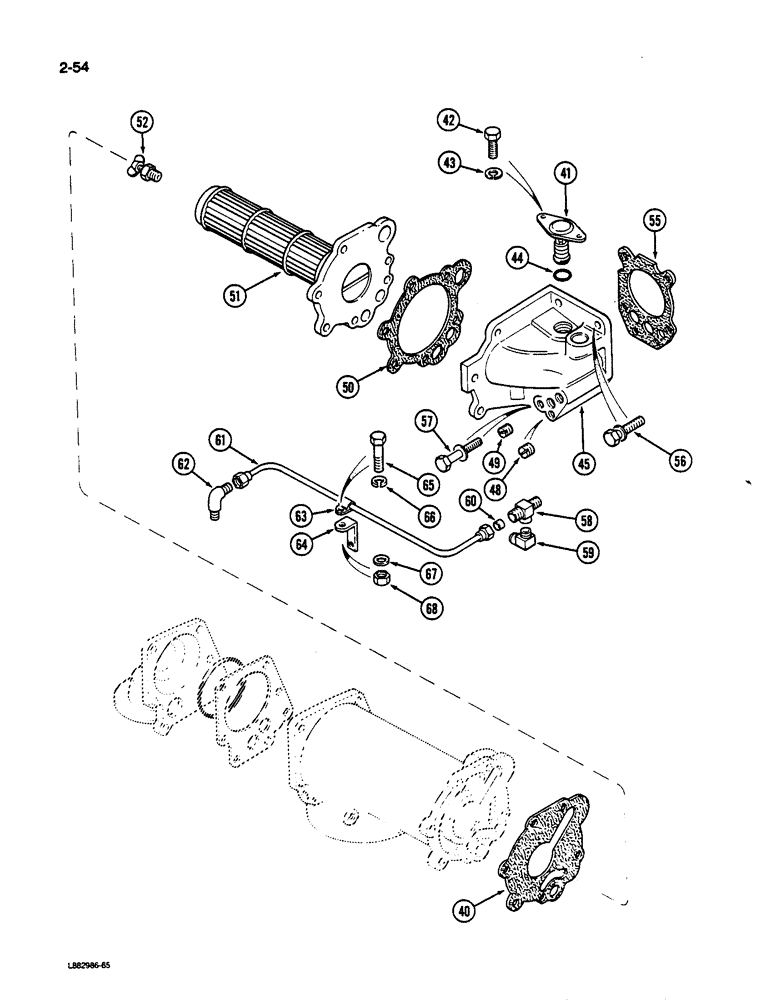

Запчасти Case IH 9170 (2-54) - OIL COOLER AND FILTER, 855 ENGINE (CONTD) (02) - ENGINE

3053392

COOLER, OIL

COOLER ASSEMBLY - oil, Includes: Ref. 40 - 52 and 5 - 38 on Figure 2-52

1шт.

40

3047465

GASKET

- cooler housing

1шт.

Part of the Oil Cooler Seal Kit P/N 3801199.

1шт.

41

3023512

BY-PASS VALVE

VALVE - bypass

1шт.

42

S117

CAP

BOLT - hex, 3/8 NC x 3/4 inch

2шт.

43

S604

WASHER, LOCK

WASHER - lock, 3/8 inch

2шт.

44

3045979

RING

SEAL - bypass valve

1шт.

Part of the Oil Cooler Seal Kit P/N 3801199.

1шт.

45

3027460

SUPPORT

- oil cooler

1шт.

48

3013786

HOSE

- pipe, 3/8 inch

1шт.

49

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

This part must be ordered from J.I. Case.

1шт.

50

3047464

GASKET

- cooler cover

1шт.

Part of the Oil Cooler Seal Kit P/N 3801199.

1шт.

51

3045483

CORE

- cooler

1шт.

52

214345

MAKING-UP

VALVE - drain

1шт.

55

3031858

GASKET

- oil cooler support

1шт.

Part of the Oil Cooler Seal Kit P/N 3801199.

1шт.

56

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

- hex, 3/8 NC x 1-1/4 inch

3шт.

This part must be ordered from J.I. Case.

1шт.

57

3010597

CAP

BOLT - hex with washer, 3/8 NC x 3-3/4 inch

3шт.

58

3818101

TEE

- lube oil bypass

1шт.

59

S1040-A

ELBOW

- male adapter

1шт.

60

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

This part must be ordered from J.I. Case.

1шт.

61

3037052

TUBE

- oil bypass

2шт.

62

68645

ELBOW

- adapter, male

1шт.

63

A77508

CLAMP

- tube

1шт.

This part must be ordered from J.I. Case.

1шт.

64

109895

SUPPORT

BRACKET - tube

1шт.

65

S117

CAP

BOLT - hex, 3/8 NF x 3/4 inch

1шт.

66

S604

WASHER, LOCK

WASHER - lock, 3/8 inch

1шт.

67

S602

WASHER

- flat

1шт.

68

NLS

NO LONGER SERVICED

- heavy hex, 3/8 inch NF

1шт.

3801199

KIT

SEAL KIT oil cooler, Includes: Ref. 2, 6, 7, 25, 30, 31 on Figure 2-52 and 40, 44, 50 and 55

1шт.
