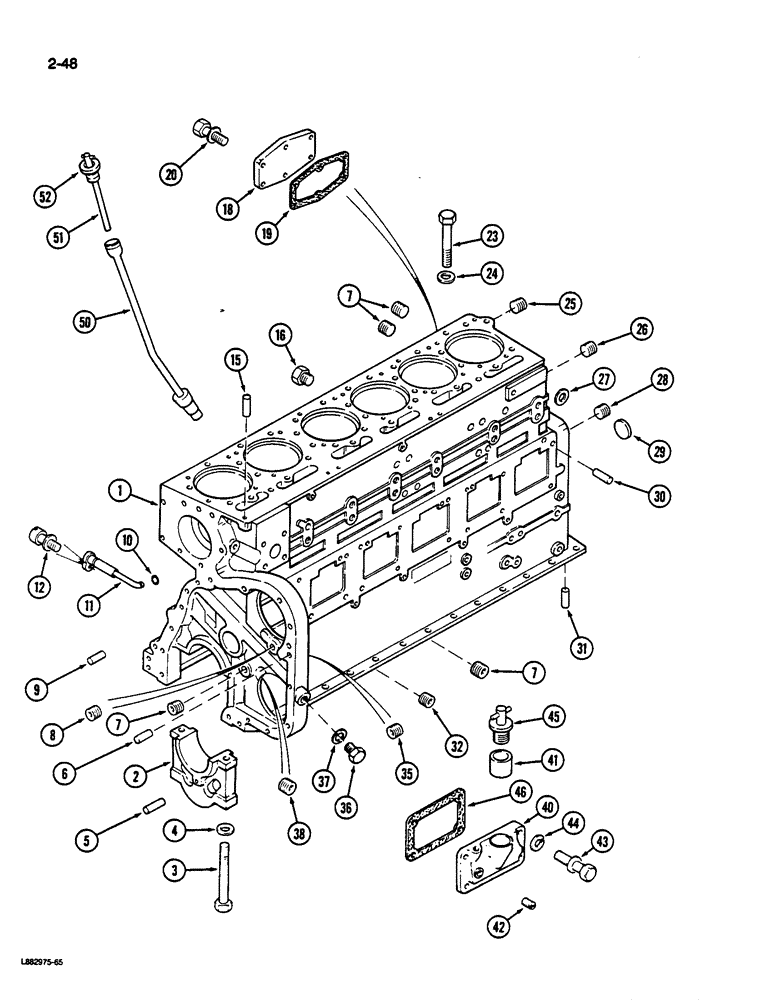

Запчасти Case IH 9170 (2-48) - CYLINDER BLOCK, 855 ENGINE (02) - ENGINE

3801743

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 1 - 38 and camshaft bushings

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

2

3008047

SPARE PART

- main bearing, No.1, 3 and 5

3шт.

2

3008048

SPARE PART

- main bearing, No. 2, 4 and 6

3шт.

2

NLS

NO LONGER SERVICED

CAP - main bearing, No.7

1шт.

3

208346

SCREW

BOLT - hex, 3/4 NF x 6-5/8 inch

14шт.

4

3046246

WASHER

- flat

14шт.

5

202903

X

PIN - roll

2шт.

6

70653

DOWEL

PIN - dowel

1шт.

7

3013786

HOSE

- pipe, 3/8 inch

5шт.

8

S911-B

PLUG

- pipe, 1/8-27 NPT

2шт.

9

60408

DOWEL

PIN - dowel

3шт.

3014404

NOZZLE INJECTION

NOZZLE ASSEMBLY - oil cooling piston, Includes: Ref. 10 - 12

6шт.

10

3007442

RING

SEAL - nozzle

1шт.

11

3013591

NOZZLE INJECTION

NOZZLE - piston cooling

1шт.

12

3033822

CAP

BOLT - hex with washer, 5/16 NF x 5/8 inch

1шт.

15

68445

PIN, GROOVED

PIN - grooved

6шт.

16

3046202

PLUG

- pipe

1шт.

17

69901

PLUG

- pipe, 1/8 inch

7шт.

18

132019

COVER

- water header

1шт.

19

70089-1

GASKET

- cover plate

1шт.

20

3013904

CAP

BOLT - hex with washer, 1/4 NC x 5/8 inch

6шт.

23

3013623

CAP

BOLT - hex, 11/16-16 x 7-3/8 inch

36шт.

24

69699

BEARING CONE

- flat

36шт.

25

S966-E

PLUG

- pipe, 1 inch

1шт.

26

S719

PLUG

- expansion, 1 inch

1шт.

27

S679

WASHER

- flat

1шт.

28

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

2шт.

This part must be ordered from J.I. Case.

1шт.

29

3011952

PLUG

- expansion

1шт.

30

68585

DOWEL

PIN - dowel

6шт.

31

67211

DOWEL

PIN - dowel, rear main

2шт.

32

S716

PLUG

- expansion

2шт.

35

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

1шт.

This part must be ordered from J.I. Case.

1шт.

36

210884

PLUG

- threaded

1шт.

37

NLS

NO LONGER SERVICED

- flat

1шт.

38

A77429

PLUG

- hex socket pipe, 1/2-14 PT

5шт.

This part must be ordered from J.I. Case.

1шт.

3037419

COVER

ASSEMBLY - hand hole, Includes: Ref. 40 - 42

1шт.

40

3037381

COVER

- hand hole

1шт.

41

65527

TUBE

- oil filler

1шт.

42

3027232

PLUG

- pipe

1шт.

43

3010595

CAP

BOLT - hex with washer, 3/8 NC x 1 inch

4шт.

44

S602

WASHER

- flat

4шт.

45

251449DS

LANDSIDE

CAP - filler

1шт.

50

101814

TUBE

- dipstick

1шт.

51

199445

- oil level

1шт.

52

3035198

CAP

- dipstick

1шт.
