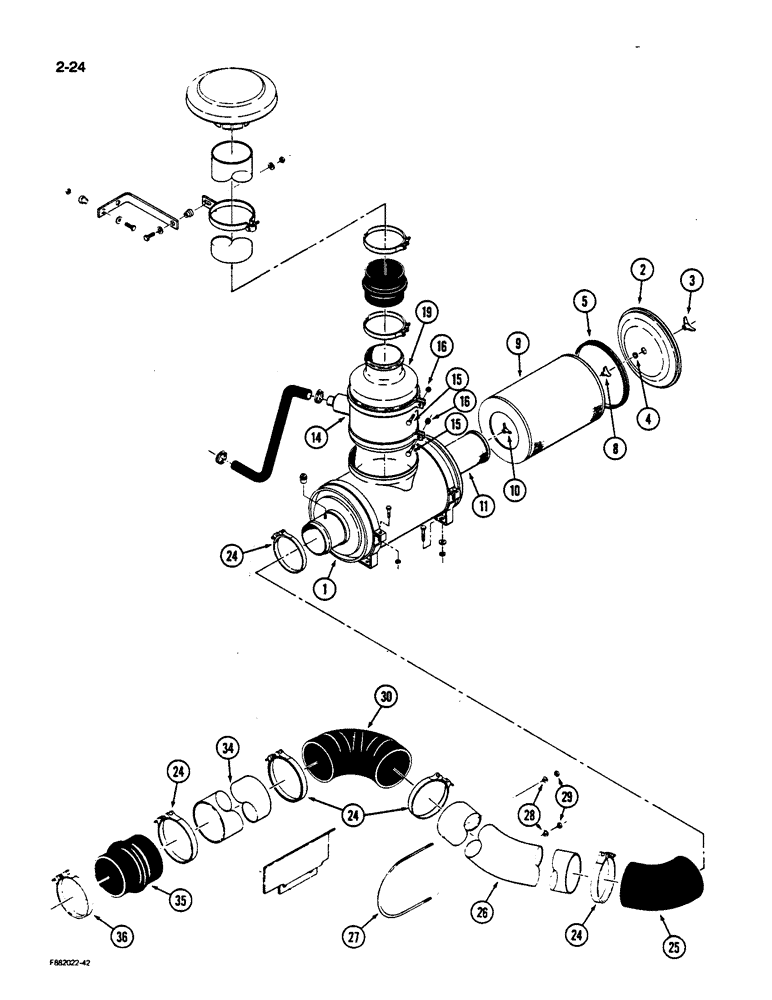

Запчасти Case IH 9170 (2-24) - AIR INDUCTION SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
90-3845T91
AIR CLEANER
ASSEMBLY - engine, Includes: Ref. 1 - 19
1шт.
90-4206T91
AIR CLEANER
ASSEMBLY - body, Includes: Ref. 1 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - air cleaner housing
1шт.
90-4205T91
COVER
ASSEMBLY - air cleaner, Includes: Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
COVER - air cleaner
1шт.
3
90-4230T1
NUT
- wing, cover
1шт.
4
90-4231T1
CLIP,ELECTRICAL
RETAINER - wing nut
1шт.
5
90-4232T1
GASKET
- cover to air cleaner body
1шт.
8
45-218
NUT
- wing, primary element
1шт.
9
90-4203T1
ELEMENT
- primary (1000 hour change interval)
1шт.
10
7-1006
NUT
- wing, secondary element
1шт.
11
90-4204T1
AIR CLEANER
ELEMENT - secondary
1шт.
14
90-4207T1
PRECLEANER
ASSEMBLY - engine, Includes: Ref. 15 & 16
1шт.
15
19-21
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8 NC x 2 inch
2шт.
16
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
19
90-4208T1
ADAPTER
- intake reducer (Replaces 60-4208T1)
1шт.
24
32-129
CLAMP,#172, 6.25"-6.56", T-Bolt
- hose, 6-1/4 to 6-9/16 inch
5шт.
25
90-6892T1
ELBOW
- 70 degree, 6 inch
1шт.
26
90-6893T1
TUBE,6 mm OD x 41.96, 11.03 mm L
- air induction
1шт.
27
44-13
U-BOLT,5/16" - 18 x 7.29"
BOLT - U, tube mounting
1шт.
28
19-106
WASHER,5/16", SAE
- flat, 5/16 x 7/8 x 1/16 inch
2шт.
29
19-508
LOCK NUT
- hex, lock, 5/16 inch NC
2шт.
30
9-22
ELBOW
- 90 degree, 6 inch
1шт.
34
90-6895T1
AIR INTAKE TUBE,6" OD x 15.25" L
TUBE - air induction, 855 engine, 6 x 15-1/4 inch
1шт.
34
90-6891T1
TUBE,6" OD x 12.5" L
- air induction, 3406 engine, 6 x 12-1/2 inch
1шт.
35
9-76
HOSE,6.00" ID x 6.00"
Coupling, 855 Engine 6.00" ID x 6.00"
1шт.
35
9-17
ADAPTER
HOSE - coupling, 3406 engine
1шт.
36
32-133
CLAMP,#156, 5.75"-6.06", T-Bolt
- hose, 5-3/4 to 6 inch
1шт.
36
32-129
CLAMP,#172, 6.25"-6.56", T-Bolt
- hose, 6-1/4 to 6-9/16 inch
1шт.
Выбрано товаров: 30
